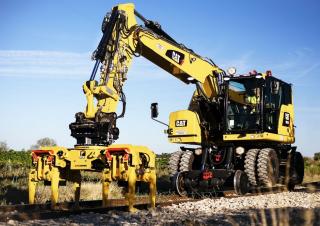

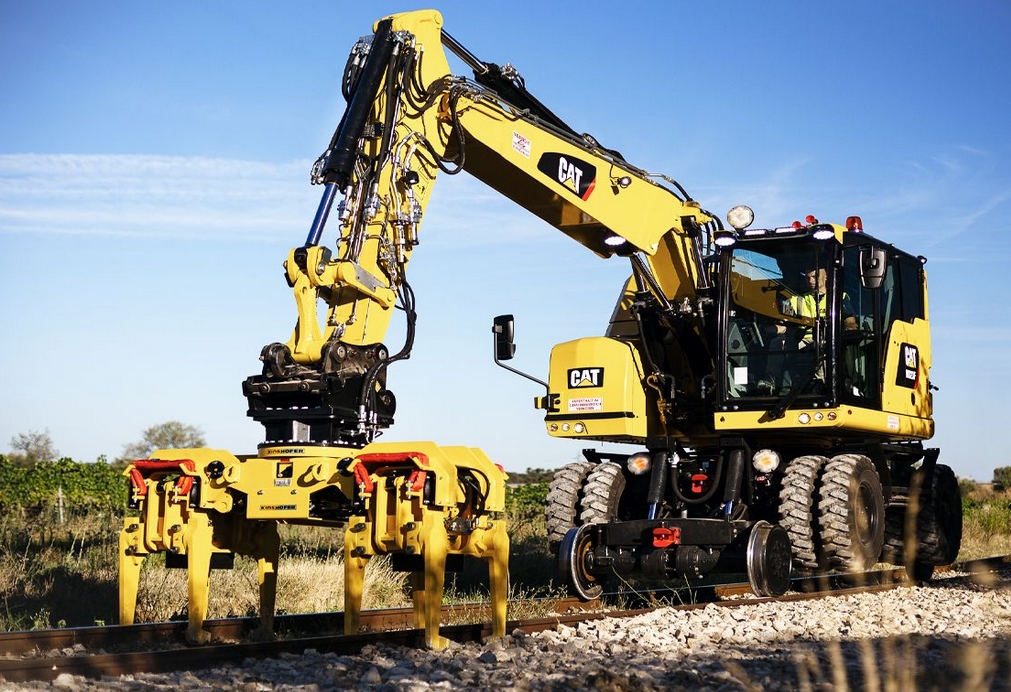

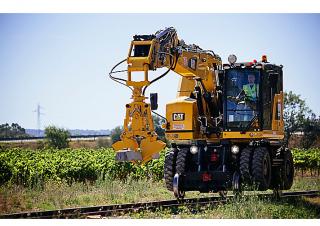

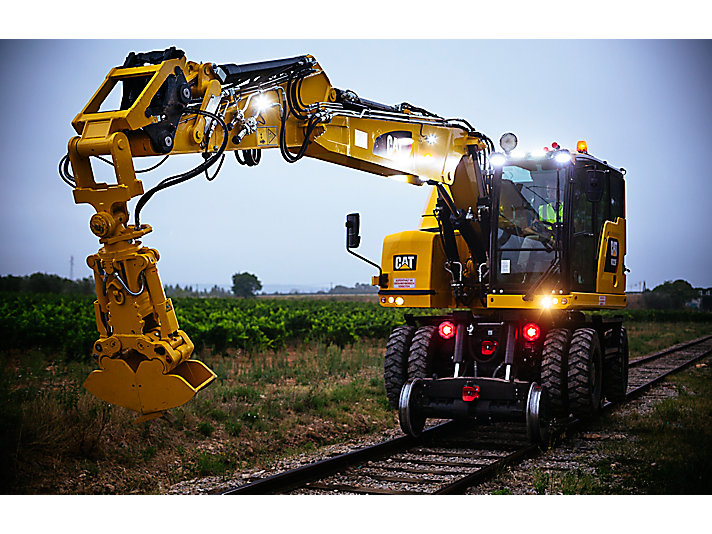

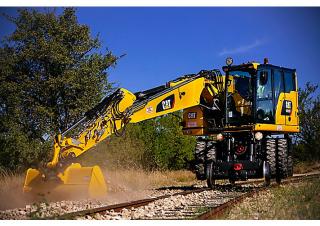

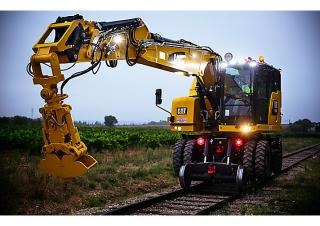

M323F Caterpillar Excavator Specs & Dimensions - (2020 - 2025)

Weight: 23.9t – Standard tyres: 10.00-20 – Bucket capacity: 0.8m³ – Boom: VA – Transport length: 6.797m – Transport width: 3.101m…

Weight: 23.9t – Standard tyres: 10.00-20 – Bucket capacity: 0.8m³ – Boom: VA – Transport length: 6.797m – Transport width: 3.101m

Check out detailed dimensions, specifications, information and technical data for Caterpillar M323F excavator manufactured between 2020 - 2025. Get more in-depth insight with Caterpillar M323F digger specifications. See information, like: Weight: 23.9t – Standard tyres: 10.00-20 – Bucket capacity: 0.8m³ – Boom: VA – Transport length: 6.797m – Transport width: 3.101m and more.

M323F

Years of manufacture: 2020—2025

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - M323F Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 23.9 t

Standard tyres: 10.00-20

Bucket capacity: 0.8 m³

Boom: VA

Transport length: 6.797 m

Transport width: 3.101 m

Transport height: 3.932 m

Max. Reach horizontal: 9.09 m

Dredging depth: 5.61 m

Tear-out force: 114 kN

Bucket width: 1.1 m

Dipper length: 2.1 m

Turning radius outside: 6.3 m

Travel speed: 20 km/h

Engine manuf.: Caterpillar

Engine type: C4.4

Engine power: 112 kW

Displacement: 4.4 l

Max. torque: 710/1400 Nm

No. of cylinders: 4

Cylinder bore x stroke: 105x127 mm

Emission level: EU V

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, turning radius inside, model series, dimension lxwxh, revolutions at max torque are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter: No
Blade: No
Cabin adjustment: No
Overload alert: No
Material Handling Excavator: No
Track guidance: Yes
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar M323F FAQ

When was the Caterpillar M323F manufactured?

The Caterpillar M323F was manufactured from 2020 to 2025.

How much does the Caterpillar M323F weigh?

The Caterpillar M323F weighs 23.9 tons.

What are the transport dimensions of the Caterpillar M323F wheel excavator?

The Caterpillar M323F has a transport length of 6.8 meters, a transport width of 3.1 meters, and a transport height of 3.93 meters.

What is the travel speed of the Caterpillar M323F wheel excavator?

The Caterpillar M323F wheel excavator has a travel speed of 20 km/h.

What are the undercarriage specifications of the Caterpillar M323F wheel excavator?

The Caterpillar M323F wheel excavator is equipped with standard tyres sized 10.00-20.

What is the turning radius of the Caterpillar M323F wheel excavator?

The Caterpillar M323F has an outside turning radius of 6.3 meters.

What are the excavation performance specifications of the Caterpillar M323F wheel excavator?

The Caterpillar M323F wheel excavator has an adjustable boom, a dredging depth of 5.61 meters, a maximum horizontal reach of 9.09 meters, and a dipper length of 2.1 meters.

What is the tear-out force of the Caterpillar M323F wheel excavator?

The Caterpillar M323F wheel excavator has a tear-out force of 114 kN.

What are the specifications of the primary work tool bucket on the Caterpillar M323F?

The primary work tool bucket of the Caterpillar M323F has a capacity of 0.8 cubic meters and a width of 1.1 meters.
