M322F Caterpillar Excavator Specs & Dimensions - (2017 - 2021)

The M 322 F wheel excavator model is manufactured by Caterpillar. Find and download detailed specs and data sheets for this machin…

The M 322 F wheel excavator model is manufactured by Caterpillar. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 128.9kW or 172 horse power, delivered from its powerful Caterpillar engine to the 21.49t M 322 F machine. This Caterpillar wheel excavator belongs to the biggest machine segment in the wheel excavators category. The model's dimensions are 9.71m x 2.75m x 3.32m. The bucket capacity of M 322 F is 0.604m³, which is above average for this type of machine.

The Caterpillar M 322 F has been equipped and sold with Blade. It does not include Overload alert, Track guidance and Diesel particulate filter. There are more detailed specifications and machine descriptions available in the original Caterpillar M 322 F specs data sheet. Download a free data sheet in German from LECTURA Specs.

This model can be acquired for a list price between €327000 and €416000. Production of the M 322 F continues in 2017. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 19 other wheel excavators, which range from 13.7t up to 39.5t are produced by Caterpillar. Of these, M 320 F, M 318 F and also M 314 F are the most frequently visited on LECTURA Specs. This M 322 F wheel excavator, which has been in production between 2016 and 2017 ranks in the LECTURA index at #33. Want more detailed specifications? Download the latest Caterpillar M 322 F specs data sheet on LECTURA Specs today!

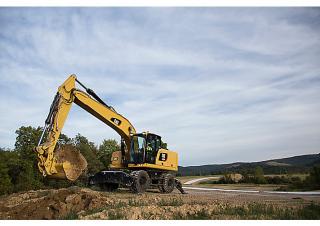

Wheel Excavators Caterpillar M322F
Wheel Excavators Caterpillar M322F
Wheel Excavators Caterpillar M322F
Wheel Excavators Caterpillar M322F

Technical specs - M322F Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.49 t
Standard tyres
11.00-20
Bucket capacity
1.19 m³
Boom
MB
Outrigger stabilisers
2 2/4-fold
Transport length
9.71 m
Transport width
2.75 m
Transport height
3.32 m
Max. Reach horizontal
9.91 m
Dredging depth
6.05 m
Tear-out force
152 kN
Bucket width
1.2 m
Travel speed
30 km/h
Engine manuf.
Caterpillar
Engine type
C7.1 Acert
Engine power
126 kW
Displacement
7.01 l
Revolutions at max torque
1400 rpm
Max. torque
830 Nm
No. of cylinders
6
Cylinder bore x stroke
105x135 mm
Emission level
Stage IV

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, number of mono booms, total number of dippers - mono, number of articulated booms, total number of dippers - articulated, dipper length - shortest articulated...

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, number of mono booms, total number of dippers - mono, number of articulated booms, total number of dippers - articulated, dipper length - shortest articulated, dipper length - longest articulated, dipper length - standard articulated, telematics available, platform, emission rating, engine manufacturer, engine model, auto idle, engine auto shut off, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, sound level standard, sound level internal, sound level external, dipper standard, boost tearout mono, dipper standard, boost tearout artic, max bucket breakout, mono boom, max bucket breakout, artic boom, dipper longest, boost tearout artic, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar M322F FAQ

When was the Caterpillar M322F manufactured?

The Caterpillar M322F was manufactured from 2017 to 2021.

How much does the Caterpillar M322F wheel excavator weigh?

The Caterpillar M322F wheel excavator weighs 21.49 tons.

What are the transport dimensions of the Caterpillar M322F wheel excavator?

The Caterpillar M322F has a transport length of 9.71 meters, a transport width of 2.75 meters, and a transport height of 3.32 meters.

What is the travel speed of the Caterpillar M322F wheel excavator?

The Caterpillar M322F wheel excavator has a travel speed of 30 km/h.

What are the undercarriage specifications of the Caterpillar M322F wheel excavator?

The Caterpillar M322F is equipped with 11.00-20 standard tyres and has 2 outrigger stabilisers.

What are the excavation performance specifications of the Caterpillar M322F wheel excavator?

The Caterpillar M322F has a dredging depth of 6.05 meters, a maximum horizontal reach of 9.91 meters, and features a Monobloc boom.

What is the tear-out force of the Caterpillar M322F wheel excavator?

The Caterpillar M322F wheel excavator has a tear-out force of 152 kN.

What are the specifications of the primary work tool on the Caterpillar M322F wheel excavator?

The primary work tool of the Caterpillar M322F wheel excavator has a bucket capacity of 1.19 cubic meters and a bucket width of 1.2 meters.
