WX240 S-2 Case Excavator Specs & Dimensions - (2008 - 2019)

Weight: 24.3t – Standard tyres: 600/400 - 22.5 – Bucket capacity min.: 0.47m³ – Bucket capacity max.: 1.85m³ – Boom: MB – Outrigge…

Weight: 24.3t – Standard tyres: 600/400 - 22.5 – Bucket capacity min.: 0.47m³ – Bucket capacity max.: 1.85m³ – Boom: MB – Outrigger stabilisers: 42/4-fold

Check out detailed dimensions, specifications, information and technical data for Case WX240 S-2 excavator manufactured between 2008 - 2019. Get more in-depth insight with Case WX240 S-2 digger specifications. See information, like: Weight: 24.3t – Standard tyres: 600/400 - 22.5 – Bucket capacity min.: 0.47m³ – Bucket capacity max.: 1.85m³ – Boom: MB – Outrigger stabilisers: 42/4-fold and more.

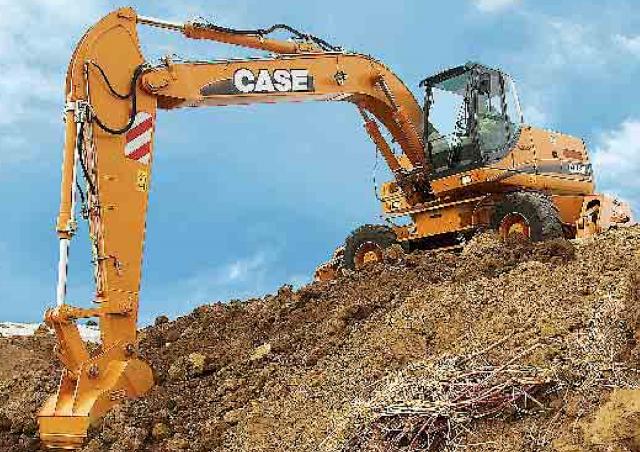

Wheel Excavators Case WX240 S-2

Technical specs - WX240 S-2 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.3 t
Standard tyres
600/400 - 22.5
Bucket capacity min.
0.47 m³
Bucket capacity max.
1.85 m³
Boom
MB
Outrigger stabilisers
4 2/4-fold
Transport length
9.68 m
Transport width
2.74 m
Transport height
3.15 m
Max. Reach horizontal
10.1 m
Dredging depth
6.4 m
Tear-out force
162.3 kN
Bucket width
1.7 m
Travel speed
25 km/h
Model series
S
Engine manuf.
Case
Engine type
667TA/MEE
Engine power
129 kW
Displacement
6.7 l
No. of cylinders
6
Cylinder bore x stroke
104x132 mm

More technical details, like: bucket capacity, dipper length, turning radius inside, turning radius outside, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case WX240 S-2 FAQ

When was the Case WX240 S-2 manufactured?

The Case WX240 S-2 was manufactured from 2008 to 2019.

How much does the Case WX240 S-2 wheel excavator weigh?

The Case WX240 S-2 wheel excavator weighs 24.3 tons.

What are the transport dimensions of the Case WX240 S-2 wheel excavator?

The Case WX240 S-2 has a transport length of 9.68 meters, a transport width of 2.74 meters, and a transport height of 3.15 meters.

What is the travel speed of the Case WX240 S-2 wheel excavator?

The Case WX240 S-2 has a travel speed of 25 km/h.

What are the undercarriage specifications of the Case WX240 S-2 wheel excavator?

The Case WX240 S-2 is equipped with standard tyres sized 600/400 - 22.5 and has 4 outrigger stabilisers.

What are the excavation performance specifications of the Case WX240 S-2 wheel excavator?

The Case WX240 S-2 has a dredging depth of 6.4 meters, a maximum horizontal reach of 10.1 meters, and features a monobloc boom.

What is the tear-out force of the Case WX240 S-2 wheel excavator?

The Case WX240 S-2 wheel excavator has a tear-out force of 162.3 kN.

What are the bucket specifications of the Case WX240 S-2 wheel excavator?

The Case WX240 S-2 has a bucket with a maximum capacity of 1.85 cubic meters, a minimum capacity of 0.47 cubic meters, and a width of 1.7 meters.

How much is a Case WX240 S-2 Wheel excavator (2008u20132019) worth?

The residual value of the Case WX240 S-2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
