WX218 Case Excavator Specs & Dimensions - (2013 - 2019)

Manufactured by case, this is the WX 218 wheel excavator. Find and download detailed specs and data sheets for this machine here. …

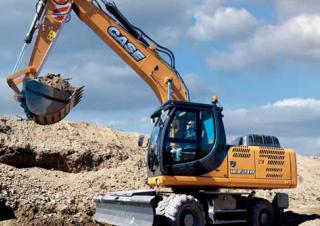

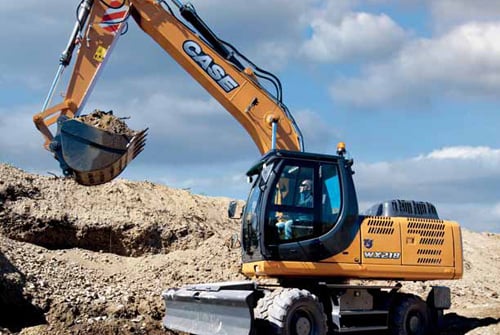

Manufactured by case, this is the WX 218 wheel excavator. Find and download detailed specs and data sheets for this machine here.

The case WX 218 is a 20.8t machine with FPT engine which powers this model with up to 129kW or 172 horse power. This case wheel excavator belongs to the biggest machine segment in the wheel excavators category. The model's dimensions are 9.68m x 2.53m x 3.2m. The bucket capacity of WX 218 is 1.09m³, which is above average for this type of machine.

The case WX 218 has been equipped and sold with Overload alert, Aircondition and Blade. It does not include Track guidance, Quick hitch hydr. And Cabin adjustment. There are more detailed specifications and machine descriptions available in the original case WX 218 specs data sheet. Available in English, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

This model can be acquired for a list price between €245000 and €311000. Production of the WX 218 continues in 2017. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed case models of this type on LECTURA Specs are the WX 148, WX 168 and WX 188, and 3 other wheel excavators, which currently range from 15.4t up to 19.2t are also available. Ranked in the LECTURA index at #64, this WX 218 wheel excavator has models that date from 2013 to 2017. Want more detailed specifications? Download the latest case WX 218 specs data sheet on LECTURA Specs today!

Wheel Excavators Case WX218

Technical specs - WX218 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.45 t
Standard tyres
10.0-20
Bucket capacity
1.09 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
9.7 m
Transport width
2.72 m
Transport height
3.2 m
Max. Reach horizontal
9.82 m
Dredging depth
5.8 m
Tear-out force
156 kN
Bucket width
1.2 m
Travel speed
35 km/h
Engine manuf.
FPT
Engine type
667 TA
Engine power
129 kW
Displacement
6.728 l
Revolutions at max torque
1200 rpm
Max. torque
745 Nm
No. of cylinders
6
Cylinder bore x stroke
104 x 132 mm
Emission level
Stage III / Tier 3

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, number of mono booms, total number of dippers - mono, number of articulated booms, total number of dippers - articulated, dipper length - shortest articulated...

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, number of mono booms, total number of dippers - mono, number of articulated booms, total number of dippers - articulated, dipper length - shortest articulated, dipper length - longest articulated, dipper length - standard articulated, telematics available, platform, emission rating, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, dipper standard, boost tearout mono, dipper standard, boost tearout artic, max bucket breakout, mono boom, max bucket breakout, artic boom, dipper short, boost tearout artic, dipper longest, boost tearout artic, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case WX218 FAQ

When was the Case WX218 manufactured?

The Case WX218 was manufactured from 2013 to 2019.

How much does the Case WX218 wheel excavator weigh?

The Case WX218 wheel excavator weighs 20.45 tons.

What are the transport dimensions of the Case WX218 wheel excavator?

The Case WX218 has a transport length of 9.7 meters, a transport width of 2.72 meters, and a transport height of 3.2 meters.

What is the travel speed of the Case WX218 wheel excavator?

The Case WX218 has a travel speed of 35 km/h.

What are the undercarriage specifications of the Case WX218 wheel excavator?

The Case WX218 wheel excavator is equipped with 10.0-20 standard tyres and has 2 outrigger stabilisers.

What are the excavation performance specifications of the Case WX218 wheel excavator?

The Case WX218 wheel excavator has a dredging depth of 5.8 meters, a maximum horizontal reach of 9.82 meters, and features an adjustable boom.

What is the tear-out force of the Case WX218 wheel excavator?

The Case WX218 wheel excavator has a tear-out force of 156 kN.

What are the bucket specifications of the Case WX218 wheel excavator?

The Case WX218 wheel excavator has a bucket capacity of 1.09 cubic meters and a bucket width of 1.2 meters.

How much is a Case WX218 Wheel excavator (2013u20132019) worth?

The residual value of the Case WX218 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
