WX210 S-2 Case Excavator Specs & Dimensions - (2008 - 2019)

Weight: 22t – Standard tyres: 600/400 - 22.5 – Bucket capacity min.: 0.45m³ – Bucket capacity max.: 1.25m³ – Boom: MB – Outrigger …

Weight: 22t – Standard tyres: 600/400 - 22.5 – Bucket capacity min.: 0.45m³ – Bucket capacity max.: 1.25m³ – Boom: MB – Outrigger stabilisers: 42/4-fold

Check out detailed dimensions, specifications, information and technical data for Case WX210 S-2 excavator manufactured between 2008 - 2019. Get more in-depth insight with Case WX210 S-2 digger specifications. See information, like: Weight: 22t – Standard tyres: 600/400 - 22.5 – Bucket capacity min.: 0.45m³ – Bucket capacity max.: 1.25m³ – Boom: MB – Outrigger stabilisers: 42/4-fold and more.

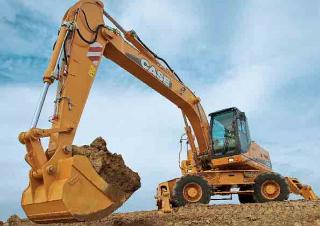

Wheel Excavators Case WX210 S-2

Technical specs - WX210 S-2 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22 t
Standard tyres
600/400 - 22.5
Bucket capacity min.
0.45 m³
Bucket capacity max.
1.25 m³
Boom
MB
Outrigger stabilisers
4 2/4-fold
Transport length
9.68 m
Transport width
2.54 m
Transport height
3.15 m
Max. Reach horizontal
10 m
Dredging depth
6.2 m
Tear-out force
145.4 kN
Bucket width
1.5 m
Travel speed
30 km/h
Model series
S
Engine manuf.
Case
Engine type
667TA/MEE
Engine power
129 kW
Displacement
6.7 l
No. of cylinders
6
Cylinder bore x stroke
104x132 mm

More technical details, like: bucket capacity, dipper length, turning radius inside, turning radius outside, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case WX210 S-2 FAQ

When was the Case WX210 S-2 manufactured?

The Case WX210 S-2 was manufactured from 2008 to 2019.

How much does the Case WX210 S-2 wheel excavator weigh?

The Case WX210 S-2 wheel excavator weighs 22 tons.

What are the transport dimensions of the Case WX210 S-2 wheel excavator?

The Case WX210 S-2 has a transport length of 9.68 meters, a transport width of 2.54 meters, and a transport height of 3.15 meters.

What is the travel speed of the Case WX210 S-2 wheel excavator?

The Case WX210 S-2 has a travel speed of 30 km/h.

What are the undercarriage specifications of the Case WX210 S-2 wheel excavator?

The Case WX210 S-2 has standard tyres sized 600/400 - 22.5 and is equipped with 4 outrigger stabilisers (2/4-fold).

What are the excavation performance specifications of the Case WX210 S-2 wheel excavator?

The Case WX210 S-2 has a dredging depth of 6.2 meters, a maximum horizontal reach of 10 meters, and features a monobloc boom.

What is the tear-out force of the Case WX210 S-2 wheel excavator?

The Case WX210 S-2 wheel excavator has a tear-out force of 145.4 kN. The source data does not provide any power ratings for this machine.

What are the bucket specifications of the Case WX210 S-2 wheel excavator?

The Case WX210 S-2 has a bucket capacity ranging from 0.45 to 1.25 cubic meters and a bucket width of 1.5 meters.

How much is a Case WX210 S-2 Wheel excavator (2008u20132019) worth?

The residual value of the Case WX210 S-2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
