WX 240 S-3 Case Excavator Specs & Dimensions - (2008 - 2014)

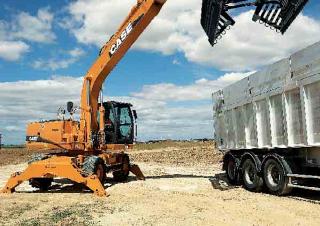

Manufactured by case, this is the WX 240 S-3 wheel excavator. Find and download detailed specs and data sheets for this machine he…

Manufactured by case, this is the WX 240 S-3 wheel excavator. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful case engine, this WX 240 S-3 21.2t machine can provide 129kW or 172 horse power for the wheel excavator. The case WX 240 S-3 can be grouped in the biggest machine segment in the wheel excavators category. The WX 240 S-3’s size is 2.74m x 9.68m x 2.42m. The bucket capacity of WX 240 S-3 is 1,4m³, which is above average for this type of machine.

The WX 240 S-3 is manufactured and distributed with Blade. Track guidance, Quick hitch mech. And Diesel particulate filter are not provided on this model as of 2014. There are more detailed specifications and machine descriptions available in the original case WX 240 S-3 specs data sheet. Download a free data sheet in English, German, Spanish, French and Italian from LECTURA Specs.

The production stopped in 2014, where this WX 240 S-3 was available at a new list price between €222000 and €282000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed case models of this type on LECTURA Specs are the WX 188, WX 168 and WX 148, and 4 other wheel excavators, which currently range from 15.4t up to 20.8t are also available. Want more detailed specifications? Download the latest case WX 240 S-3 specs data sheet on LECTURA Specs today!

Wheel Excavators Case WX 240 S-3

Technical specs - WX 240 S-3 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.2 t
Standard tyres
18-22.5XF
Bucket capacity
1.4 m³
Boom
MB
Outrigger stabilisers
2 2/4-fold
Transport length
9.68 m
Transport width
2.74 m
Transport height
2.42 m
Max. Reach horizontal
9.7 m
Dredging depth
5.8 m
Tear-out force
136.1 kN
Bucket width
1.35 m
Model series
S
Engine manuf.
Case
Engine type
667TA-MEE
Engine power
129 kW
Displacement
6.7 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms...

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, dipper standard, boost tearout mono, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case WX 240 S-3 FAQ

When was the Case WX 240 S-3 manufactured?

The Case WX 240 S-3 was manufactured from 2008 to 2014.

How much does the Case WX 240 S-3 weigh?

The Case WX 240 S-3 weighs 21.2 tons.

What are the transport dimensions of the Case WX 240 S-3 wheel excavator?

The Case WX 240 S-3 has a transport length of 9.68 meters, a transport width of 2.74 meters, and a transport height of 2.42 meters.

What are the undercarriage specifications of the Case WX 240 S-3 wheel excavator?

The Case WX 240 S-3 wheel excavator is equipped with 18-22.5XF standard tyres and has 2 outrigger stabilisers.

What are the excavation performance specifications of the Case WX 240 S-3 wheel excavator?

The Case WX 240 S-3 has a dredging depth of 5.8 meters, a maximum horizontal reach of 9.7 meters, and features a monobloc boom.

Are there any power ratings available for the Case WX 240 S-3 wheel excavator?

The source data does not provide any power ratings for the Case WX 240 S-3 wheel excavator.

What are the bucket specifications of the Case WX 240 S-3 wheel excavator?

The Case WX 240 S-3 wheel excavator has a bucket capacity of 1.4 cubic meters and a bucket width of 1.35 meters.

How much is a Case WX 240 S-3 Wheel excavator (2008u20132014) worth?

The residual value of the Case WX 240 S-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
