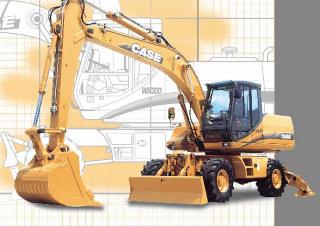

WX 200 Case Excavator Specs & Dimensions - (2003 - 2004)

case is the manufacturer of the wheel excavator model WX 200. Find and download detailed specs and data sheets for this machine he…

case is the manufacturer of the wheel excavator model WX 200. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 118kW or 158 horse power, delivered from its powerful case engine to the 21.6t WX 200 machine. This case wheel excavator belongs to the biggest machine segment in the wheel excavators category. The model's dimensions are 8.85m x 2.51m x 3.37m. The bucket capacity of WX 200 is 1,05m³, which is above average for this type of machine.

The case WX 200 has been equipped and sold with Overload alert and Blade. It has been sold without air Quick hitch hydr., Diesel particulate filter and Material Handling Excavator as of 2004. There are more detailed specifications and machine descriptions available in the original case WX 200 specs data sheet. You can download it for free in German on LECTURA Specs.

The production stopped in 2004, where this WX 200 was available at a new list price between €154000 and €196000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Case currently produces 4 other wheel excavators, which range from 15.4t up to 20.8t - the most visited on LECTURA Specs are WX 148, WX 188, WX 168. Want more detailed specifications? Download the latest case WX 200 specs data sheet on LECTURA Specs today!

Wheel Excavators Case WX 200

Technical specs - WX 200 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.6 t
Standard tyres
11.00x20
Bucket capacity
1.05 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
8.85 m
Transport width
2.51 m
Transport height
3.37 m
Max. Reach horizontal
9.8 m
Dredging depth
5.65 m
Tear-out force
78 kN
Bucket width
1.33 m
Engine manuf.
Case
Engine type
659TA-M2
Engine power
118 kW
Displacement
5.9 l
Revolutions at max torque
2150 rpm

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, travel speed, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level...

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, travel speed, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, engine manufacturer, engine model, rated speed, engine output - net, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, slew speed, dipper standard, boost tearout mono, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case WX 200 FAQ

When was the Case WX 200 manufactured?

The Case WX 200 was manufactured from 2003 to 2004.

How much does the Case WX 200 wheel excavator weigh?

The Case WX 200 wheel excavator weighs 21.6 tons.

What are the transport dimensions of the Case WX 200 wheel excavator?

The Case WX 200 has a transport length of 8.85 meters, a transport width of 2.51 meters, and a transport height of 3.37 meters.

What are the undercarriage specifications of the Case WX 200 wheel excavator?

The Case WX 200 is equipped with 11.00x20 standard tyres and has 2 outrigger stabilisers.

What are the excavation performance specifications of the Case WX 200 wheel excavator?

The Case WX 200 has an adjustable boom, a dredging depth of 5.65 meters, and a maximum horizontal reach of 9.8 meters.

What is the tear-out force of the Case WX 200 wheel excavator?

The Case WX 200 wheel excavator has a tear-out force of 78 kN.

What are the specifications of the primary work tool on the Case WX 200 wheel excavator?

The primary work tool of the Case WX 200 wheel excavator has a bucket capacity of 1.05 cubic meters and a bucket width of 1.33 meters.
