1285 Case Excavator Specs & Dimensions - (1983 - 2019)

Weight: 20.14t – Standard tyres: 17 .5 x 25 L2 – Transport length: 9.05m – Transport width: 1.98m – Transport height: 3.96m – Max.…

Weight: 20.14t – Standard tyres: 17 .5 x 25 L2 – Transport length: 9.05m – Transport width: 1.98m – Transport height: 3.96m – Max. Reach horizontal: 9.09m

Check out detailed dimensions, specifications, information and technical data for Case 1285 excavator manufactured between 1983 - 2019. Get more in-depth insight with Case 1285 digger specifications. See information, like: Weight: 20.14t – Standard tyres: 17 .5 x 25 L2 – Transport length: 9.05m – Transport width: 1.98m – Transport height: 3.96m – Max. Reach horizontal: 9.09m and more.

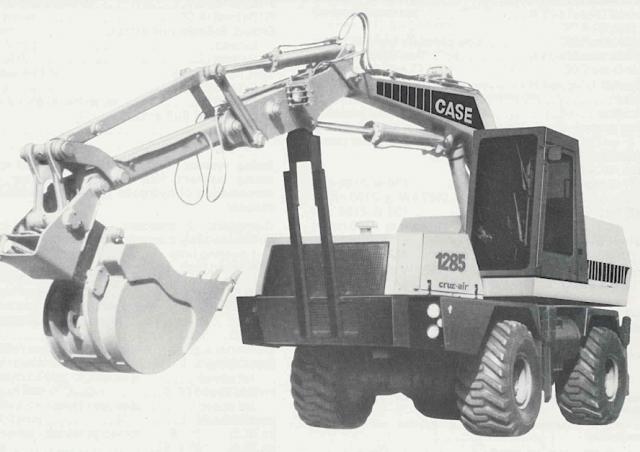

Wheel Excavators Case 1285

Technical specs - 1285 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.14 t
Standard tyres
17 .5 x 25 L2
Transport length
9.05 m
Transport width
1.98 m
Transport height
3.96 m
Max. Reach horizontal
9.09 m
Dredging depth
5.98 m
Turning radius inside
6.93 m
Turning radius outside
9.65 m
Travel speed
48 km/h
Engine manuf.
Detroit
Engine type
4-53N
Engine power
92 kW
Displacement
3.47 l
Max. torque
382 Nm
No. of cylinders
4
Cylinder bore x stroke
98x114 mm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., boom, outrigger stabilisers, tear-out force, bucket width, dipper length, model series, dimension lxwxh, revolutions at max torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case 1285 FAQ

When was the Case 1285 wheel excavator manufactured?

The Case 1285 wheel excavator was manufactured from 1983 to 2019.

How much does the Case 1285 wheel excavator weigh?

The Case 1285 wheel excavator weighs 20.14 tons.

What are the transport dimensions of the Case 1285 wheel excavator?

The Case 1285 wheel excavator has a transport length of 9.05 meters, a transport width of 1.98 meters, and a transport height of 3.96 meters.

What is the travel speed of the Case 1285 wheel excavator?

The Case 1285 wheel excavator has a travel speed of 48 km/h.

What are the undercarriage specifications of the Case 1285?

The Case 1285 is equipped with standard tyres sized 17.5 x 25 L2.

What are the outside and inside turning radius measurements of the Case 1285 wheel excavator?

The Case 1285 wheel excavator has an outside turning radius of 9.65 meters and an inside turning radius of 6.93 meters.

What are the excavation performance specifications of the Case 1285 wheel excavator?

The Case 1285 wheel excavator has a dredging depth of 5.98 meters and a maximum horizontal reach of 9.09 meters.

How much is a Case 1285 Wheel excavator (1983u20132019) worth?

The residual value of the Case 1285 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
