1085C Case Excavator Specs & Dimensions - (1991 - 2019)

Weight: 24.3t – Standard tyres: 18-22.5 XF – Bucket capacity min.: 0.47m³ – Bucket capacity max.: 1.85m³ – Transport length: 9.68m…

Weight: 24.3t – Standard tyres: 18-22.5 XF – Bucket capacity min.: 0.47m³ – Bucket capacity max.: 1.85m³ – Transport length: 9.68m – Transport width: 2.74m

Check out detailed dimensions, specifications, information and technical data for Case 1085C excavator manufactured between 1991 - 2019. Get more in-depth insight with Case 1085C digger specifications. See information, like: Weight: 24.3t – Standard tyres: 18-22.5 XF – Bucket capacity min.: 0.47m³ – Bucket capacity max.: 1.85m³ – Transport length: 9.68m – Transport width: 2.74m and more.

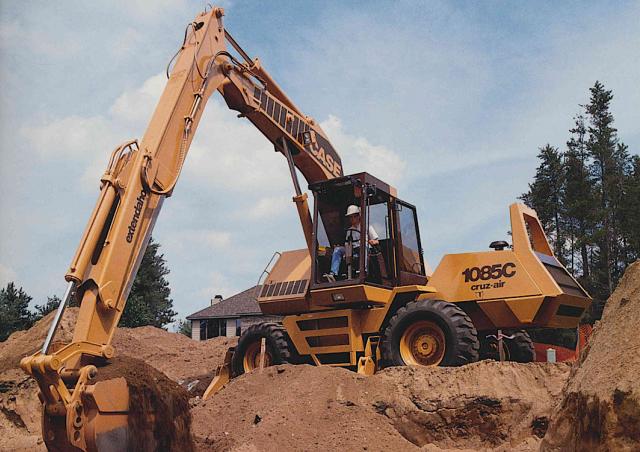

Wheel Excavators Case 1085C

Technical specs - 1085C Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.3 t
Standard tyres
18-22.5 XF
Bucket capacity min.
0.47 m³
Bucket capacity max.
1.85 m³
Transport length
9.68 m
Transport width
2.74 m
Transport height
3.15 m
Max. Reach horizontal
9.6 m
Dredging depth
5.8 m
Travel speed
25 km/h
Model series
C
Engine manuf.
Case
Engine type
667TA
Engine power
129 kW
Displacement
6.7 l
No. of cylinders
6

More technical details, like: bucket capacity, boom, outrigger stabilisers, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case 1085C FAQ

When was the Case 1085C manufactured?

The Case 1085C was manufactured from 1991 to 2019.

How much does the Case 1085C wheel excavator weigh?

The Case 1085C wheel excavator weighs 24.3 tons.

What are the transport dimensions of the Case 1085C wheel excavator?

The Case 1085C has a transport length of 9.68 meters, a transport width of 2.74 meters, and a transport height of 3.15 meters.

What is the travel speed of the Case 1085C wheel excavator?

The Case 1085C wheel excavator has a travel speed of 25 km/h.

What are the undercarriage specifications of the Case 1085C wheel excavator?

The Case 1085C wheel excavator is equipped with standard tyres sized 18-22.5 XF.

What are the excavation performance specifications of the Case 1085C wheel excavator?

The Case 1085C wheel excavator has a dredging depth of 5.8 meters and a maximum horizontal reach of 9.6 meters.

What are the bucket capacity specifications of the Case 1085C wheel excavator?

The Case 1085C wheel excavator has a bucket capacity ranging from 0.47 to 1.85 cubic meters.

How much is a Case 1085C Wheel excavator (1991u20132019) worth?

The residual value of the Case 1085C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
