688 PL Case Poclain Excavator Specs & Dimensions - (1989 - 1993)

Case Poclain is the manufacturer of the wheel excavator model 688 PL. Find and download detailed specs and data sheets for this ma…

Case Poclain is the manufacturer of the wheel excavator model 688 PL. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 65kW or 87 horse power, delivered from its powerful case engine to the 13.1t 688 PL machine. The Case Poclain 688 PL can be grouped in the smallest machine segment in the wheel excavators category. The 688 PL’s size is 2.46m x 7.85m x 2.85m. The bucket capacity of 688 PL is 0,7m³, which is above average for this type of machine.

Cabin adjustment, Blade and Track guidance are not provided on this model as of 1993. There are more detailed specifications and machine descriptions available in the original Case Poclain 688 PL specs data sheet.

This model can be acquired for a list price between €131000 and €167000. Production of the 688 PL stopped in 1993. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Case Poclain models of this type on LECTURA Specs are the, and other wheel excavators, which currently range from up to are also available. Want more detailed specifications? Download the latest Case Poclain 688 PL specs data sheet on LECTURA Specs today!

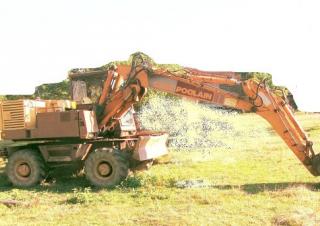

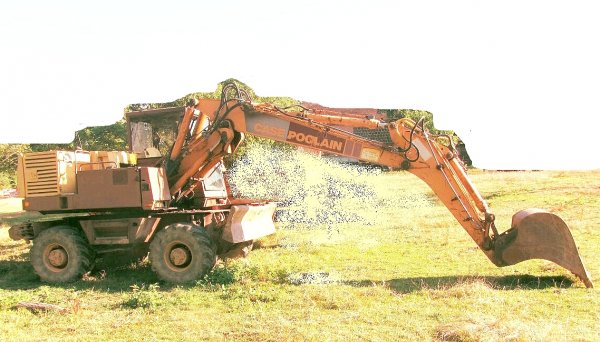

Wheel Excavators Case Poclain 688 PL

Technical specs - 688 PL Case Poclain

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.1 t
Standard tyres
10.00-20
Bucket capacity
0.7 m³
Transport length
7.85 m
Transport width
2.46 m
Transport height
2.85 m
Model series
PL
Engine manuf.
Case
Engine type
4T 390
Engine power
65 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Case Poclain 688 PL FAQ

When was the Case Poclain 688 PL manufactured?

The Case Poclain 688 PL was manufactured from 1989 to 1993.

How much does the Case Poclain 688 PL weigh?

The Case Poclain 688 PL weighs 13.1 tons.

What are the transport dimensions of the Case Poclain 688 PL wheel excavator?

The Case Poclain 688 PL has a transport length of 7.85 meters, a transport width of 2.46 meters, and a transport height of 2.85 meters.

What is the standard tyre size of the Case Poclain 688 PL?

The Case Poclain 688 PL has standard tyres sized 10.00-20.

What is the bucket capacity of the Case Poclain 688 PL wheel excavator?

The Case Poclain 688 PL wheel excavator has a bucket capacity of 0.7 cubic meters.

How much is a Case Poclain 688 PL Wheel excavator (1989u20131993) worth?

The residual value of the Case Poclain 688 PL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
