688 B PL Case Poclain Excavator Specs & Dimensions - (1993 - 1995)

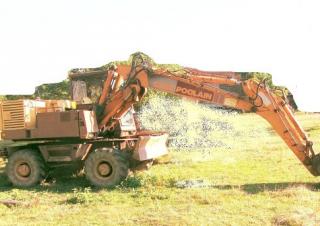

Manufactured by Case Poclain, this is the 688 B PL wheel excavator. Find and download detailed specs and data sheets for this mach…

Manufactured by Case Poclain, this is the 688 B PL wheel excavator. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 65kW or 87 horse power, delivered from its powerful case engine to the 13.1t 688 B PL machine. The 688 B PL is categorised in the smallest machine segment in the wheel excavators category. The 688 B PL’s size is 2.49m x 7.65m x 3.23m. The bucket capacity of 688 B PL is 0,7m³, which is above average for this type of machine.

Quick hitch mech., Track guidance and Material Handling Excavator are not provided on this model as of 1995. There are more detailed specifications and machine descriptions available in the original Case Poclain 688 B PL specs data sheet. Specification sheet is available for a free download in German - providing the machine descriptions and more detailed specs about this particular model.

This model can be acquired for a list price between €143000 and €182000. Production of the 688 B PL stopped in 1995. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, other wheel excavators, which range from up to are produced by Case Poclain. Of these, are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest Case Poclain 688 B PL specs data sheet on LECTURA Specs today!

Wheel Excavators Case Poclain 688 B PL

Technical specs - 688 B PL Case Poclain

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.1 t
Standard tyres
10.00-20
Bucket capacity
0.7 m³
Transport length
7.65 m
Transport width
2.49 m
Transport height
3.23 m
Model series
B
Engine manuf.
Case
Engine type
4T 390
Engine power
65 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case Poclain 688 B PL FAQ

When was the Case Poclain 688 B PL manufactured?

The Case Poclain 688 B PL was manufactured from 1993 to 1995.

How much does the Case Poclain 688 B PL wheel excavator weigh?

The Case Poclain 688 B PL wheel excavator weighs 13.1 tons.

What are the transport dimensions of the Case Poclain 688 B PL wheel excavator?

The Case Poclain 688 B PL has a transport length of 7.65 meters, a transport width of 2.49 meters, and a transport height of 3.23 meters.

What are the undercarriage specifications of the Case Poclain 688 B PL wheel excavator?

The Case Poclain 688 B PL wheel excavator is equipped with standard tyres sized 10.00-20.

What is the bucket capacity of the Case Poclain 688 B PL wheel excavator?

The Case Poclain 688 B PL wheel excavator has a bucket capacity of 0.7 cubic meters.

How much is a Case Poclain 688 B PL Wheel excavator (1993u20131995) worth?

The residual value of the Case Poclain 688 B PL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
