1088 P 2AL Case Poclain Excavator Specs & Dimensions - (1988 - 1993)

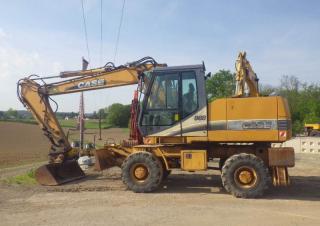

Manufactured by Case Poclain, this is the 1088 P 2AL wheel excavator. Find and download detailed specs and data sheets for this ma…

Manufactured by Case Poclain, this is the 1088 P 2AL wheel excavator. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful case engine, this 1088 P 2AL 21t machine can provide 95kW or 127 horse power for the wheel excavator. The Case Poclain 1088 P 2AL can be grouped in the biggest machine segment in the wheel excavators category. The 1088 P 2AL’s size is 2.49m x 8.85m x 3.27m. The bucket capacity of 1088 P 2AL is 1,15m³, which is above average for this type of machine.

It does not include Track guidance, Quick hitch mech. And Diesel particulate filter. There are more detailed specifications and machine descriptions available in the original Case Poclain 1088 P 2AL specs data sheet.

The production stopped in 1993, where this 1088 P 2AL was available at a new list price between €173000 and €221000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Case Poclain models of this type on LECTURA Specs are the, and other wheel excavators, which currently range from up to are also available. Want more detailed specifications? Download the latest Case Poclain 1088 P 2AL specs data sheet on LECTURA Specs today!

Wheel Excavators Case Poclain 1088 P 2AL

Technical specs - 1088 P 2AL Case Poclain

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21 t
Standard tyres
11.00-20
Bucket capacity
1.15 m³
Transport length
8.85 m
Transport width
2.49 m
Transport height
3.27 m
Model series
P
Engine manuf.
Case
Engine type
6T 590
Engine power
95 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Case Poclain 1088 P 2AL FAQ

When was the Case Poclain 1088 P 2AL manufactured?

The Case Poclain 1088 P 2AL was manufactured from 1988 to 1993.

How much does the Case Poclain 1088 P 2AL weigh?

The Case Poclain 1088 P 2AL weighs 21 tons.

What are the transport dimensions of the Case Poclain 1088 P 2AL wheel excavator?

The Case Poclain 1088 P 2AL has a transport length of 8.85 meters, a transport width of 2.49 meters, and a transport height of 3.27 meters.

What is the standard tyre size of the Case Poclain 1088 P 2AL wheel excavator?

The Case Poclain 1088 P 2AL wheel excavator has standard tyres sized 11.00-20.

What is the bucket capacity of the Case Poclain 1088 P 2AL wheel excavator?

The Case Poclain 1088 P 2AL has a bucket capacity of 1.15 cubic meters.

How much is a Case Poclain 1088 P 2AL Wheel excavator (1988u20131993) worth?

The residual value of the Case Poclain 1088 P 2AL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
