804 Atlas Excavator Specs & Dimensions - (1995 - 1999)

Model rating
9,00 / 10

Atlas is the manufacturer of the mini excavator model 804. Find and download detailed specs and data sheets for this machine here.…

Atlas is the manufacturer of the mini excavator model 804. Find and download detailed specs and data sheets for this machine here.

This mini excavator is built to provide up to 26kW or 34 horse power, delivered from its powerful Perkins engine to the 3.86t 804 machine. The Atlas 804 can be grouped in the biggest machine segment in the mini excavators category. The model's dimensions are 5.03m x 1.55m x 2.46m. The bucket of 804 has a capacity of 0.15m³ which is average for this type of machine.

Since 1995, this model has included Blade. It does not include Quick hitch hydr., Aircondition and Track adaption. There are more detailed specifications and machine descriptions available in the original Atlas 804 specs data sheet. Specification sheet is available for a free download in German - providing the machine descriptions and more detailed specs about this particular model.

The production stopped in 1999, where this 804 was available at a new list price between €57000 and €72000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Atlas models of this type on LECTURA Specs are the, and other mini excavators, which currently range from up to are also available. Want more detailed specifications? Download the latest Atlas 804 specs data sheet on LECTURA Specs today!

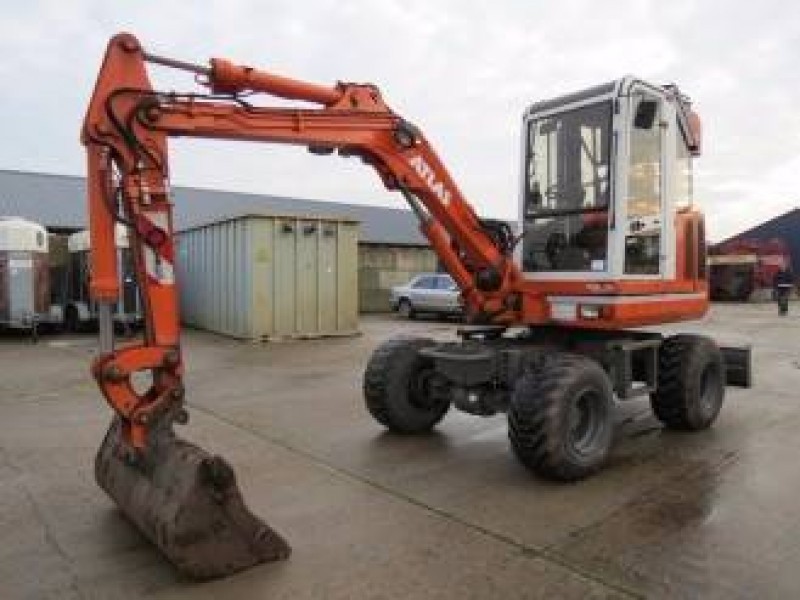

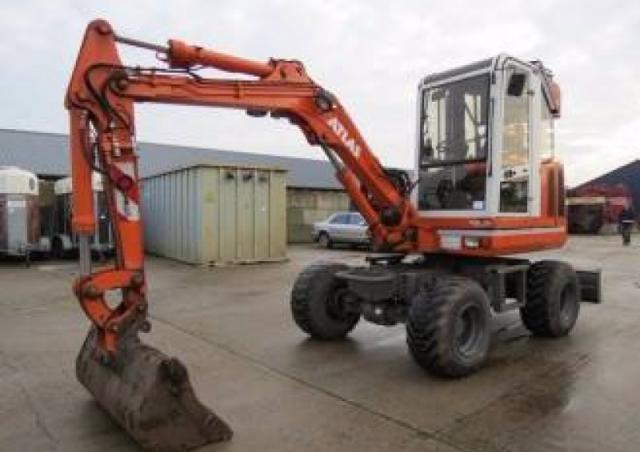

Wheel Excavators Atlas 804

Visit Atlas live at

Technical specs - 804 Atlas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.86 t
Bucket capacity
0.15 m³
Transport length
5.03 m
Transport width
1.55 m
Transport height
2.46 m
Max. Reach horizontal
5.55 m
Dredging depth
3.11 m
Tear-out force
15.6 kN
Engine manuf.
Perkins
Engine type
104-19
Engine power
26 kW
Revolutions at max torque
2300 rpm

More technical details, like: standard tyres, bucket capacity min., bucket capacity max., boom, outrigger stabilisers, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, model series, dimension lxwxh...

More technical details, like: standard tyres, bucket capacity min., bucket capacity max., boom, outrigger stabilisers, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, model series, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, tailswing radius, cab height, ground clearance, mono boom size, standard dipper length, longest dipper length, fuel tank, slew speed, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Atlas 804 FAQ

When was the Atlas 804 wheel excavator manufactured?

The Atlas 804 wheel excavator was manufactured from 1995 to 1999.

How much does the Atlas 804 wheel excavator weigh?

The Atlas 804 wheel excavator weighs 3.86 tons.

What are the transport dimensions of the Atlas 804 wheel excavator?

The Atlas 804 wheel excavator has a transport length of 5.03 meters, a transport width of 1.55 meters, and a transport height of 2.46 meters.

What are the dredging depth and maximum horizontal reach of the Atlas 804 wheel excavator?

The Atlas 804 wheel excavator has a dredging depth of 3.11 meters and a maximum horizontal reach of 5.55 meters.

What is the tear-out force of the Atlas 804 wheel excavator?

The Atlas 804 wheel excavator has a tear-out force of 15.6 kN.

What is the bucket capacity of the Atlas 804 wheel excavator?

The bucket capacity of the Atlas 804 wheel excavator is 0.15 cubic meters.

How much is a Atlas 804 Wheel excavator (1995u20131999) worth?

The residual value of the Atlas 804 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
