270 MH Atlas Excavator Specs & Dimensions - (2010 - 2019)

Model rating
1,00 / 10

The 270 MH wheel excavator model is manufactured by Atlas. Find and download detailed specs and data sheets for this machine here.…

The 270 MH wheel excavator model is manufactured by Atlas. Find and download detailed specs and data sheets for this machine here.

The Atlas 270 MH is a 27t machine with Cummins engine which powers this model with up to 129kW or 172 horse power. This Atlas wheel excavator belongs to the biggest machine segment in the wheel excavators category. The model's dimensions are 9.94m x 2.92m x 3.29m. The bucket capacity of 270 MH is 1,8m³, which is above average for this type of machine.

It has been sold without air Material Handling Excavator, Track guidance and Aircondition as of 2017. There are more detailed specifications and machine descriptions available in the original Atlas 270 MH specs data sheet. Available in English, French and German, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

This model can be acquired for a list price between €325000 and €413000. Production of the 270 MH continues in 2017. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 14 other wheel excavators, which range from 14.9t up to 52t are produced by Atlas. Of these, 1604 ZW, 350 MH and also 1404 ZW are the most frequently visited on LECTURA Specs. This 270 MH wheel excavator, which has been in production between 2010 and 2017 ranks in the LECTURA index at #72. Currently, 14 models of the 270 MH wheel excavator exist, at an average sale value of €115700 at 5 years of age. Want more detailed specifications? Download the latest Atlas 270 MH specs data sheet on LECTURA Specs today!

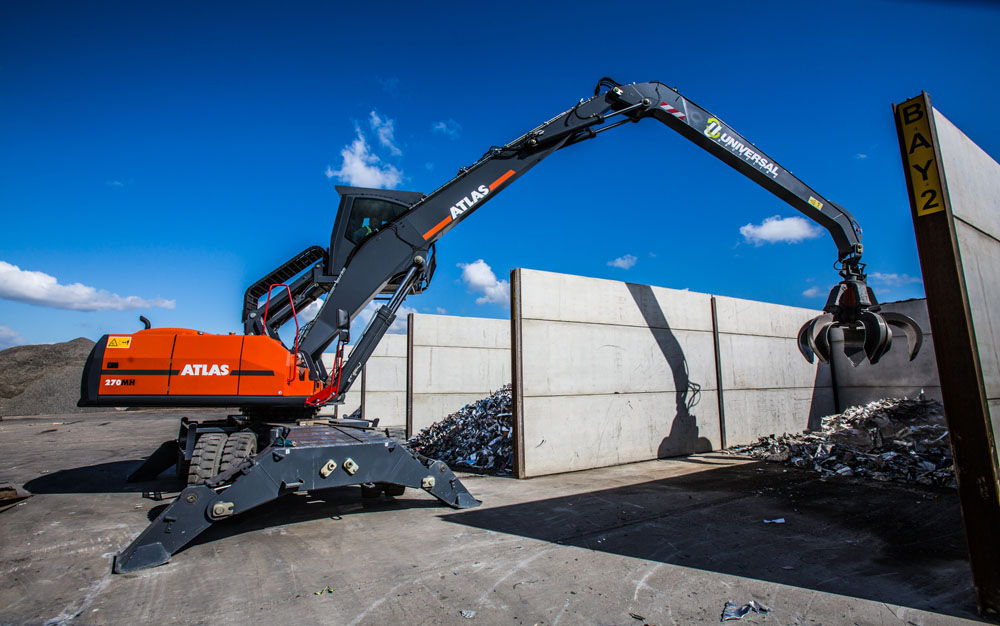

Wheel Excavators Atlas 270 MH
Wheel Excavators Atlas 270 MH
Wheel Excavators Atlas 270 MH
Wheel Excavators Atlas 270 MH
Wheel Excavators Atlas 270 MH
Wheel Excavators Atlas 270 MH
Wheel Excavators Atlas 270 MH
Wheel Excavators Atlas 270 MH

Visit Atlas live at

Technical specs - 270 MH Atlas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
27 t
Standard tyres
10.00-20
Boom
MB
Outrigger stabilisers
4 2/4-fold
Transport length
9.94 m
Transport width
2.92 m
Transport height
3.29 m
Max. Reach horizontal
11.94 m
Travel speed
20 km/h
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
129 kW
Displacement
6.7 l
Revolutions at max torque
1800 rpm
No. of cylinders
6
Emission level
Tier 4 f

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Atlas 270 MH FAQ

When was the Atlas 270 MH manufactured?

The Atlas 270 MH was manufactured from 2010 to 2019.

How much does the Atlas 270 MH wheel excavator weigh?

The Atlas 270 MH wheel excavator weighs 27 tons.

What are the transport dimensions of the Atlas 270 MH wheel excavator?

The Atlas 270 MH has a transport length of 9.94 meters, a transport width of 2.92 meters, and a transport height of 3.29 meters.

What is the travel speed of the Atlas 270 MH wheel excavator?

The Atlas 270 MH wheel excavator has a travel speed of 20 km/h.

What are the undercarriage specifications of the Atlas 270 MH?

The Atlas 270 MH is equipped with 10.00-20 standard tyres and has 4 outrigger stabilisers of the 2/4-fold type.

What is the maximum horizontal reach and boom type of the Atlas 270 MH wheel excavator?

The Atlas 270 MH wheel excavator has a maximum horizontal reach of 11.94 meters and features a monobloc boom.

How much is a Atlas 270 MH Wheel excavator (2010u20132019) worth?

The residual value of the Atlas 270 MH depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
