250 MH Atlas Excavator Specs & Dimensions - (2019 - 2026)

Weight: 23t – Standard tyres: 10.00-20 – Boom: MB – Outrigger stabilisers: 2/42/4-fold – Transport length: 9.8m – Transport width:…

Weight: 23t – Standard tyres: 10.00-20 – Boom: MB – Outrigger stabilisers: 2/42/4-fold – Transport length: 9.8m – Transport width: 2.75m

Check out detailed dimensions, specifications, information and technical data for Atlas 250 MH excavator manufactured between 2019 - 2026. Get more in-depth insight with Atlas 250 MH digger specifications. See information, like: Weight: 23t – Standard tyres: 10.00-20 – Boom: MB – Outrigger stabilisers: 2/42/4-fold – Transport length: 9.8m – Transport width: 2.75m and more.

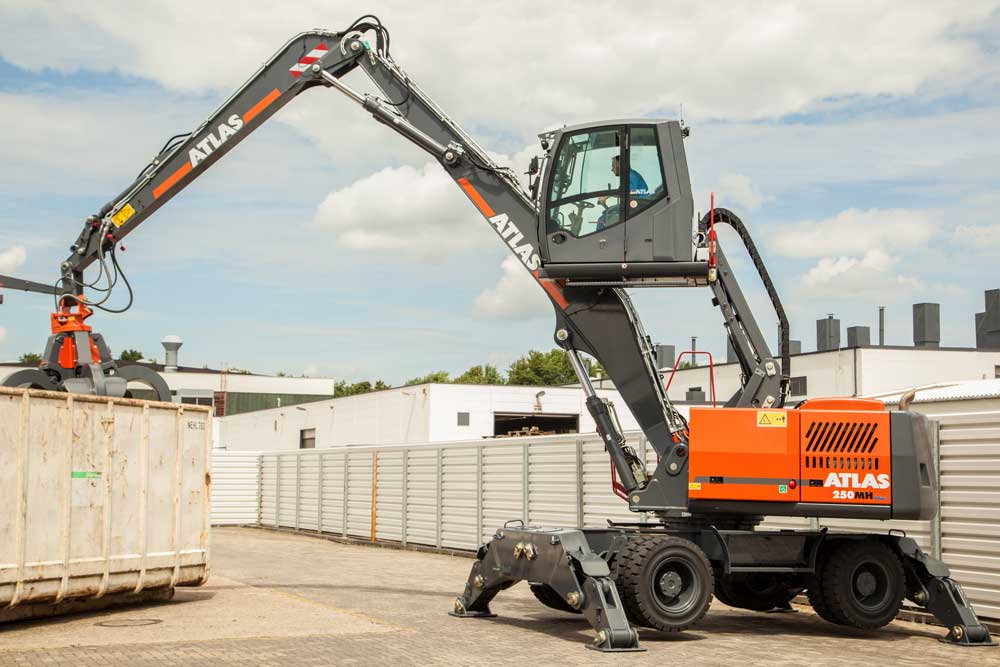

Wheel Excavators Atlas 250 MH
Wheel Excavators Atlas 250 MH
Wheel Excavators Atlas 250 MH
Wheel Excavators Atlas 250 MH
Wheel Excavators Atlas 250 MH
Wheel Excavators Atlas 250 MH
Wheel Excavators Atlas 250 MH
Wheel Excavators Atlas 250 MH

Visit Atlas live at

Technical specs - 250 MH Atlas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23 t
Standard tyres
10.00-20
Boom
MB
Outrigger stabilisers
2/4 2/4-fold
Transport length
9.8 m
Transport width
2.75 m
Transport height
3.24 m
Max. Reach horizontal
12.65 m
Travel speed
20 km/h
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
129 kW
Displacement
6.7 l
Revolutions at max torque
1800 rpm
No. of cylinders
6

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, max. torque...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
Yes
Material Handling Excavator
Yes
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Atlas 250 MH FAQ

When was the Atlas 250 MH manufactured?

The Atlas 250 MH was first produced in 2019.

How much does the Atlas 250 MH wheel excavator weigh?

The Atlas 250 MH wheel excavator weighs 23 tons.

What are the transport dimensions of the Atlas 250 MH wheel excavator?

The Atlas 250 MH has a transport length of 9.8 meters, a transport width of 2.75 meters, and a transport height of 3.24 meters.

What is the travel speed of the Atlas 250 MH wheel excavator?

The Atlas 250 MH has a travel speed of 20 km/h.

What is the fuel consumption range of the Atlas 250 MH wheel excavator?

The fuel consumption range of the Atlas 250 MH wheel excavator is between 9 and 17 liters per hour.

What are the undercarriage specifications of the Atlas 250 MH wheel excavator?

The Atlas 250 MH wheel excavator is equipped with 10.00-20 standard tyres and features 2/4-fold outrigger stabilisers.

What is the maximum horizontal reach and boom type of the Atlas 250 MH wheel excavator?

The Atlas 250 MH wheel excavator has a maximum horizontal reach of 12.65 meters and is equipped with a Monobloc boom.

How much is a Atlas 250 MH Wheel excavator (2019u20132025) worth?

The residual value of the Atlas 250 MH depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
