220 W Atlas Excavator Specs & Dimensions - (2019 - 2026)

Weight: 22t – Standard tyres: 10.00-20 – Bucket capacity: 1.3m³ – Boom: VA – Outrigger stabilisers: 2/42/4-fold – Transport length…

Weight: 22t – Standard tyres: 10.00-20 – Bucket capacity: 1.3m³ – Boom: VA – Outrigger stabilisers: 2/42/4-fold – Transport length: 9.72m

Check out detailed dimensions, specifications, information and technical data for Atlas 220 W excavator manufactured between 2019 - 2026. Get more in-depth insight with Atlas 220 W digger specifications. See information, like: Weight: 22t – Standard tyres: 10.00-20 – Bucket capacity: 1.3m³ – Boom: VA – Outrigger stabilisers: 2/42/4-fold – Transport length: 9.72m and more.

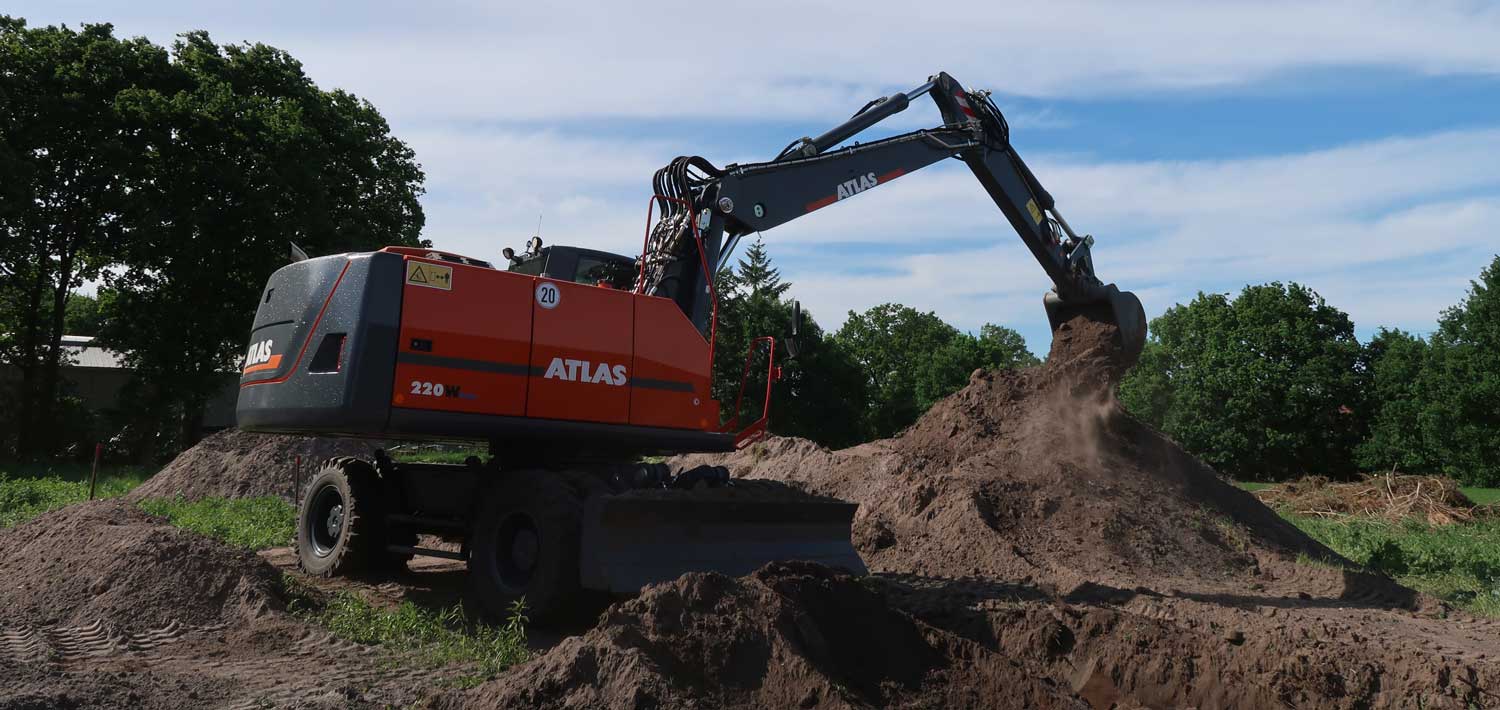

Wheel Excavators Atlas 220 W
Wheel Excavators Atlas 220 W
Wheel Excavators Atlas 220 W
Wheel Excavators Atlas 220 W
Wheel Excavators Atlas 220 W
Wheel Excavators Atlas 220 W

Visit Atlas live at

Technical specs - 220 W Atlas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22 t
Standard tyres
10.00-20
Bucket capacity
1.3 m³
Boom
VA
Outrigger stabilisers
2/4 2/4-fold
Transport length
9.72 m
Transport width
2.75 m
Transport height
3.1 m
Max. Reach horizontal
10.25 m
Dredging depth
6.5 m
Tear-out force
110 kN
Bucket width
1.3 m
Travel speed
20 km/h
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
129 kW
Displacement
6.7 l
Revolutions at max torque
1800 rpm
No. of cylinders
6

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
Yes
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Atlas 220 W FAQ

When was the Atlas 220 W manufactured?

The Atlas 220 W was first produced in 2019.

How much does the Atlas 220 W wheel excavator weigh?

The Atlas 220 W wheel excavator weighs 22 tons.

What are the transport dimensions of the Atlas 220 W wheel excavator?

The Atlas 220 W has a transport length of 9.72 meters, a transport width of 2.75 meters, and a transport height of 3.1 meters.

What is the travel speed of the Atlas 220 W wheel excavator?

The Atlas 220 W wheel excavator has a travel speed of 20 km/h.

What is the fuel consumption range of the Atlas 220 W wheel excavator?

The fuel consumption range of the Atlas 220 W wheel excavator is 9 to 18 liters per hour.

What are the undercarriage specifications of the Atlas 220 W wheel excavator?

The Atlas 220 W wheel excavator is equipped with standard 10.00-20 tyres and features 2/4-fold outrigger stabilisers.

What are the excavation performance specifications of the Atlas 220 W wheel excavator?

The Atlas 220 W wheel excavator has a dredging depth of 6.5 meters, a maximum horizontal reach of 10.25 meters, and features an adjustable boom.

What is the tear-out force of the Atlas 220 W wheel excavator?

The Atlas 220 W wheel excavator has a tear-out force of 110 kN.

What are the specifications of the primary work tool on the Atlas 220 W wheel excavator?

The primary work tool of the Atlas 220 W wheel excavator has a bucket capacity of 1.3 cubic meters and a bucket width of 1.3 meters.

How much is a Atlas 220 W Wheel excavator (2019u20132025) worth?

The residual value of the Atlas 220 W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
