XG8075W XGMA Excavator Specs & Dimensions - (2025 - 2026)

Weight: 7.56t – Standard tyres: 8.25-16-14 – Bucket capacity: 0.3m³ – Transport length: 6.1m – Transport width: 2.15m – Transport …

Weight: 7.56t – Standard tyres: 8.25-16-14 – Bucket capacity: 0.3m³ – Transport length: 6.1m – Transport width: 2.15m – Transport height: 2.8m

Check out detailed dimensions, specifications, information and technical data for XGMA XG8075W excavator manufactured between 2025 - 2026. Get more in-depth insight with XGMA XG8075W digger specifications. See information, like: Weight: 7.56t – Standard tyres: 8.25-16-14 – Bucket capacity: 0.3m³ – Transport length: 6.1m – Transport width: 2.15m – Transport height: 2.8m and more.

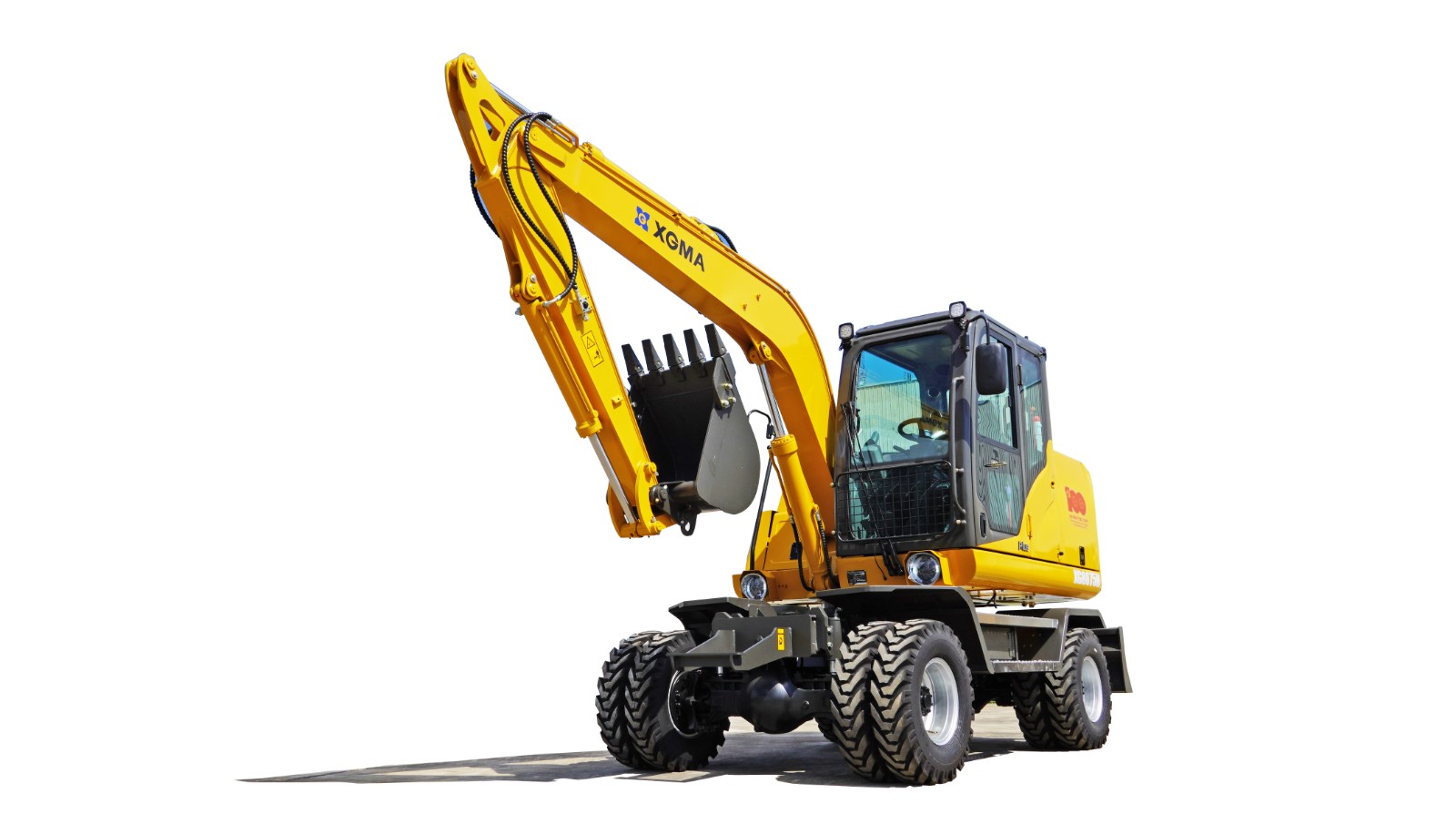

Wheel Excavators XGMA XG8075W

Technical specs - XG8075W XGMA

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.56 t
Standard tyres
8.25-16-14
Bucket capacity
0.3 m³
Transport length
6.1 m
Transport width
2.15 m
Transport height
2.8 m
Max. Reach horizontal
6.36 m
Dredging depth
3.43 m
Tear-out force
38.1 kN
Travel speed
28 km/h
Model series
XG
Engine manuf.
Yuchai
Engine type
N/a
Engine power
55 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
