WL350 Tanguay Excavator Specs & Dimensions - (2017 - 2026)

Weight: 33.57t – Standard tyres: 20.5 X 25 – Transport length: 10.67m – Transport width: 5.49m – Transport height: 5.49m – Max. Re…

Weight: 33.57t – Standard tyres: 20.5 X 25 – Transport length: 10.67m – Transport width: 5.49m – Transport height: 5.49m – Max. Reach horizontal: 13.1m

Check out detailed dimensions, specifications, information and technical data for Tanguay WL350 excavator manufactured between 2017 - 2026. Get more in-depth insight with Tanguay WL350 digger specifications. See information, like: Weight: 33.57t – Standard tyres: 20.5 X 25 – Transport length: 10.67m – Transport width: 5.49m – Transport height: 5.49m – Max. Reach horizontal: 13.1m and more.

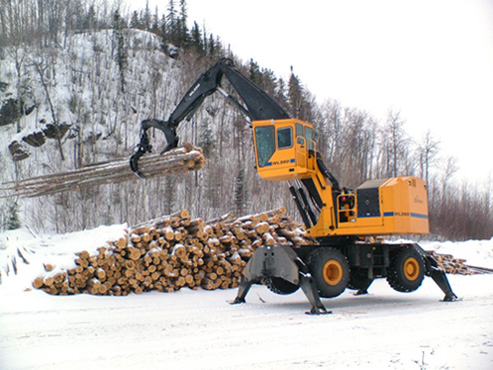

Wheel Excavators Tanguay WL350

Technical specs - WL350 Tanguay

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
33.57 t
Standard tyres
20.5 X 25
Transport length
10.67 m
Transport width
5.49 m
Transport height
5.49 m
Max. Reach horizontal
13.1 m
Engine manuf.
Cummins
Engine type
QSB6.7L
Engine power
164 kW
Emission level
Tier 3

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., boom, outrigger stabilisers, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., boom, outrigger stabilisers, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Tanguay WL350 FAQ

When was the Tanguay WL350 manufactured?

The Tanguay WL350 was first produced in 2017.

How much does the Tanguay WL350 wheel excavator weigh?

The Tanguay WL350 wheel excavator weighs 33.57 tons.

What are the transport dimensions of the Tanguay WL350 wheel excavator?

The Tanguay WL350 has a transport length of 10.67 meters, a transport width of 5.49 meters, and a transport height of 5.49 meters.

What is the size of the standard tyres on the Tanguay WL350 wheel excavator?

The Tanguay WL350 wheel excavator has standard tyres sized 20.5 X 25.

What is the maximum horizontal reach of the Tanguay WL350 wheel excavator?

The Tanguay WL350 wheel excavator has a maximum horizontal reach of 13.1 meters.
