PW220-7 E0 Komatsu Excavator Specs & Dimensions - (2007 - 2014)

Komatsu is the manufacturer of the wheel excavator model PW 220-7 E0. Find and download detailed specs and data sheets for this ma…

Komatsu is the manufacturer of the wheel excavator model PW 220-7 E0. Find and download detailed specs and data sheets for this machine here.

The Komatsu PW 220-7 E0 is a 23.8t machine with Komatsu engine which powers this model with up to 124kW or 166 horse power. The Komatsu PW 220-7 E0 can be grouped in the biggest machine segment in the wheel excavators category. The PW 220-7 E0’s size is 3.6m x 9.7m x 2.55m. The bucket capacity of PW 220-7 E0 is 1,2m³, which is above average for this type of machine.

The PW 220-7 E0 is manufactured and distributed with Aircondition and Overload alert. It has been sold without air Material Handling Excavator, Blade and Cabin adjustment as of 2014. There are more detailed specifications and machine descriptions available in the original Komatsu PW 220-7 E0 specs data sheet. You can download it for free in Italian, French, Spanish, German and English on LECTURA Specs.

The production stopped in 2014, where this PW 220-7 E0 was available at a new list price between €250000 and €318000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Komatsu currently produces 9 other wheel excavators, which range from 10t up to 18.6t - the most visited on LECTURA Specs are PW 98 MR 8, PW 160-10, PW 118 MR 8. Want more detailed specifications? Download the latest Komatsu PW 220-7 E0 specs data sheet on LECTURA Specs today!

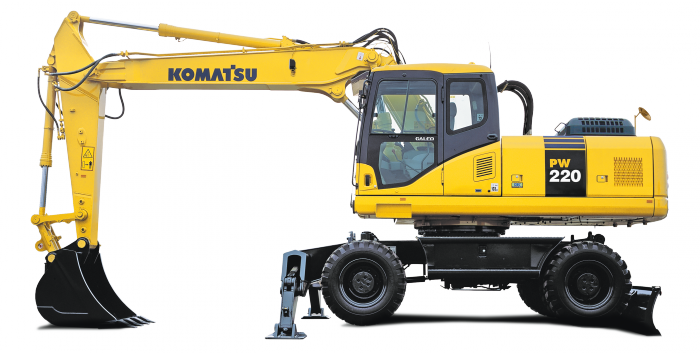

Wheel Excavators Komatsu PW220-7 E0

Visit Komatsu live at

Technical specs - PW220-7 E0 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23.8 t
Standard tyres
11.00-20
Bucket capacity
1.2 m³
Boom
MB/VA
Outrigger stabilisers
2/4 2/4-fold
Transport length
9.7 m
Transport width
3.6 m
Transport height
2.55 m
Max. Reach horizontal
10.64 m
Dredging depth
6.86 m
Tear-out force
145 kN
Bucket width
1.5 m
Model series
PW
Engine manuf.
Komatsu
Engine type
SAA6D107E-1
Engine power
124 kW
Displacement
6.69 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms...

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, dipper standard, boost tearout mono, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PW220-7 E0 FAQ

When was the Komatsu PW220-7 E0 manufactured?

The Komatsu PW220-7 E0 was manufactured from 2007 to 2014.

How much does the Komatsu PW220-7 E0 weigh?

The Komatsu PW220-7 E0 weighs 23.8 tons.

What are the transport dimensions of the Komatsu PW220-7 E0 wheel excavator?

The Komatsu PW220-7 E0 has a transport length of 9.7 meters, a transport width of 3.6 meters, and a transport height of 2.55 meters.

What are the undercarriage specifications of the Komatsu PW220-7 E0 wheel excavator?

The Komatsu PW220-7 E0 is equipped with 11.00-20 standard tyres and features 2/4-fold outrigger stabilisers.

What are the excavation performance specifications of the Komatsu PW220-7 E0 wheel excavator?

The Komatsu PW220-7 E0 has a dredging depth of 6.86 meters, a maximum horizontal reach of 10.64 meters, and features a monobloc, adjustable boom.

What is the tear-out force of the Komatsu PW220-7 E0 wheel excavator?

The Komatsu PW220-7 E0 wheel excavator has a tear-out force of 145 kN.

What are the bucket specifications of the Komatsu PW220-7 E0 wheel excavator?

The Komatsu PW220-7 E0 wheel excavator has a bucket capacity of 1.2 cubic meters and a bucket width of 1.5 meters.

How much is a Komatsu PW220-7 E0 Wheel excavator (2007u20132014) worth?

The residual value of the Komatsu PW220-7 E0 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
