HMK 220 W Hidromek Excavator Specs & Dimensions - (2022 - 2026)

Weight: 22.45t – Standard tyres: 11.00-20 (16Pr) – Bucket capacity: 0.9m³ – Boom: MB – Outrigger stabilisers: 2/42/4-fold – Transp…

Weight: 22.45t – Standard tyres: 11.00-20 (16Pr) – Bucket capacity: 0.9m³ – Boom: MB – Outrigger stabilisers: 2/42/4-fold – Transport length: 9.51m

Check out detailed dimensions, specifications, information and technical data for Hidromek HMK 220 W excavator manufactured between 2022 - 2026. Get more in-depth insight with Hidromek HMK 220 W digger specifications. See information, like: Weight: 22.45t – Standard tyres: 11.00-20 (16Pr) – Bucket capacity: 0.9m³ – Boom: MB – Outrigger stabilisers: 2/42/4-fold – Transport length: 9.51m and more.

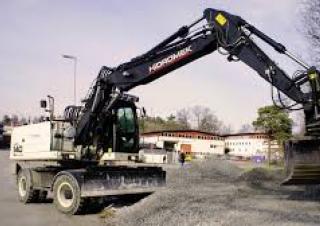

Wheel Excavators Hidromek HMK 220 W

Visit Hidromek live at

Technical specs - HMK 220 W Hidromek

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.45 t
Standard tyres
11.00-20 (16Pr)
Bucket capacity
0.9 m³
Boom
MB
Outrigger stabilisers
2/4 2/4-fold
Transport length
9.51 m
Transport width
2.75 m
Transport height
3.2 m
Max. Reach horizontal
9.17 m
Dredging depth
5.76 m
Tear-out force
155.9 kN
Bucket width
1.11 m
Dipper length
2.4 m
Travel speed
30 km/h
Model series
HMK
Engine manuf.
Isuzu
Engine type
AR-4HK1X
Engine power
128 kW
Displacement
5.193 l
Revolutions at max torque
2000 rpm
Max. torque
670/1600 Nm
No. of cylinders
4
Cylinder bore x stroke
115x125 mm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., turning radius inside, turning radius outside, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
Yes
Overload alert
Yes
Material Handling Excavator
Yes
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Hidromek HMK 220 W FAQ

When was the Hidromek HMK 220 W manufactured?

The Hidromek HMK 220 W was first produced in 2022.

How much does the Hidromek HMK 220 W weigh?

The Hidromek HMK 220 W weighs 22.45 tons.

What are the transport dimensions of the Hidromek HMK 220 W wheel excavator?

The transport dimensions of the Hidromek HMK 220 W are 9.51 meters in length, 2.78 meters in width, and 3.22 meters in height.

What is the travel speed of the Hidromek HMK 220 W wheel excavator?

The Hidromek HMK 220 W has a travel speed of 31 km/h.

What are the undercarriage specifications of the Hidromek HMK 220 W wheel excavator?

The Hidromek HMK 220 W is equipped with 11.00-20 (16Pr) standard tyres and features 2/4-fold outrigger stabilisers.

What are the excavation performance specifications of the Hidromek HMK 220 W wheel excavator?

The Hidromek HMK 220 W has a dredging depth of 5.76 meters, a maximum horizontal reach of 9.17 meters, features a monobloc boom, and has a dipper length of 2.4 meters.

What is the tear-out force of the Hidromek HMK 220 W wheel excavator?

The Hidromek HMK 220 W wheel excavator has a tear-out force of 155.9 kN.

What are the bucket specifications of the Hidromek HMK 220 W wheel excavator?

The Hidromek HMK 220 W has a bucket capacity of 0.9 cubic meters and a bucket width of 1.11 meters.

How much is a Hidromek HMK 220 W Wheel excavator (2022u20132025) worth?

The residual value of the Hidromek HMK 220 W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
