MH3022 Caterpillar Excavator Specs & Dimensions - (2022 - 2026)

Weight: 24.5t – Standard tyres: 10.00-20 – Boom: UA – Outrigger stabilisers: 42/4-fold – Transport length: 9.86m – Transport width…

Weight: 24.5t – Standard tyres: 10.00-20 – Boom: UA – Outrigger stabilisers: 42/4-fold – Transport length: 9.86m – Transport width: 2.54m

Check out detailed dimensions, specifications, information and technical data for Caterpillar MH3022 excavator manufactured between 2022 - 2026. Get more in-depth insight with Caterpillar MH3022 digger specifications. See information, like: Weight: 24.5t – Standard tyres: 10.00-20 – Boom: UA – Outrigger stabilisers: 42/4-fold – Transport length: 9.86m – Transport width: 2.54m and more.

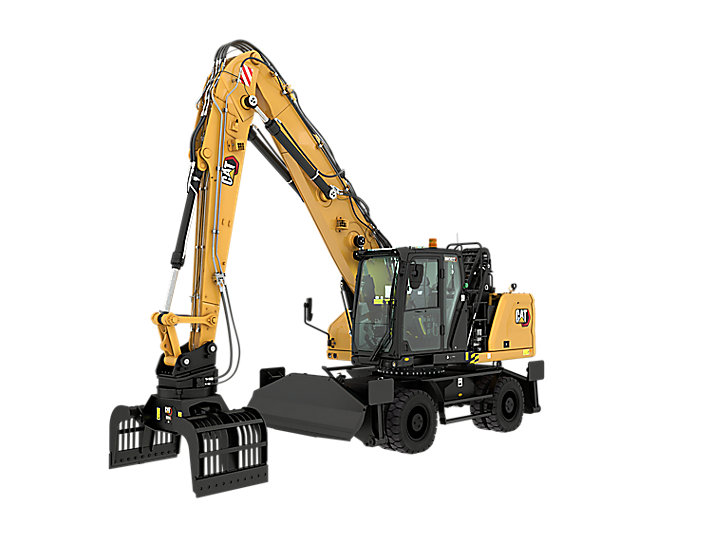

Wheel Excavators Caterpillar MH3022

Technical specs - MH3022 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.5 t
Standard tyres
10.00-20
Boom
UA
Outrigger stabilisers
4 2/4-fold
Transport length
9.86 m
Transport width
2.54 m
Transport height
3.35 m
Max. Reach horizontal
10.28 m
Dredging depth
1.5 m
Travel speed
20 km/h
Engine manuf.
Caterpillar
Engine type
C4.4
Engine power
110 kW
Displacement
4.4 l
Max. torque
710/1400 Nm
No. of cylinders
4
Cylinder bore x stroke
105x127 mm
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, revolutions at max torque are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
Yes
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Caterpillar MH3022 FAQ

When was the Caterpillar MH3022 manufactured?

The Caterpillar MH3022 was first produced in 2022.

How much does the Caterpillar MH3022 wheel excavator weigh?

The Caterpillar MH3022 wheel excavator weighs 24.5 tons.

What are the transport dimensions of the Caterpillar MH3022 wheel excavator?

The Caterpillar MH3022 has a transport length of 9.86 meters, a transport width of 2.54 meters, and a transport height of 3.35 meters.

What is the travel speed of the Caterpillar MH3022 wheel excavator?

The Caterpillar MH3022 has a travel speed of 20 km/h.

What is the fuel consumption of the Caterpillar MH3022 wheel excavator?

The Caterpillar MH3022 wheel excavator has a fuel consumption range of 7 to 13 liters per hour, with an average consumption of 10.1 liters per hour.

What are the undercarriage specifications of the Caterpillar MH3022 wheel excavator?

The Caterpillar MH3022 is equipped with 10.00-20 standard tyres and features 4-fold outrigger stabilisers.

What are the excavation performance specifications of the Caterpillar MH3022 wheel excavator?

The Caterpillar MH3022 wheel excavator has a dredging depth of 1.5 meters, a maximum horizontal reach of 10.28 meters, and is equipped with a material handling boom.
