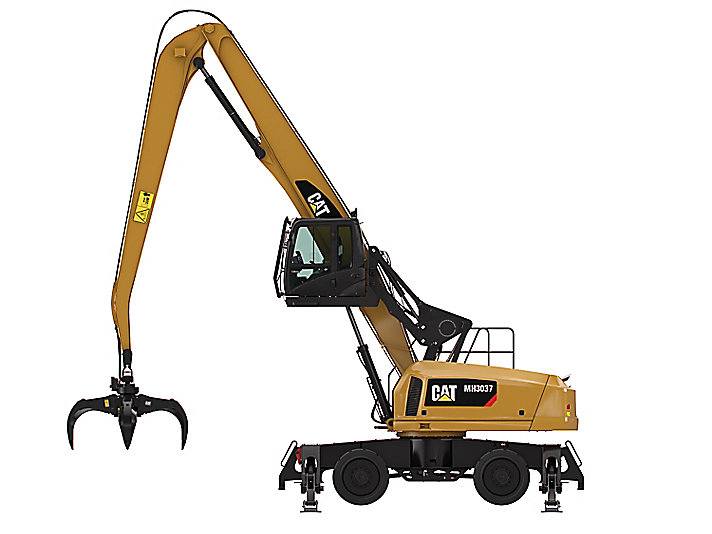

MH 3037 Caterpillar Excavator Specs & Dimensions - (2016 - 2017)

Caterpillar is the manufacturer of the wheel excavator model MH 3037. Find and download detailed specs and data sheets for this ma…

Caterpillar is the manufacturer of the wheel excavator model MH 3037. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Caterpillar engine, this MH 3037 39.5t machine can provide 168kW or 225 horse power for the wheel excavator. This Caterpillar wheel excavator belongs to the biggest machine segment in the wheel excavators category. The model's dimensions are 12.558m x 2.997m x 3.334m.

The MH 3037 is manufactured and distributed with Aircondition, Material Handling Excavator and Cabin adjustment. Quick hitch hydr., Overload alert and Quick hitch mech. Are not provided on this model as of 2017. There are more detailed specifications and machine descriptions available in the original Caterpillar MH 3037 specs data sheet. Download a free data sheet in German from LECTURA Specs.

The production is still going in 2017, where this MH 3037 is available at a new list price between €583000 and €742000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Caterpillar currently produces 19 other wheel excavators, which range from 13.7t up to 36t - the most visited on LECTURA Specs are M 320 F, M 318 F, M 314 F. Having been in production from 2016 to 2017, the MH 3037 wheel excavator ranks in the LECTURA index at #78. Want more detailed specifications? Download the latest Caterpillar MH 3037 specs data sheet on LECTURA Specs today!

Wheel Excavators Caterpillar MH 3037

Technical specs - MH 3037 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
39.5 t
Outrigger stabilisers
4 2/4-fold
Transport length
12.558 m
Transport width
2.997 m
Transport height
3.334 m
Max. Reach horizontal
15.9 m
Dredging depth
4.9 m
Travel speed
20 km/h
Engine manuf.
Caterpillar
Engine type
C7.1 Acert
Engine power
168 kW
Displacement
7 l
Revolutions at max torque
1850 rpm
Emission level
Tier 4 f

More technical details, like: standard tyres, bucket capacity, bucket capacity min., bucket capacity max., boom, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh...

More technical details, like: standard tyres, bucket capacity, bucket capacity min., bucket capacity max., boom, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
Yes
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar MH 3037 FAQ

When was the Caterpillar MH 3037 manufactured?

The Caterpillar MH 3037 was manufactured from 2016 to 2017.

How much does the Caterpillar MH 3037 wheel excavator weigh?

The Caterpillar MH 3037 wheel excavator weighs 39.5 tons.

What are the transport dimensions of the Caterpillar MH 3037 wheel excavator?

The Caterpillar MH 3037 has a transport length of 12.56 meters, a transport width of 3 meters, and a transport height of 3.33 meters.

What is the travel speed of the Caterpillar MH 3037 wheel excavator?

The Caterpillar MH 3037 has a travel speed of 20 km/h.

What is the fuel consumption range of the Caterpillar MH 3037 wheel excavator?

The Caterpillar MH 3037 wheel excavator has a fuel consumption range of 13 to 25 liters per hour.

How many outrigger stabilisers does the Caterpillar MH 3037 wheel excavator have?

The Caterpillar MH 3037 wheel excavator has 4 outrigger stabilisers.

What are the excavation performance specifications of the Caterpillar MH 3037 wheel excavator?

The Caterpillar MH 3037 wheel excavator has a dredging depth of 4.9 meters and a maximum horizontal reach of 15.9 meters.

How much is a Caterpillar MH 3037 Wheel excavator (2016u20132017) worth?

The residual value of the Caterpillar MH 3037 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
