M322D Caterpillar Excavator Specs & Dimensions - (2011 - 2021)

Weight: 23.5t – Standard tyres: 11.00-20 – Bucket capacity min.: 0.44m³ – Bucket capacity max.: 1.57m³ – Boom: MB – Transport leng…

Weight: 23.5t – Standard tyres: 11.00-20 – Bucket capacity min.: 0.44m³ – Bucket capacity max.: 1.57m³ – Boom: MB – Transport length: 9.65m

Check out detailed dimensions, specifications, information and technical data for Caterpillar M322D excavator manufactured between 2011 - 2021. Get more in-depth insight with Caterpillar M322D digger specifications. See information, like: Weight: 23.5t – Standard tyres: 11.00-20 – Bucket capacity min.: 0.44m³ – Bucket capacity max.: 1.57m³ – Boom: MB – Transport length: 9.65m and more.

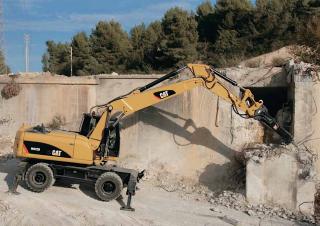

Wheel Excavators Caterpillar M322D

Technical specs - M322D Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23.5 t
Standard tyres
11.00-20
Bucket capacity min.
0.44 m³
Bucket capacity max.
1.57 m³
Boom
MB
Transport length
9.65 m
Transport width
2.75 m
Transport height
3.29 m
Max. Reach horizontal
10.32 m
Dredging depth
6.68 m
Tear-out force
140 kN
Bucket width
1.5 m
Turning radius outside
9.3 m
Travel speed
25 km/h
Engine manuf.
Caterpillar
Engine type
C6.6 Acert
Engine power
123 kW
Displacement
6.6 l
Max. torque
750 Nm
No. of cylinders
6
Cylinder bore x stroke
105x127 mm
Emission level
Tier 3

More technical details, like: bucket capacity, outrigger stabilisers, dipper length, turning radius inside, model series, dimension lxwxh, revolutions at max torque are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar M322D FAQ

When was the Caterpillar M322D manufactured?

The Caterpillar M322D was manufactured from 2011 to 2021.

How much does the Caterpillar M322D wheel excavator weigh?

The Caterpillar M322D wheel excavator weighs 23.5 tons.

What are the transport dimensions of the Caterpillar M322D wheel excavator?

The Caterpillar M322D has a transport length of 9.65 meters, a transport width of 2.75 meters, and a transport height of 3.29 meters.

What is the travel speed of the Caterpillar M322D wheel excavator?

The Caterpillar M322D has a travel speed of 25 km/h.

What is the fuel consumption range of the Caterpillar M322D wheel excavator?

The fuel consumption range of the Caterpillar M322D wheel excavator is 14 to 26 liters per hour.

What are the undercarriage tyre specifications of the Caterpillar M322D wheel excavator?

The Caterpillar M322D wheel excavator is equipped with standard tyres sized 11.00-20.

What is the turning radius of the Caterpillar M322D wheel excavator?

The Caterpillar M322D wheel excavator has an outside turning radius of 9.3 meters.

What are the excavation performance specifications of the Caterpillar M322D wheel excavator?

The Caterpillar M322D wheel excavator has a dredging depth of 6.68 meters, a maximum horizontal reach of 10.32 meters, and features a monobloc boom.

What is the tear-out force of the Caterpillar M322D wheel excavator?

The Caterpillar M322D wheel excavator has a tear-out force of 140 kN.

What are the bucket specifications of the Caterpillar M322D wheel excavator?

The Caterpillar M322D has a bucket with a maximum capacity of 1.57 cubic meters, a minimum capacity of 0.44 cubic meters, and a width of 1.5 meters.

How much is a Caterpillar M322D Wheel excavator (2011u20132021) worth?

The residual value of the Caterpillar M322D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
