M322C Caterpillar Excavator Specs & Dimensions - (2005 - 2011)

Weight: 22.7t – Standard tyres: 11.00-20 – Bucket capacity min.: 0.43m³ – Bucket capacity max.: 1.4m³ – Boom: MB – Transport lengt…

Weight: 22.7t – Standard tyres: 11.00-20 – Bucket capacity min.: 0.43m³ – Bucket capacity max.: 1.4m³ – Boom: MB – Transport length: 9.65m

Check out detailed dimensions, specifications, information and technical data for Caterpillar M322C excavator manufactured between 2005 - 2011. Get more in-depth insight with Caterpillar M322C digger specifications. See information, like: Weight: 22.7t – Standard tyres: 11.00-20 – Bucket capacity min.: 0.43m³ – Bucket capacity max.: 1.4m³ – Boom: MB – Transport length: 9.65m and more.

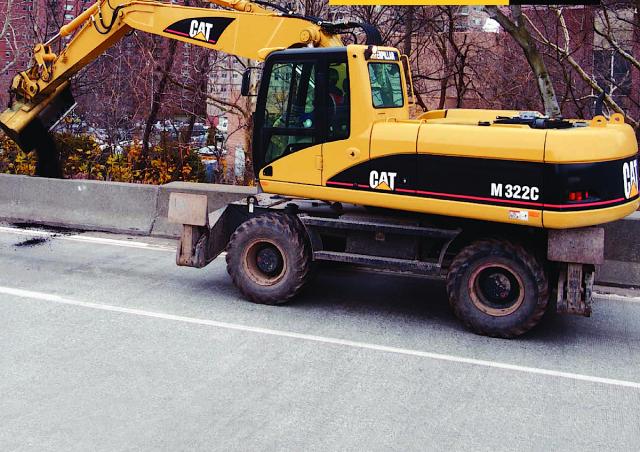

Wheel Excavators Caterpillar M322C

Technical specs - M322C Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.7 t
Standard tyres
11.00-20
Bucket capacity min.
0.43 m³
Bucket capacity max.
1.4 m³
Boom
MB
Transport length
9.65 m
Transport width
2.75 m
Transport height
3.29 m
Max. Reach horizontal
10.32 m
Dredging depth
6.47 m
Tear-out force
131 kN
Bucket width
1.5 m
Travel speed
25 km/h
Engine manuf.
Caterpillar
Engine type
3056 ATAAC
Engine power
122 kW
Displacement
6 l
Max. torque
695 Nm
No. of cylinders
6
Cylinder bore x stroke
100x127 mm
Emission level
Tier 2

More technical details, like: bucket capacity, outrigger stabilisers, dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, revolutions at max torque are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar M322C FAQ

When was the Caterpillar M322C manufactured?

The Caterpillar M322C was manufactured from 2005 to 2011.

How much does the Caterpillar M322C weigh?

The Caterpillar M322C weighs 22.7 tons.

What are the transport dimensions of the Caterpillar M322C wheel excavator?

The Caterpillar M322C has a transport length of 9.65 meters, a transport width of 2.75 meters, and a transport height of 3.29 meters.

What is the travel speed of the Caterpillar M322C wheel excavator?

The Caterpillar M322C has a travel speed of 25 km/h.

What is the standard tyre size of the undercarriage on the Caterpillar M322C wheel excavator?

The Caterpillar M322C wheel excavator has standard tyres sized 11.00-20.

What are the excavation performance specifications of the Caterpillar M322C wheel excavator?

The Caterpillar M322C wheel excavator has a dredging depth of 6.47 meters, a maximum horizontal reach of 10.32 meters, and features a monobloc boom.

What is the tear-out force of the Caterpillar M322C wheel excavator?

The Caterpillar M322C wheel excavator has a tear-out force of 131 kN.

What are the specifications of the primary work tool bucket on the Caterpillar M322C wheel excavator?

The Caterpillar M322C's primary work tool bucket has a maximum capacity of 1.4 cubic meters, a minimum capacity of 0.43 cubic meters, and a width of 1.5 meters.
