TM 520 Atlas Excavator Specs & Dimensions - (2008 - 2010)

Atlas is the manufacturer of the wheel excavator model TM 520. Find and download detailed specs and data sheets for this machine h…

Atlas is the manufacturer of the wheel excavator model TM 520. Find and download detailed specs and data sheets for this machine here.

The Atlas TM 520 is a 52t machine with Deutz engine which powers this model with up to 183kW or 245 horse power. The Atlas TM 520 can be grouped in the biggest machine segment in the wheel excavators category. The bucket of TM 520 has a capacity of 2,5m³ which is average for this type of machine.

Since 2008, this model has included Material Handling Excavator, Cabin adjustment and Aircondition. It does not include Track guidance, Quick hitch mech. And Overload alert. There are more detailed specifications and machine descriptions available in the original Atlas TM 520 specs data sheet.

The production stopped in 2010, where this TM 520 was available at a new list price between €543000 and €691000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Atlas currently produces 15 other wheel excavators, which range from 14.9t up to 52t - the most visited on LECTURA Specs are 350 MH, 1604 ZW, 1404 ZW. Want more detailed specifications? Download the latest Atlas TM 520 specs data sheet on LECTURA Specs today!

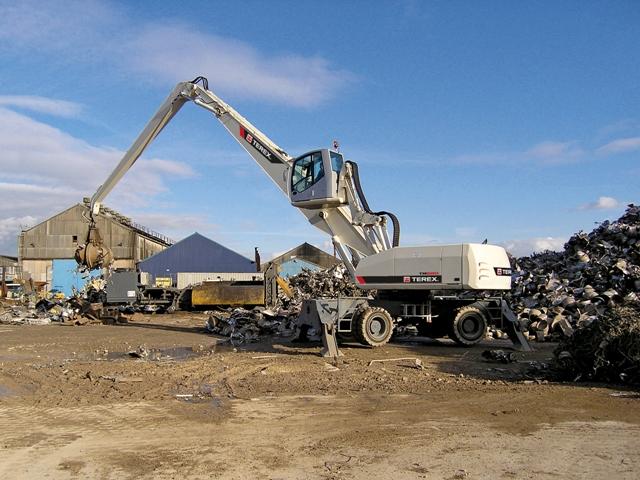

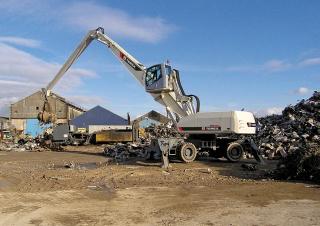

Wheel Excavators Atlas TM 520

Visit Atlas live at

Technical specs - TM 520 Atlas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
52 t
Standard tyres
12.00-24
Bucket capacity
2.5 m³
Boom
MB
Outrigger stabilisers
4 2/4-fold
Max. Reach horizontal
16 m
Dredging depth
8.4 m
Model series
TM
Engine manuf.
Deutz
Engine type
TCD2013 L06 4V
Engine power
183 kW
Displacement
7.1 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., transport length, transport width, transport height, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh...

More technical details, like: bucket capacity min., bucket capacity max., transport length, transport width, transport height, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
Yes
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Atlas TM 520 FAQ

When was the Atlas TM 520 manufactured?

The Atlas TM 520 was manufactured from 2008 to 2010.

How much does the Atlas TM 520 wheel excavator weigh?

The Atlas TM 520 wheel excavator weighs 52 tons.

What are the undercarriage specifications of the Atlas TM 520 wheel excavator?

The Atlas TM 520 wheel excavator has standard tyres sized 12.00-24 and 4 outrigger stabilisers (2/4-fold).

What are the excavation performance specifications of the Atlas TM 520 wheel excavator?

The Atlas TM 520 wheel excavator has a dredging depth of 8.4 meters, a maximum horizontal reach of 16 meters, and is equipped with a monobloc boom.

What is the bucket capacity of the Atlas TM 520 wheel excavator?

The bucket capacity of the Atlas TM 520 wheel excavator is 2.5 cubic meters.

How much is a Atlas TM 520 Wheel excavator (2008u20132010) worth?

The residual value of the Atlas TM 520 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
