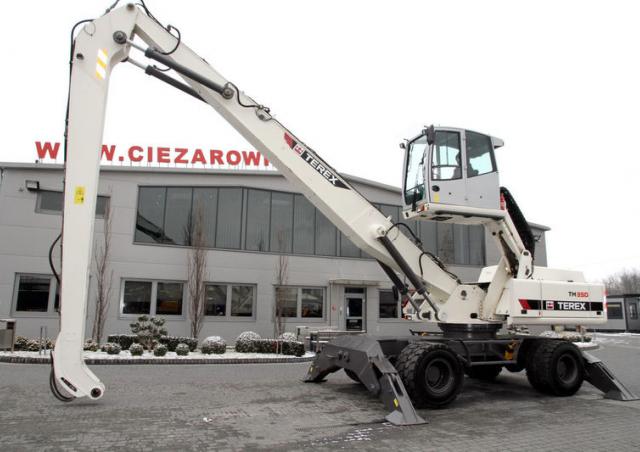

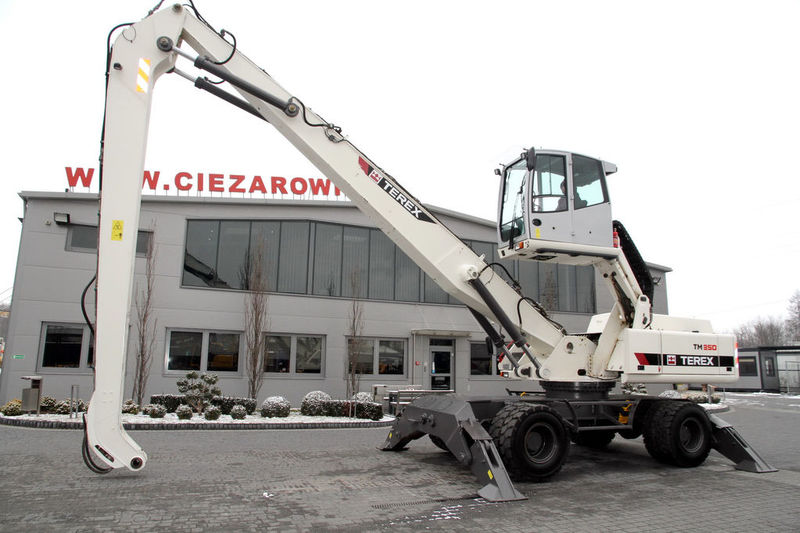

TM 350 Atlas Excavator Specs & Dimensions - (2008 - 2010)

Manufactured by Atlas, this is the TM 350 wheel excavator. Find and download detailed specs and data sheets for this machine here.…

Manufactured by Atlas, this is the TM 350 wheel excavator. Find and download detailed specs and data sheets for this machine here.

The Atlas TM 350 is a 35t machine with Deutz engine which powers this model with up to 166kW or 222 horse power. This Atlas wheel excavator belongs to the biggest machine segment in the wheel excavators category. The bucket of TM 350 has a capacity of 1,8m³ which is average for this type of machine.

Since 2008, this model has included Aircondition and Material Handling Excavator. Quick hitch mech., Cabin adjustment and Quick hitch hydr. Are not provided on this model as of 2010. There are more detailed specifications and machine descriptions available in the original Atlas TM 350 specs data sheet.

The production stopped in 2010, where this TM 350 was available at a new list price between €348000 and €443000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Atlas models of this type on LECTURA Specs are the 350 MH, 1604 ZW and 1404 ZW, and 15 other wheel excavators, which currently range from 14.9t up to 52t are also available. Want more detailed specifications? Download the latest Atlas TM 350 specs data sheet on LECTURA Specs today!

Wheel Excavators Atlas TM 350

Visit Atlas live at

Technical specs - TM 350 Atlas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
35 t
Standard tyres
12.00-20
Bucket capacity
1.8 m³
Boom
MB
Outrigger stabilisers
4 2/4-fold
Max. Reach horizontal
14.8 m
Dredging depth
7.85 m
Model series
TM
Engine manuf.
Deutz
Engine type
TCD2013 L06 2V
Engine power
166 kW
Displacement
7.1 l
Revolutions at max torque
1900 rpm

More technical details, like: bucket capacity min., bucket capacity max., transport length, transport width, transport height, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh...

More technical details, like: bucket capacity min., bucket capacity max., transport length, transport width, transport height, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
Yes
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Atlas TM 350 FAQ

When was the Atlas TM 350 manufactured?

The Atlas TM 350 was manufactured from 2008 to 2010.

How much does the Atlas TM 350 wheel excavator weigh?

The Atlas TM 350 wheel excavator weighs 35 tons.

What are the undercarriage specifications of the Atlas TM 350 wheel excavator?

The Atlas TM 350 is equipped with 12.00-20 standard tyres and has 4 outrigger stabilisers.

What are the excavation performance specifications of the Atlas TM 350 wheel excavator?

The Atlas TM 350 has a dredging depth of 7.85 meters, a maximum horizontal reach of 14.8 meters, and features a monobloc boom.

What is the bucket capacity of the Atlas TM 350 wheel excavator?

The bucket capacity of the Atlas TM 350 wheel excavator is 1.8 cubic meters.

How much is a Atlas TM 350 Wheel excavator (2008u20132010) worth?

The residual value of the Atlas TM 350 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
