TM 230 Atlas Excavator Specs & Dimensions - (2008 - 2010)

Manufactured by Atlas, this is the TM 230 wheel excavator. Find and download detailed specs and data sheets for this machine here.…

Manufactured by Atlas, this is the TM 230 wheel excavator. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 116kW or 155 horse power, delivered from its powerful Cummins engine to the 23t TM 230 machine. This Atlas wheel excavator belongs to the biggest machine segment in the wheel excavators category. The model's dimensions are 8.9m x 2.5m x 3.95m. The bucket of TM 230 has a capacity of 1,5m³ which is average for this type of machine.

Since 2008, this model has included Overload alert, Aircondition and Material Handling Excavator. It does not include Cabin adjustment, Blade and Track guidance. There are more detailed specifications and machine descriptions available in the original Atlas TM 230 specs data sheet.

This model can be acquired for a list price between €244000 and €311000. Production of the TM 230 stopped in 2010. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Atlas models of this type on LECTURA Specs are the 1604 ZW, 1404 ZW and 350 MH, and 15 other wheel excavators, which currently range from 14.9t up to 52t are also available. Want more detailed specifications? Download the latest Atlas TM 230 specs data sheet on LECTURA Specs today!

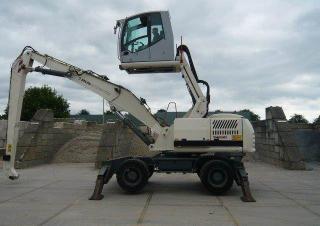

Wheel Excavators Atlas TM 230

Visit Atlas live at

Technical specs - TM 230 Atlas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23 t
Standard tyres
10.00-20
Bucket capacity
1.5 m³
Boom
MB
Outrigger stabilisers
4 2/4-fold
Transport length
8.9 m
Transport width
2.5 m
Transport height
3.95 m
Max. Reach horizontal
10.93 m
Dredging depth
7.04 m
Model series
TM
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
116 kW
Displacement
6.7 l
Revolutions at max torque
1800 rpm

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
Yes
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Atlas TM 230 FAQ

When was the Atlas TM 230 manufactured?

The Atlas TM 230 was manufactured from 2008 to 2010.

How much does the Atlas TM 230 wheel excavator weigh?

The Atlas TM 230 wheel excavator weighs 23 tons.

What are the transport dimensions of the Atlas TM 230 wheel excavator?

The Atlas TM 230 has a transport length of 8.9 meters, a transport width of 2.5 meters, and a transport height of 3.95 meters.

What are the undercarriage specifications of the Atlas TM 230 wheel excavator?

The Atlas TM 230 is equipped with 10.00-20 standard tyres and features 4 outrigger stabilisers.

What are the excavation performance specifications of the Atlas TM 230 wheel excavator?

The Atlas TM 230 wheel excavator has a dredging depth of 7.04 meters, a maximum horizontal reach of 10.93 meters, and features a monobloc boom.

What is the bucket capacity of the Atlas TM 230 wheel excavator?

The Atlas TM 230 wheel excavator has a bucket capacity of 1.5 cubic meters.

How much is a Atlas TM 230 Wheel excavator (2008u20132010) worth?

The residual value of the Atlas TM 230 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
