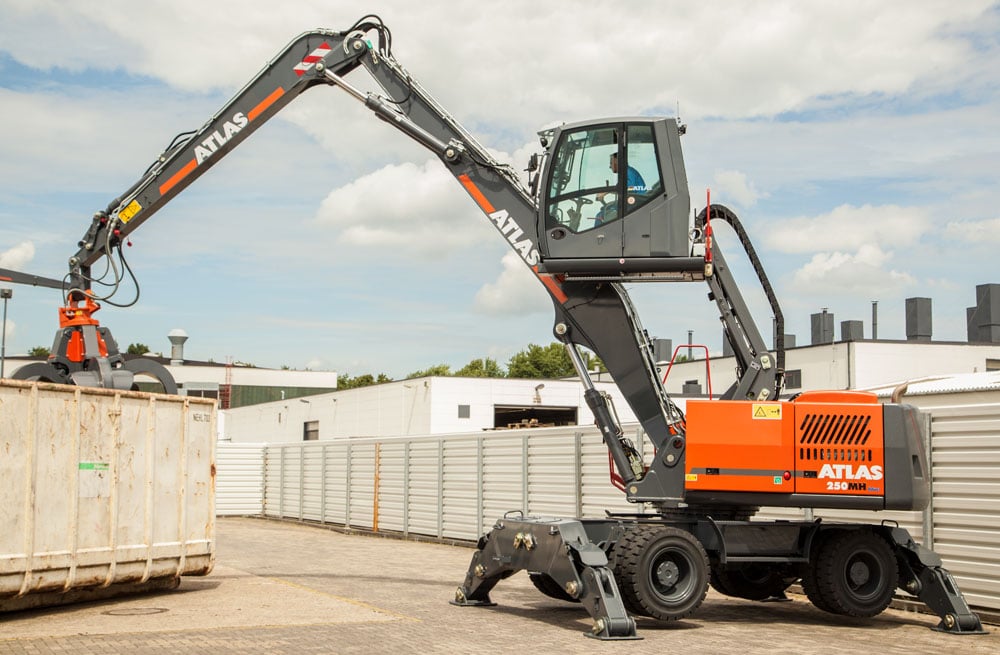

250 MH Atlas Excavator Specs & Dimensions - (2015 - 2019)

The 250 MH wheel excavator model is manufactured by Atlas. Find and download detailed specs and data sheets for this machine here.…

The 250 MH wheel excavator model is manufactured by Atlas. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Cummins engine, this 250 MH 25t machine can provide 116kW or 155 horse power for the wheel excavator. The 250 MH is categorised in the biggest machine segment in the wheel excavators category. The model's dimensions are 5.025m x 2.5m x 3.11m.

The Atlas 250 MH has been equipped and sold with Aircondition, Overload alert and Material Handling Excavator. Quick hitch mech., Quick hitch hydr. And Diesel particulate filter are not provided on this model as of 2017. There are more detailed specifications and machine descriptions available in the original Atlas 250 MH specs data sheet. Specification sheet is available for a free download in German - providing the machine descriptions and more detailed specs about this particular model.

The production is still going in 2017, where this 250 MH is available at a new list price between €305000 and €389000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 14 other wheel excavators, which range from 14.9t up to 52t are produced by Atlas. Of these, 1404 ZW, 350 MH and also 1604 ZW are the most frequently visited on LECTURA Specs. Ranked in the LECTURA index at #84, this 250 MH wheel excavator has models that date from 2015 to 2017. Want more detailed specifications? Download the latest Atlas 250 MH specs data sheet on LECTURA Specs today!

Wheel Excavators Atlas 250 MH

Visit Atlas live at

Technical specs - 250 MH Atlas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
25 t
Standard tyres
10.00-20
Bucket capacity
1 m³
Boom
MB
Outrigger stabilisers
4 2/4-fold
Transport length
5.025 m
Transport width
2.5 m
Transport height
3.11 m
Max. Reach horizontal
12.65 m
Travel speed
20 km/h
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
129 kW
Displacement
6.7 l
Revolutions at max torque
1800 rpm
No. of cylinders
6
Emission level
Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
Yes
Overload alert
Yes
Material Handling Excavator
Yes
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Atlas 250 MH FAQ

When was the Atlas 250 MH manufactured?

The Atlas 250 MH was manufactured from 2015 to 2019.

How much does the Atlas 250 MH wheel excavator weigh?

The Atlas 250 MH wheel excavator weighs 25 tons.

What are the transport dimensions of the Atlas 250 MH wheel excavator?

The Atlas 250 MH has a transport length of 5.03 meters, a transport width of 2.5 meters, and a transport height of 3.11 meters.

What is the travel speed of the Atlas 250 MH wheel excavator?

The Atlas 250 MH wheel excavator has a travel speed of 20 km/h.

What are the undercarriage specifications of the Atlas 250 MH wheel excavator?

The Atlas 250 MH wheel excavator is equipped with 10.00-20 standard tyres and has 4 outrigger stabilisers.

What are the excavation performance specifications of the Atlas 250 MH wheel excavator?

The Atlas 250 MH has a maximum horizontal reach of 12.65 meters and is equipped with a monobloc boom.

What is the bucket capacity of the Atlas 250 MH wheel excavator?

The bucket capacity of the Atlas 250 MH wheel excavator is 1 cubic meter.

How much is a Atlas 250 MH Wheel excavator (2015u20132019) worth?

The residual value of the Atlas 250 MH depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
