220 W Atlas Excavator Specs & Dimensions - (2014 - 2019)

Model rating
5,00 / 10

The 220 W wheel excavator model is manufactured by Atlas. Find and download detailed specs and data sheets for this machine here. …

The 220 W wheel excavator model is manufactured by Atlas. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Cummins engine, this 220 W 22.8t machine can provide 129kW or 172 horse power for the wheel excavator. This Atlas wheel excavator belongs to the biggest machine segment in the wheel excavators category. The 220 W’s size is 2.75m x 9.75m x 3.08m. The bucket capacity of 220 W is 1,14m³, which is above average for this type of machine.

Since 2010, this model has included Blade, Aircondition and Overload alert. It does not include Track guidance, Quick hitch hydr. And Material Handling Excavator. There are more detailed specifications and machine descriptions available in the original Atlas 220 W specs data sheet. Available in German, English and French, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

The production is still going in 2017, where this 220 W is available at a new list price between €272000 and €346000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Atlas models of this type on LECTURA Specs are the 1604 ZW, 350 MH and 1404 ZW, and 14 other wheel excavators, which currently range from 14.9t up to 52t are also available. Ranked in the LECTURA index at #96, this 220 W wheel excavator has models that date from 2010 to 2017. Want more detailed specifications? Download the latest Atlas 220 W specs data sheet on LECTURA Specs today!

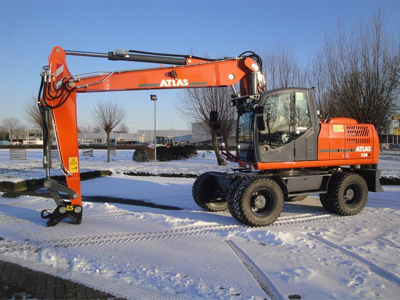

Wheel Excavators Atlas 220 W
Wheel Excavators Atlas 220 W
Wheel Excavators Atlas 220 W
Wheel Excavators Atlas 220 W

Visit Atlas live at

Technical specs - 220 W Atlas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.8 t
Standard tyres
10.00-20
Bucket capacity
1.14 m³
Boom
VA
Outrigger stabilisers
2/4 2/4-fold
Transport length
9.75 m
Transport width
2.75 m
Transport height
3.08 m
Max. Reach horizontal
10.25 m
Dredging depth
6.5 m
Tear-out force
110 kN
Bucket width
1.3 m
Travel speed
20 km/h
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
129 kW
Displacement
6.7 l
Revolutions at max torque
1800 rpm
No. of cylinders
6
Emission level
Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, max. torque, cylinder bore x stroke, number of articulated booms, total number of dippers - articulated, dipper length - standard articulated...

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, max. torque, cylinder bore x stroke, number of articulated booms, total number of dippers - articulated, dipper length - standard articulated, telematics available, platform, emission rating, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, overall width, machine width - maximum, wheelbase, tailswing radius, cab height, ground clearance, overall width - stabilisers down, standard dipper length, longest dipper length, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, artic boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
Yes
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Atlas 220 W FAQ

When was the Atlas 220 W manufactured?

The Atlas 220 W was manufactured from 2014 to 2019.

How much does the Atlas 220 W wheel excavator weigh?

The Atlas 220 W wheel excavator weighs 22.8 tons.

What are the transport dimensions of the Atlas 220 W wheel excavator?

The Atlas 220 W has a transport length of 9.75 meters, a transport width of 2.75 meters, and a transport height of 3.08 meters.

What is the travel speed of the Atlas 220 W wheel excavator?

The Atlas 220 W wheel excavator has a travel speed of 20 km/h.

What are the undercarriage specifications of the Atlas 220 W wheel excavator?

The Atlas 220 W wheel excavator is equipped with standard tyres sized 10.00-20 and features 2/4-fold outrigger stabilisers.

What are the excavation performance specifications of the Atlas 220 W wheel excavator?

The Atlas 220 W wheel excavator has a dredging depth of 6.5 meters, a maximum horizontal reach of 10.25 meters, and features an adjustable boom.

What is the tear-out force of the Atlas 220 W wheel excavator?

The Atlas 220 W wheel excavator has a tear-out force of 110 kN.

What are the specifications of the primary work tool bucket on the Atlas 220 W wheel excavator?

The primary work tool bucket of the Atlas 220 W has a capacity of 1.14 cubic meters and a width of 1.3 meters.

How much is a Atlas 220 W Wheel excavator (2014u20132019) worth?

The residual value of the Atlas 220 W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
