TB 230 Takeuchi excavator specs & dimensions (2016 - 2026)

Takeuchi TB 230 is a mini excavator manufactured since 2016. It has a weight of 2.88 tons and a track width of 300 mm. The transpo…

Takeuchi TB 230 is a mini excavator manufactured since 2016. It has a weight of 2.88 tons and a track width of 300 mm. The transport dimensions are 4.59 meters in length, 1.46 meters in width, and 2.54 meters in height. The machine features a tear-out force of 21 kN, a dredging depth of 2.83 meters, and a maximum horizontal reach of 4.85 meters. It is equipped with a blade as special equipment.

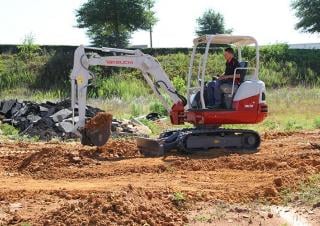

Mini Excavators Takeuchi TB 230

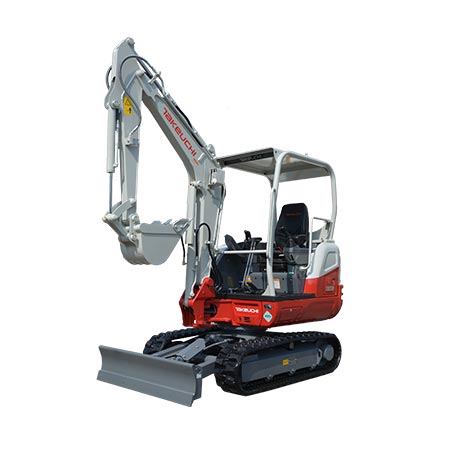

Mini Excavators Takeuchi TB 230

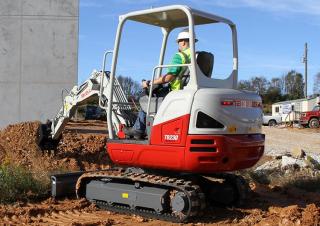

Mini Excavators Takeuchi TB 230
Mini Excavators Takeuchi TB 230
Mini Excavators Takeuchi TB 230
Mini Excavators Takeuchi TB 230
Mini Excavators Takeuchi TB 230
Mini Excavators Takeuchi TB 230

Technical specs - TB 230 Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.88 t
Transport length
4.59 m
Transport width
1.46 m
Transport height
2.54 m
Track width
300 mm
Driver protection
FD
Max. Reach horizontal
4.85 m
Dredging depth
2.83 m
Tear-out force
21 kN
Model series
TB
Engine manuf.
Yanmar
Engine type
3TNV88F
Engine power
18.2 kW
Displacement
1.3 l
Revolutions at max torque
2400 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Takeuchi TB 230 FAQ

When was the Takeuchi TB 230 manufactured?

The Takeuchi TB 230 was first produced in 2016.

How much does the Takeuchi TB 230 weigh?

The Takeuchi TB 230 weighs 2.88 tons.

What are the transport dimensions of the Takeuchi TB 230 mini excavator?

The Takeuchi TB 230 has a transport length of 4.59 meters, a transport width of 1.46 meters, and a transport height of 2.54 meters.

What is the track width of the Takeuchi TB 230's undercarriage?

The Takeuchi TB 230 has a track width of 300 mm on its undercarriage.

What are the excavation performance specifications of the Takeuchi TB 230 mini excavator?

The Takeuchi TB 230 mini excavator has a dredging depth of 2.83 meters and a maximum horizontal reach of 4.85 meters.

What is the tear-out force of the Takeuchi TB 230?

The Takeuchi TB 230 has a tear-out force of 21 kN.

What operator safety and support features does the Takeuchi TB 230 have?

The Takeuchi TB 230 is equipped with a canopy for driver protection.

How much is a Takeuchi TB 230 Mini excavator (2016u20132025) worth?

The residual value of the Takeuchi TB 230 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
