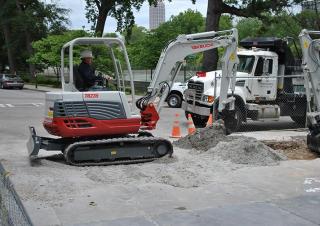

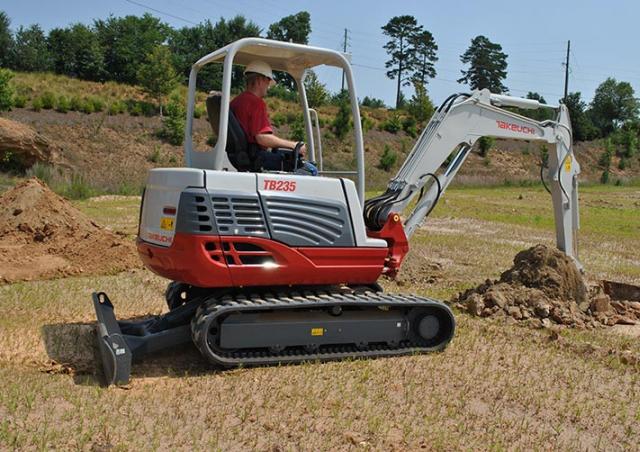

TB 235 Takeuchi excavator specs & dimensions (2008 - 2020)
.jpg)
.jpg)
Technical specs - TB 235 Takeuchi
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 3.53 t
- Transport length
- 5.02 m
- Transport width
- 1.63 m
- Transport height
- 2.45 m
- Bucket capacity
- 0.06 m³
- Track width
- 350 mm
- Driver protection
- Kb
- Max. Reach horizontal
- 5.35 m
- Dredging depth
- 3.4 m
- Tear-out force
- 27 kN
- Model series
- TB
- Engine manuf.
- Yanmar
- Engine type
- 4TNV94L
- Engine power
- 21.3 kW
- Displacement
- 1.642 l
- Revolutions at max torque
- 2400 rpm
More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with standard bucket
Special equipment
- Track adjustment
-
No
- Rubber track
-
Yes
- Blade
-
Yes
- Aircondition
-
Yes
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
Download datasheets (PDF)
Takeuchi TB 235 FAQ
How much does the Takeuchi TB 235 weigh?
What are the transport dimensions of the Takeuchi TB 235 mini excavator?
What is the track width of the Takeuchi TB 235 mini excavator?
What are the excavation performance specifications of the Takeuchi TB 235 mini excavator?
What is the power rating of the Takeuchi TB 235?
What is the bucket capacity of the Takeuchi TB 235 mini excavator?
What driver protection feature does the Takeuchi TB 235 have?
How much is a Takeuchi TB 235 Mini excavator (2008u20132020) worth?
