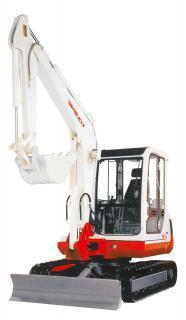

    Takeuchi TB 145 excavator specs (1998 - 2004)

    Rate this machine now!

    Takeuchi is the manufacturer of the mini excavator model TB 145. Find and download detailed specs and data sheets for this machine... Read more

    Takeuchi is the manufacturer of the mini excavator model TB 145. Find and download detailed specs and data sheets for this machine here.

    The Takeuchi TB 145 is a 4.74t machine with Yanmar engine which powers this model with up to 28kW or 37 horse power. The TB 145 is categorised in the biggest machine segment in the mini excavators category. The model's dimensions are 5.52m x 1.84m x 2.55m. The bucket of TB 145 has a capacity of 0.06m³ which is average for this type of machine.

    The Takeuchi TB 145 has been equipped and sold with Rubber track and Blade. It does not include Aircondition, Quick hitch mech. And Track adaption. There are more detailed specifications and machine descriptions available in the original Takeuchi TB 145 specs data sheet. You can download it for free in English and German on LECTURA Specs.

    This model can be acquired for a list price between €63000 and €81000. Production of the TB 145 stopped in 2004. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

    Takeuchi currently produces 18 other mini excavators, which range from 1.1t up to 5.7t - the most visited on LECTURA Specs are TB 260, TB 215 R, TB 240. Throughout the production cycle of this TB 145 mini excavator, there have been around 18 models that average a price of €20000 for an age of 14 years Want more detailed specifications? Download the latest Takeuchi TB 145 specs data sheet on LECTURA Specs today!


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 4.74 t
    • Transport length 5.52 m
    • Transport width 1.84 m
    • Transport height 2.55 m
    • Bucket capacity 0.06 m³
    • Track width 400 mm
    • Driver protection Kb
    • Engine manuf. Yanmar
    • Engine type 4TNE88TB
    • Engine power 28 kW

    More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, max. reach horizontal, dredging depth, tear-out force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

    Show more

    Basic model with standard bucket

    Special equipment

    • Track adjustment
    • Rubber track
    • Blade
    • Aircondition
    • Quick hitch hydr.
    • Quick hitch mech.

    Carbon footprint calculator for Mini Excavators

    Use the ERA equipment CO2 Calculator to find out the CO2 emissions per hour of use of the Takeuchi TB 145 or other Mini Excavators.

    The carbon emission calculation can be carried out considering different biofuel scenarios or other variables.

    or go to the ERA Equipment CO2 Calculator to find out how to optimise your CO2 emissions.

    service provided by ERA

    Takeuchi TB 145 overview

    • Takeuchi TB 145 features overview

      Tiltable TOPS/FOPS cab, electro-hydraulic push buttons control Auxiliary hydraulics, emergency engine shutdown/return to Idle system, Electronic engine monitoring system, cast iron, wrap around Protective counterweight, Steel engine cover, Automatic fuel deflation system, Variable lift variable displacement piston pumps, Safety lock lever for travel and operator controls, Remote rotation greasing system, Dual mode of travel, Two way auxiliary hydraulics plowed to the dipper arm, Double flange track rollers, Spring applied, Hydraulically released disc type Turning and parking brakes, Precise response, proportional main control valves, Simultaneous operation of cabin swings and two digging functions without reduction in speed, Straight travel with simultaneous operation of dig and rocker functions, Cushion Main Boom, Arm & Swing Cylinder, Hydraulic oil cooler, Protective guidance of bucket and arm cylinder hydraulic hoses, Pilot operated joystick checks with arm rest, Stem boom cylinder protection, Low noise level and EPA fully compliant (EPO) Engine retractable Excavator System
    • Tyres / Tracks

      Boom-mounted work lights, side mounted swing lights, short pitch rubber tracks, 3 year warranty, TKB201 hydraulic breaker, steel rails, Augers, quickhitch
    • Dimensions and weight

      Operating Weight (kg)4740Max. Dig Depth3810
      Length (transport)5520Max. Dump Height4170
      Width1840Max. reach at ground level6015
      Height2555Max. Vertical Dig Depth3050
      Ground Clearance335Max. Bucket Dig Force (Kn)36.5
      Min front swing radiusMax. Arm Dig Force (Kn)25.4
      (800 boom swing)1680UNDERCARRIAGE
      Tail swing radius1470Traction MotorAxial Piston
      Dozer Blade (wxh)1840x430Traction DrivePlanetary
      ENGINETraction BrakeDisc
      Make/ModelYanmar4TNE88-TBTrack Width400
      Rated Output/RPM27.9kW/2300Ground Contact Length1985
      Maximum Torque145.1NmGround Pressure (kpa)27.3
      Cylinders/Displacement Electrical System4/2190cc 12volt 40ampTravel Speed (K/ph) Maximum Gradeability3.0/5.2 300
      Boom Swing angle (L/R)800 /600Set Pressure (bar)210
      Slew Speed (rpm)9.9Pump TypeVariable(P1+P2)+Gear(P3)
      Slew MotorAxial PistonHydraulic Flow (l/min)55.9x2+32.4
      Slew BrakeDiscAuxiliary Flow (l/min)59
      CAPACITIES (l)
      Hydraulic system115
      Fuel tank74
      Engine Lubrication5.8
    • Other features

      ECHIFICATION EXCAVATOR The TB145 of the Takeuchi offers power and operator comfort at an operating weight of 4760kg. With two speed travel on rubber tracks with a powerful economical 27th 9kw diesel engine is unpacked with a fully equipped cab that includes AM/FM radio and heater, as well as the smoothest controls in business. Maintenance. Fully sloped cabin allows excellent access for easy comparison of standard features with the competition, add legendary Japanese construction quality and reliability, and there's really no contest. EASY ENGINE ACCESS AND MAINTENANCE
