TB 153 FR Takeuchi excavator specs & dimensions (2006 - 2020)

Model rating
8,33 / 10

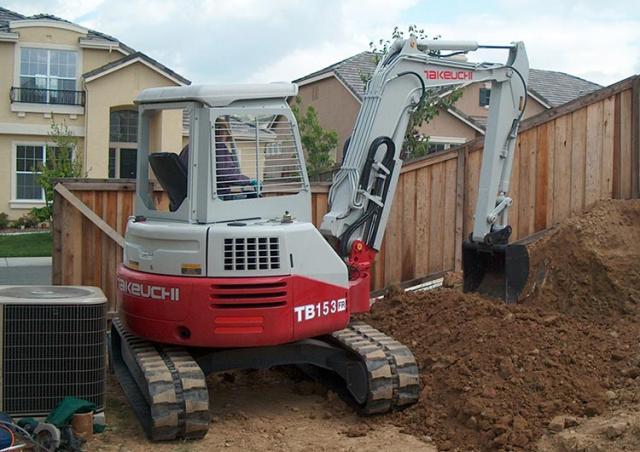

Takeuchi TB 153 FR is a mini excavator manufactured from 2006 to 2020. It has a weight of 5.6 tons and a track width of 400 mm. Th…

Takeuchi TB 153 FR is a mini excavator manufactured from 2006 to 2020. It has a weight of 5.6 tons and a track width of 400 mm. The transport dimensions are 5.33 meters in length, 2 meters in width, and 2.58 meters in height. The machine features a tear-out force of 36 kN, a dredging depth of 3 meters, and a maximum horizontal reach of 6.1 meters. The bucket capacity is 0.14 cubic meters. Special equipment includes a blade and rubber tracks.

Mini Excavators Takeuchi TB 153 FR
Mini Excavators Takeuchi TB 153 FR
Mini Excavators Takeuchi TB 153 FR
Mini Excavators Takeuchi TB 153 FR

Technical specs - TB 153 FR Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.6 t
Transport length
5.33 m
Transport width
2 m
Transport height
2.58 m
Bucket capacity
0.14 m³
Track width
400 mm
Driver protection
Kb
Max. Reach horizontal
6.1 m
Dredging depth
3.59 m
Tear-out force
36 kN
Model series
TB
Engine manuf.
Yanmar
Engine type
4TNV88
Engine power
29.3 kW
Displacement
2.189 l
Revolutions at max torque
2400 rpm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Takeuchi TB 153 FR FAQ

When was the Takeuchi TB 153 FR manufactured?

The Takeuchi TB 153 FR was manufactured from 2006 to 2020.

How much does the Takeuchi TB 153 FR weigh?

The Takeuchi TB 153 FR weighs 5.6 tons.

What are the transport dimensions of the Takeuchi TB 153 FR mini excavator?

The Takeuchi TB 153 FR has a transport length of 5.33 meters, a transport width of 2 meters, and a transport height of 2.58 meters.

What is the track width of the Takeuchi TB 153 FR's undercarriage?

The Takeuchi TB 153 FR has a track width of 400 mm.

What are the excavation performance specifications of the Takeuchi TB 153 FR mini excavator?

The Takeuchi TB 153 FR has a dredging depth of 3.59 meters and a maximum horizontal reach of 6.1 meters.

What is the tear-out force of the Takeuchi TB 153 FR?

The Takeuchi TB 153 FR has a tear-out force of 36 kN.

What is the bucket capacity of the Takeuchi TB 153 FR mini excavator?

The bucket capacity of the Takeuchi TB 153 FR mini excavator is 0.14 cubic meters.

What operator safety and support features does the Takeuchi TB 153 FR have?

The Takeuchi TB 153 FR has a cabin for driver protection.
