6MCR Mecalac excavator specs & dimensions (2013 - 2020)

Mecalac 6MCR is a mini excavator manufactured from 2013 to 2020, with a weight of 5.7 t. It features a track width of 400 mm, a tr…

Mecalac 6MCR is a mini excavator manufactured from 2013 to 2020, with a weight of 5.7 t. It features a track width of 400 mm, a transport length of 2.76 m, a transport width of 2.03 m, and a transport height of 2.59 m. The machine has a tear-out force of 25 kN and a bucket capacity of 0.185 m³. Special equipment includes a blade and a hydraulic quick hitch.

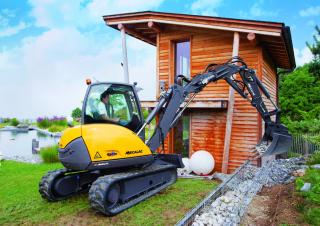

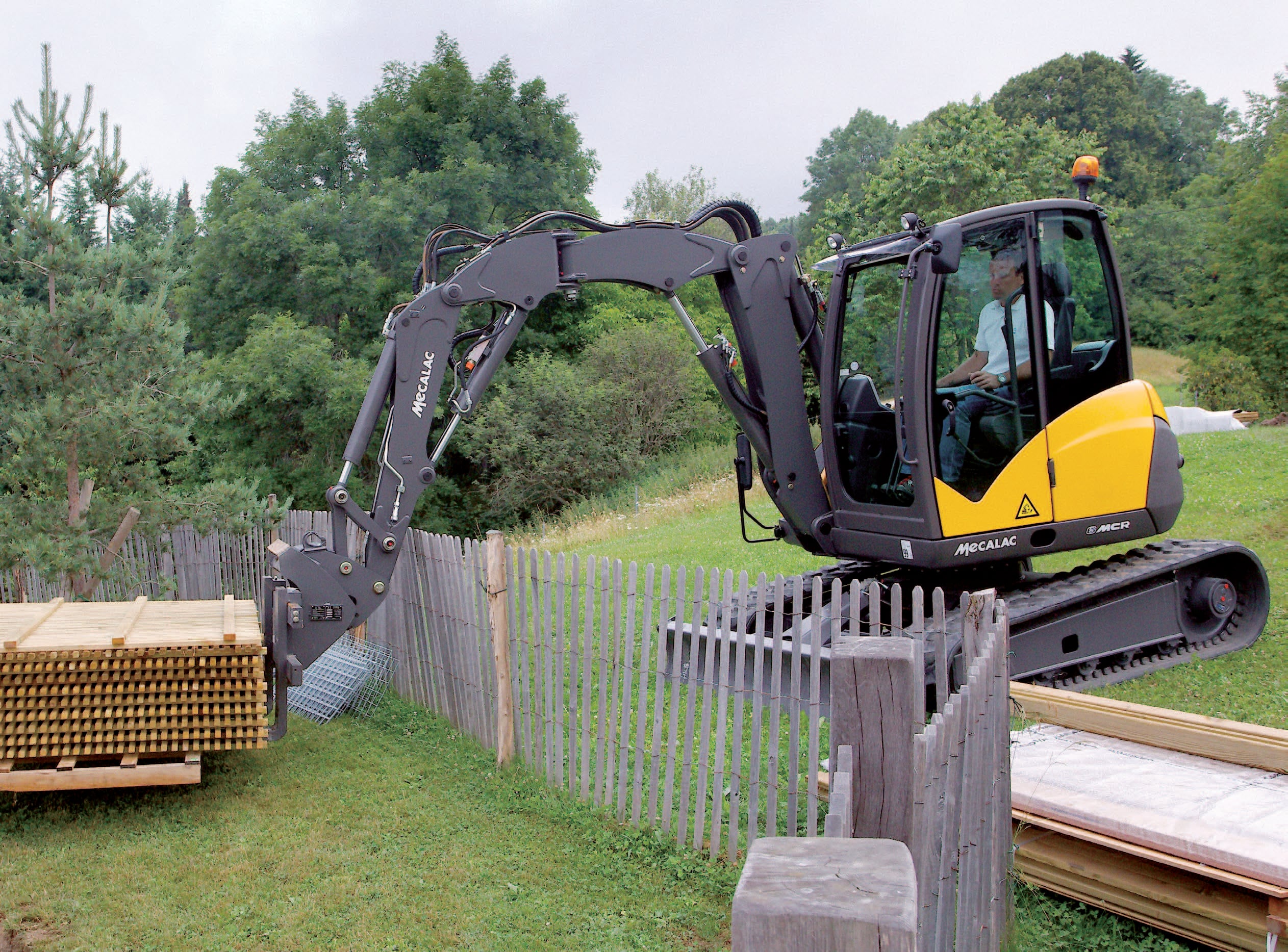

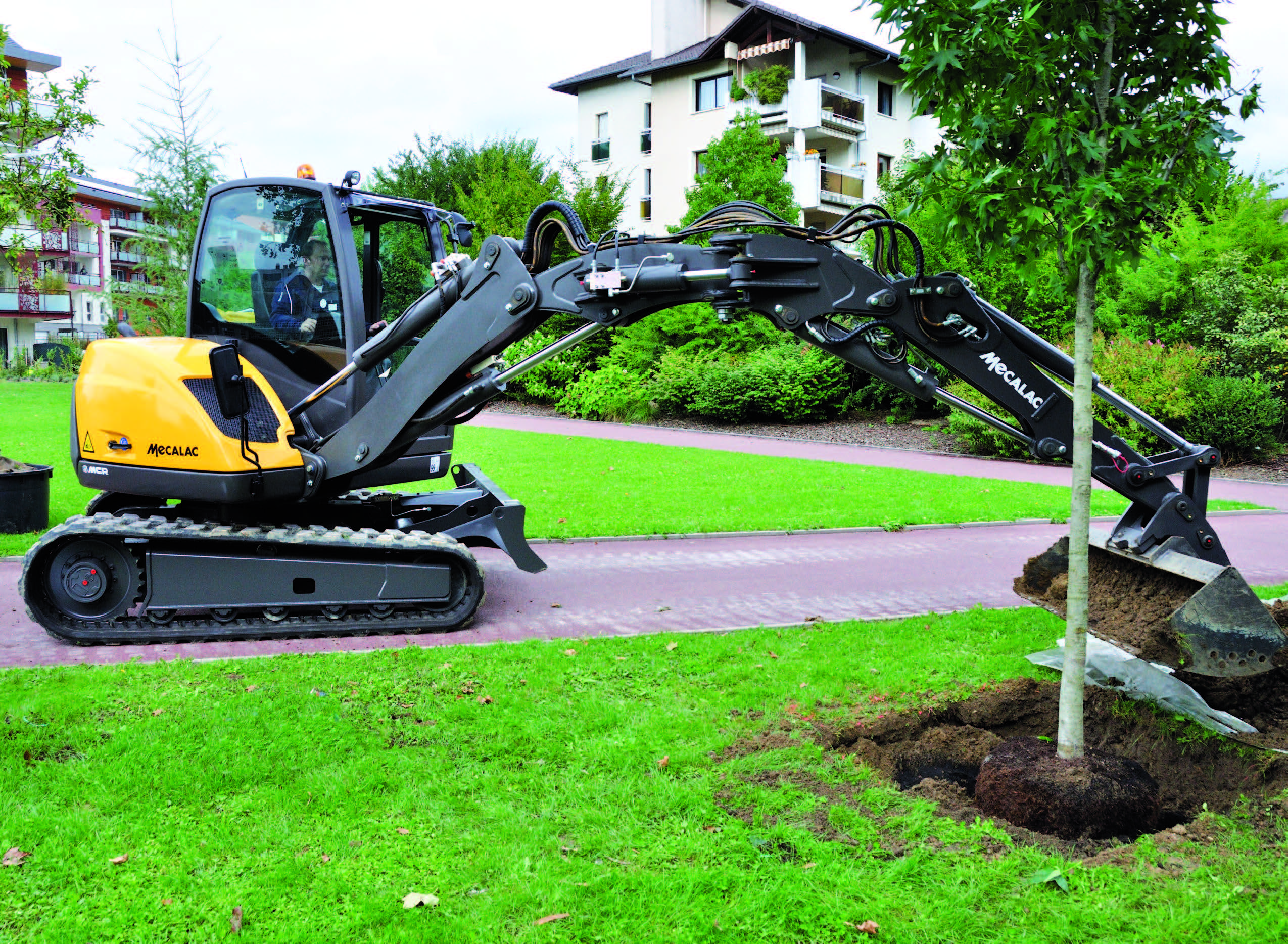

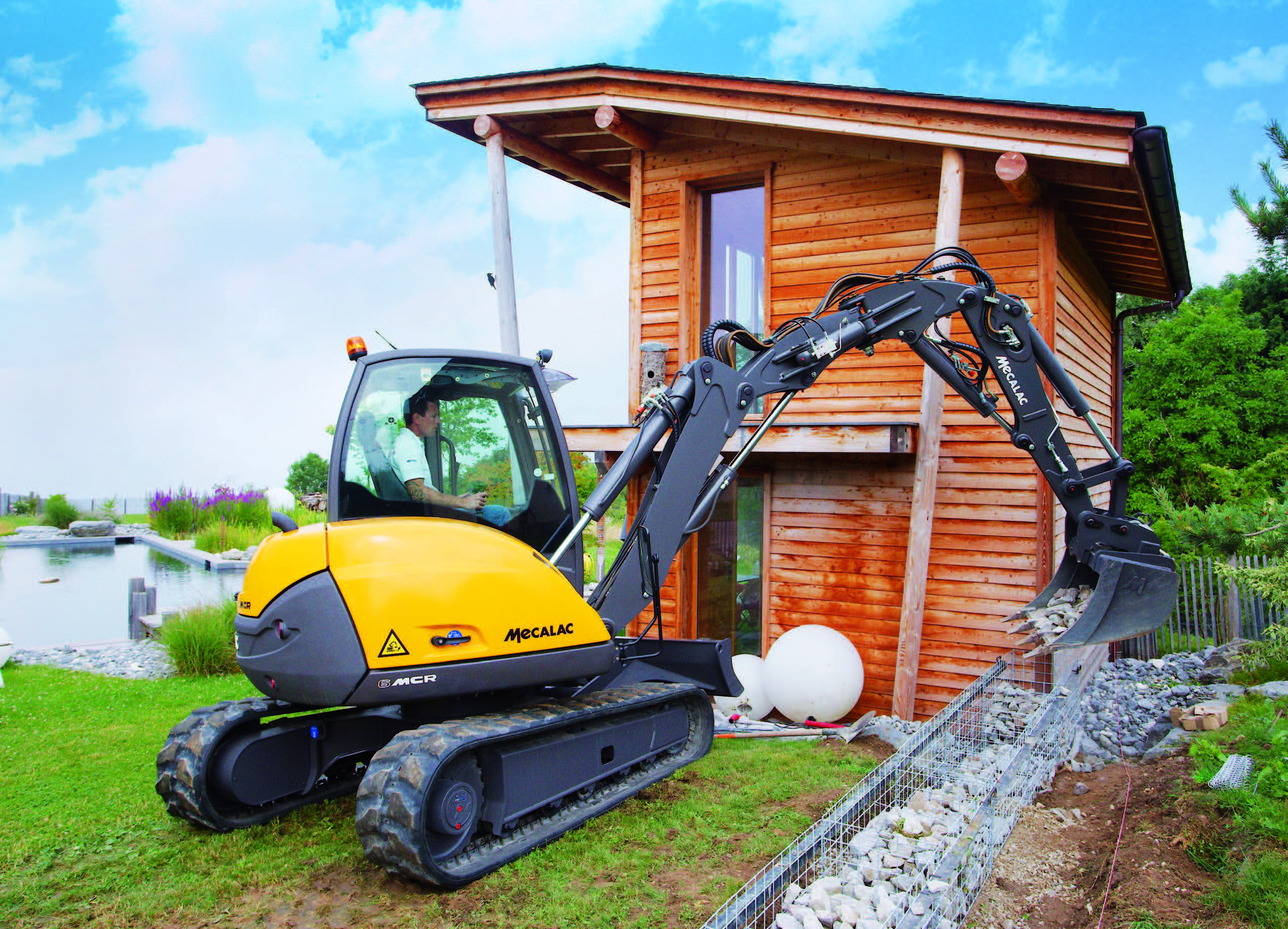

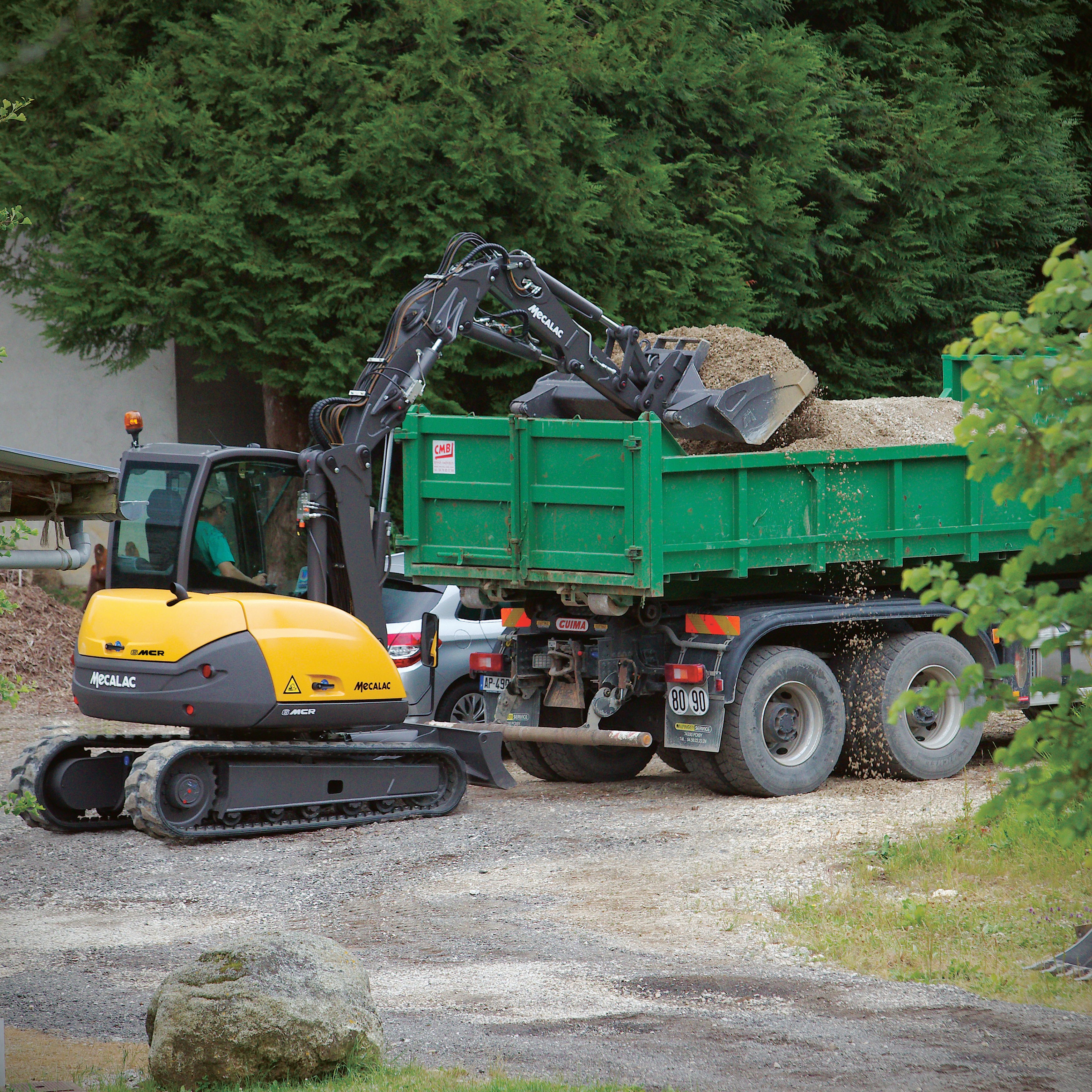

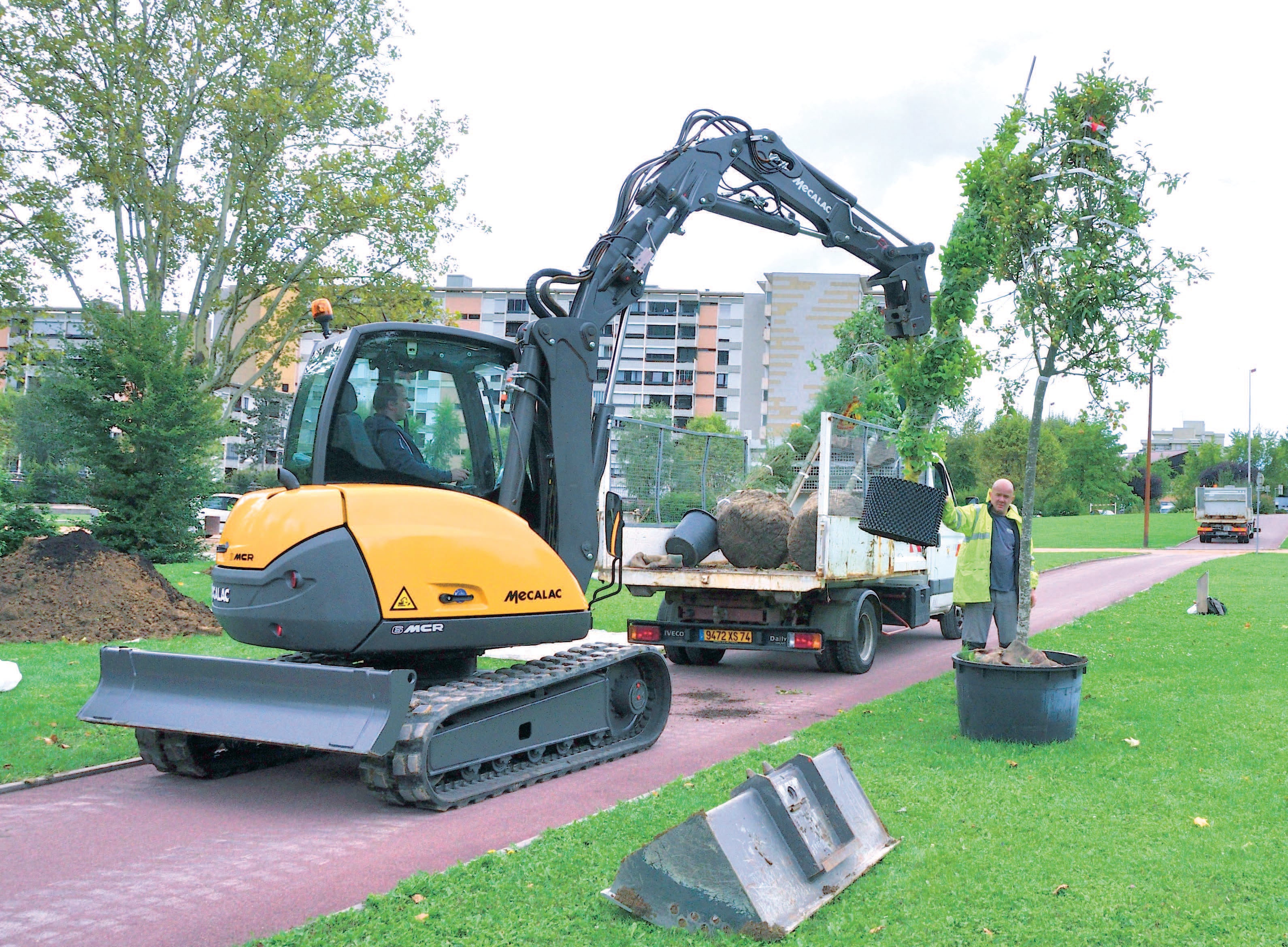

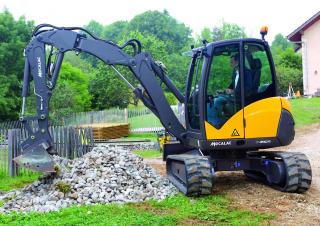

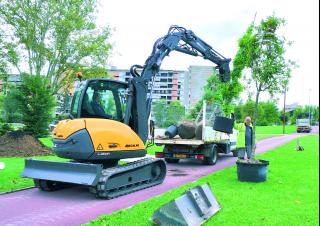

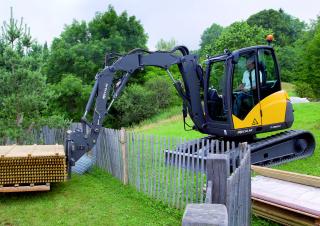

Mini Excavators Mecalac 6MCR
Mini Excavators Mecalac 6MCR
Mini Excavators Mecalac 6MCR
Mini Excavators Mecalac 6MCR
Mini Excavators Mecalac 6MCR
Mini Excavators Mecalac 6MCR
Mini Excavators Mecalac 6MCR
Mini Excavators Mecalac 6MCR
Mini Excavators Mecalac 6MCR
Mini Excavators Mecalac 6MCR
Mini Excavators Mecalac 6MCR
Mini Excavators Mecalac 6MCR
Mini Excavators Mecalac 6MCR
Mini Excavators Mecalac 6MCR

Technical specs - 6MCR Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.7 t
Transport length
2.76 m
Transport width
2.03 m
Transport height
2.59 m
Bucket capacity
0.185 m³
Bucket width
0.6 m
Track width
400 mm
Max. Reach horizontal
6.22 m
Dredging depth
3.3 m
Tear-out force
25 kN
Model series
MCR
Engine manuf.
Deutz
Engine type
TD2.9 L4
Engine power
55 kW
Revolutions at max torque
1600 rpm
No. of cylinders
4

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, driver protection, dimension lxwxh, displacement, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Mecalac 6MCR FAQ

When was the Mecalac 6MCR manufactured?

The Mecalac 6MCR was manufactured from 2013 to 2020.

How much does the Mecalac 6MCR weigh?

The Mecalac 6MCR weighs 5.7 tons.

What are the transport dimensions of the Mecalac 6MCR mini excavator?

The Mecalac 6MCR has a transport length of 2.76 meters, a transport width of 2.03 meters, and a transport height of 2.59 meters.

What is the track width of the Mecalac 6MCR mini excavator's undercarriage?

The Mecalac 6MCR mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Mecalac 6MCR mini excavator?

The Mecalac 6MCR mini excavator has a dredging depth of 3.3 meters and a maximum horizontal reach of 6.22 meters.

What is the tear-out force of the Mecalac 6MCR mini excavator?

The Mecalac 6MCR has a tear-out force of 25 kN.

What are the specifications of the primary work tool bucket on the Mecalac 6MCR mini excavator?

The primary work tool bucket of the Mecalac 6MCR has a capacity of 0.185 cubic meters and a width of 0.6 meters.
