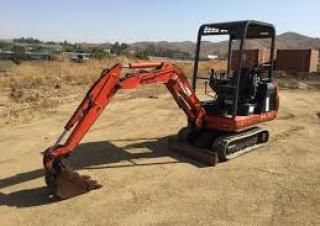

T-15S Thomas excavator specs & dimensions (2001 - 2007)

Thomas T-15S is a mini excavator manufactured from 2001 to 2007. It has a weight of 3.3 tons and a track width of 230 mm. The tran…

Thomas T-15S is a mini excavator manufactured from 2001 to 2007. It has a weight of 3.3 tons and a track width of 230 mm. The transport dimensions are 3.8 meters in length, 1 meter in width, and 2.1 meters in height. The machine features a tear-out force of 14 kN, a dredging depth of 2.5 meters, and a maximum horizontal reach of 4 meters. The bucket width is 0.4 meters with a capacity of 0.04 cubic meters. Special equipment includes a blade.

Mini Excavators Thomas T-15S

Technical specs - T-15S Thomas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.3 t
Transport length
3.8 m
Transport width
1 m
Transport height
2.1 m
Bucket capacity
0.04 m³
Bucket width
0.4 m
Track width
230 mm
Driver protection
Kb
Max. Reach horizontal
4 m
Dredging depth
2.5 m
Tear-out force
14 kN
Engine manuf.
Isuzu
Engine type
3YCI
Engine power
12.5 kW
Displacement
9 l
Revolutions at max torque
2400 rpm
No. of cylinders
3

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, model series, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Thomas T-15S FAQ

When was the Thomas T-15S manufactured?

The Thomas T-15S was manufactured from 2001 to 2007.

How much does the Thomas T-15S mini excavator weigh?

The Thomas T-15S mini excavator weighs 3.3 tons.

What are the transport dimensions of the Thomas T-15S mini excavator?

The Thomas T-15S has a transport length of 3.8 meters, a transport width of 1 meter, and a transport height of 2.1 meters.

What is the track width of the Thomas T-15S mini excavator?

The Thomas T-15S mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Thomas T-15S mini excavator?

The Thomas T-15S mini excavator has a dredging depth of 2.5 meters and a maximum horizontal reach of 4 meters.

What is the tear-out force of the Thomas T-15S mini excavator?

The Thomas T-15S mini excavator has a tear-out force of 14 kN.

What are the bucket specifications of the Thomas T-15S mini excavator?

The Thomas T-15S mini excavator has a bucket capacity of 0.04 cubic meters and a bucket width of 0.4 meters.

What operator safety feature does the Thomas T-15S have?

The Thomas T-15S has a cabin for driver protection.

How much is a Thomas T-15S Mini excavator (2001u20132007) worth?

The residual value of the Thomas T-15S depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Thomas T-15S overview

Thomas T-15S features overview

Ii The Tl 5 moy be smoll in stotur, bu don'l let its size fool you. This Excovolor is not fie iob silen. Driven by o robust l7 HP (12.5 kwl fluid cooled diesel, fie Tl5 Sl 0 powerful 3175 Lbs. (1440 kg. L the breok oil force, enough to muste ibwoyilr If you have to go fte exlro distonce, fie Tl 5 will give you with its fi (25S0 mml digging depth Ftere (11) with itsfi (25S0 mml digging depth. Thott more thon o foot (305 mml Det Other covolors in ib closse. Slzell ton i j, Designed for tight oreos, fie Tl 5 series gives you the biofiing spoice n0 miles as narrowly located on the factory oreo so close to the working point. Avoilobolble in lden models, they have developed (0-70 Choose from the Be all of them and are built onto a small one side frame

no rI imp on Seiles feotures ftrough ony iob. ;full I fi.-5,6 inch eeper fton mosl UIMAIGIITII RETIABITY AIIII SERUICE... (Ompccl in size, bd large on totol Service oaessibility. 0pen unob$rubbd spoce is who l wyl the you tif up the Self Locking Engine Rover. To ensure a cool Operalion in oll weother Condiion or if with oil oxmenls like Oshydruulic Breokers Tl5 Sedes is equipped with o high Copacity Hydroulic Oil Radiator. Torod of Service even Wifi o centrolised lubligation syslem which Mokes swing-fiom Beoring Lubricoloion o breeze has

Dimensions and weight

T15 ST15 V
A. Maximum digging height mm (in.)"3650 (143.7)3650 (143.7)
B. Maximum dump height mm (in.)"2540 (100)2540 (100)
C. Maximum digging depth mm (in.)"2580 (101.6)2580 (101.6)
D. Maximum vertical wall digging depth mm (in.)"1970 (77.6)1970 (77.6)
E. Maximum digging radius mm (in.)"4095 (161.2)4095 (161.2)
F. Overall length mm (in.)"3820 (150.4)3820 (150.4)
G. Distance between idler sprocket centers mm (in.)"1130 (44.5)1130 (44.5)
H. Rear turning radius mm (in.)"1140 (44.9)1140 (44.9)
1. Maximum blade lift above ground mm (in.)"185 (7.3)185 (7.3)
J. Maximum blade drop below grade mm (in.)"270 (10.6)270 (10.6)
K. Bucket width mm (in.)"400 (15.7)400 (15.7)
L Track width mm (in.)"230 (9.1)230 (9.1)
M. Overall width - retracted mm (in.)"1000 (39.4)1020 (40.2)
- extended mm (in.)"NA1300 (51.2)
N. Overall height mm (in.)"2175 (85.6)2175 (85.6)
