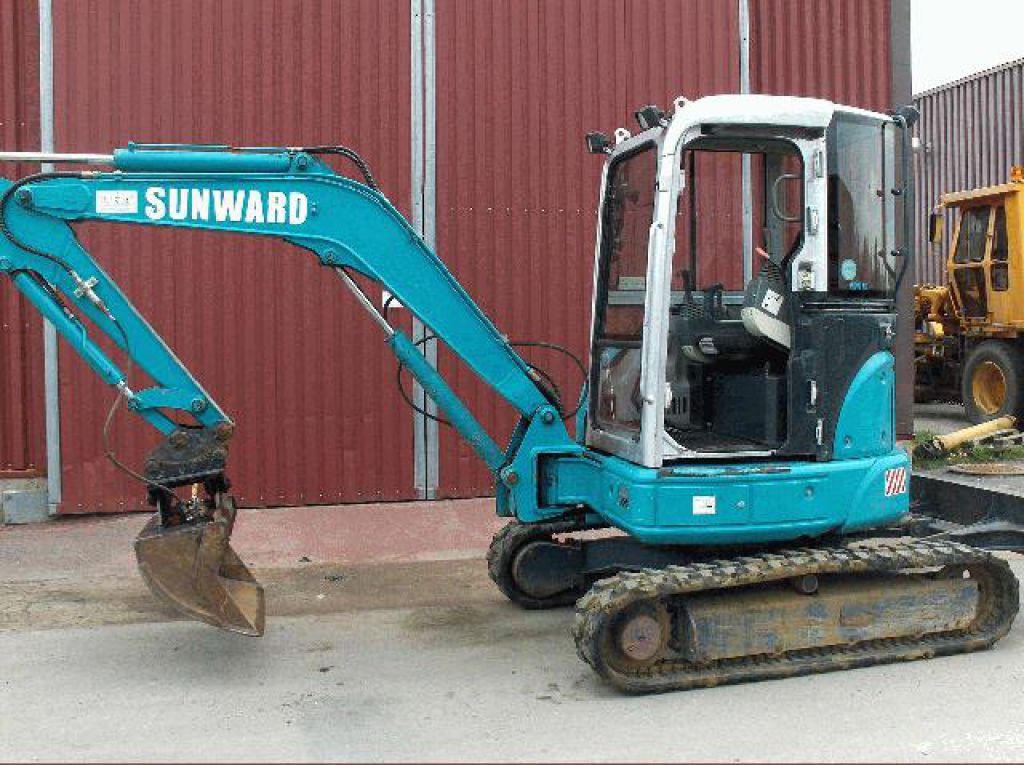

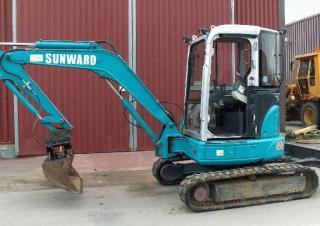

SWE 38 Sunward excavator specs & dimensions (2006 - 2007)

Sunward SWE 38 is a mini excavator manufactured from 2006 to 2007, with a weight of 3.8 tons. It has a transport length of 4.92 me…

Sunward SWE 38 is a mini excavator manufactured from 2006 to 2007, with a weight of 3.8 tons. It has a transport length of 4.92 meters, a transport width of 1.74 meters, and a transport height of 2.54 meters. The bucket capacity is 0.11 cubic meters. Special equipment includes air conditioning, rubber tracks, and track adjustment.

Mini Excavators Sunward SWE 38

Technical specs - SWE 38 Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.8 t
Transport length
4.92 m
Transport width
1.74 m
Transport height
2.54 m
Bucket capacity
0.11 m³
Driver protection
Kb
Dredging depth
3.08 m
Model series
SWE
Engine manuf.
Perkins
Engine type
403C-15
Engine power
22.3 kW

More technical details, like: bucket capacity min., bucket capacity max., bucket width, track width, standard tyres, max. reach horizontal, tear-out force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: bucket capacity min., bucket capacity max., bucket width, track width, standard tyres, max. reach horizontal, tear-out force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Sunward SWE 38 FAQ

When was the Sunward SWE 38 manufactured?

The Sunward SWE 38 was manufactured from 2006 to 2007.

How much does the Sunward SWE 38 mini excavator weigh?

The Sunward SWE 38 mini excavator weighs 3.8 tons.

What are the transport dimensions of the Sunward SWE 38 mini excavator?

The Sunward SWE 38 has a transport length of 4.92 meters, a transport width of 1.74 meters, and a transport height of 2.54 meters.

What is the dredging depth of the Sunward SWE 38 mini excavator?

The Sunward SWE 38 mini excavator has a dredging depth of 3.08 meters.

What is the bucket capacity of the Sunward SWE 38 mini excavator?

The Sunward SWE 38 mini excavator has a bucket capacity of 0.11 cubic meters.

What operator safety feature does the Sunward SWE 38 mini excavator have?

The Sunward SWE 38 mini excavator features a cabin for driver protection.

How much is a Sunward SWE 38 Mini excavator (2006u20132007) worth?

The residual value of the Sunward SWE 38 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Machine inspection

Ask for inspection of your Sunward SWE 38 from experts

Machine inspection

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Enquire machine inspection

Provided by: Mevas — The Heavy Equipment Inspectors

Buy & Rent

Mini Excavator Buyers Guide - price ranges of new and used models

At LECTURA we check information since 40 years and based on this infromation, we can support sellers with pricing lists of used mini excavators, such as Sunward SWE 38.

Check what new and used models of mini excavators you can get in each price range:

Data provided by Lectura logo

Compare Sunward SWE 38 with similar Mini Excavators

Sunward SWE 38

Sunward SWE 38

Weight:
3.8 t
Transport length:
4.92 m
Transport width:
1.74 m
Transport height:
2.54 m
Develon DX35Z

Develon DX35Z

Weight:
3.66 t
Transport length:
4.645 m
Transport width:
1.5 m
Transport height:
2.515 m
Yanmar B 5

Yanmar B 5

Weight:
4.45 t
Transport width:
1.84 m
Liugong 9035E

Liugong 9035E

Weight:
3.86 t
Transport length:
4.81 m
Transport width:
1.7 m
Transport height:
2.5 m
