TB 350 R Takeuchi excavator specs & dimensions (2023 - 2026)

Weight: 5.085t – Transport length: 5.39m – Transport width: 2m – Transport height: 2.565m – Bucket capacity: 0.141m³ – Bucket capa…

Weight: 5.085t – Transport length: 5.39m – Transport width: 2m – Transport height: 2.565m – Bucket capacity: 0.141m³ – Bucket capacity max.: 0.141m³

Check out detailed specifications, information and technical data for Takeuchi TB 350 R excavator manufactured between 2023 - 2026. Get more in-depth insight with Takeuchi TB 350 R digger specifications. See information, like: Weight: 5.085t – Transport length: 5.39m – Transport width: 2m – Transport height: 2.565m – Bucket capacity: 0.141m³ – Bucket capacity max.: 0.141m³ and more.

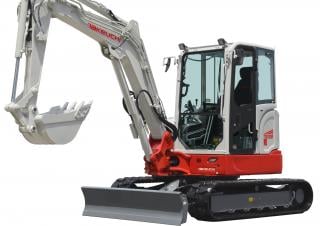

Mini Excavators Takeuchi TB 350 R

Technical specs - TB 350 R Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.085 t
Transport length
5.39 m
Transport width
2 m
Transport height
2.565 m
Bucket capacity
0.141 m³
Bucket capacity max.
0.141 m³
Track width
400 mm
Max. Reach horizontal
6.065 m
Dredging depth
3.575 m
Tear-out force
54.8 kN
Model series
TB
Engine manuf.
Kubota
Engine type
V2607
Engine power
32.4 kW
Revolutions at max torque
2000 rpm
Max. torque
180.1 Nm
Emission level
V/Tier 4

More technical details, like: bucket capacity min., bucket width, standard tyres, driver protection, dimension lxwxh, displacement, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Takeuchi TB 350 R FAQ

When was the Takeuchi TB 350 R manufactured?

The Takeuchi TB 350 R was first produced in 2023.

How much does the Takeuchi TB 350 R weigh?

The Takeuchi TB 350 R weighs 5.09 tons.

What are the transport dimensions of the Takeuchi TB 350 R mini excavator?

The Takeuchi TB 350 R has a transport length of 5.39 meters, a transport width of 2 meters, and a transport height of 2.57 meters.

What is the track width of the Takeuchi TB 350 R mini excavator?

The Takeuchi TB 350 R mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Takeuchi TB 350 R?

The Takeuchi TB 350 R has a dredging depth of 3.575 meters and a maximum horizontal reach of 6.065 meters.

What is the tear-out force of the Takeuchi TB 350 R mini excavator?

The Takeuchi TB 350 R mini excavator has a tear-out force of 54.8 kN.

What are the bucket capacity and maximum bucket capacity specifications of the Takeuchi TB 350 R mini excavator?

The Takeuchi TB 350 R has a bucket capacity of 0.141 cubic meters and a maximum bucket capacity of 0.14 cubic meters.
