TB 260 Takeuchi excavator specs & dimensions (2024 - 2026)

Weight: 5.5t – Transport length: 5.55m – Transport width: 2m – Transport height: 2.575m – Bucket capacity: 0.168m³ – Track width: …

Weight: 5.5t – Transport length: 5.55m – Transport width: 2m – Transport height: 2.575m – Bucket capacity: 0.168m³ – Track width: 400mm

Check out detailed specifications, information and technical data for Takeuchi TB 260 excavator manufactured between 2024 - 2026. Get more in-depth insight with Takeuchi TB 260 digger specifications. See information, like: Weight: 5.5t – Transport length: 5.55m – Transport width: 2m – Transport height: 2.575m – Bucket capacity: 0.168m³ – Track width: 400mm and more.

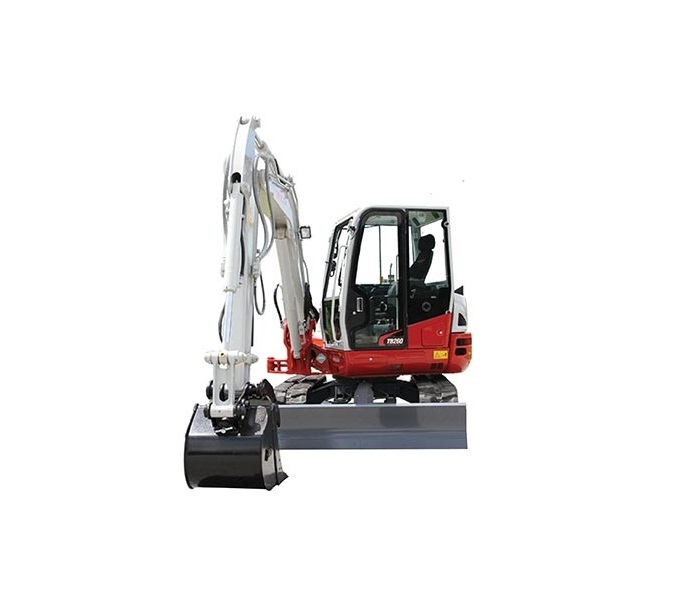

Mini Excavators Takeuchi TB 260
Mini Excavators Takeuchi TB 260
Mini Excavators Takeuchi TB 260
Mini Excavators Takeuchi TB 260
Mini Excavators Takeuchi TB 260
Mini Excavators Takeuchi TB 260
Mini Excavators Takeuchi TB 260
Mini Excavators Takeuchi TB 260

Technical specs - TB 260 Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.5 t
Transport length
5.55 m
Transport width
2 m
Transport height
2.575 m
Bucket capacity
0.168 m³
Track width
400 mm
Driver protection
FD
Max. Reach horizontal
6.13 m
Dredging depth
3.895 m
Tear-out force
43.2 kN
Model series
TB
Engine manuf.
Yanmar
Engine type
4TNV86CT
Engine power
35.5 kW
Displacement
2.091 l
Max. torque
177/1560 Nm
No. of cylinders
4
Emission level
EU V / EPA Tier 4

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Takeuchi TB 260 FAQ

When was the Takeuchi TB 260 manufactured?

The Takeuchi TB 260 was first produced in 2024.

How much does the Takeuchi TB 260 weigh?

The Takeuchi TB 260 weighs 5.5 tons.

What are the transport dimensions of the Takeuchi TB 260 mini excavator?

The Takeuchi TB 260 has a transport length of 5.55 meters, a transport width of 2 meters, and a transport height of 2.575 meters.

What is the track width of the Takeuchi TB 260 mini excavator?

The Takeuchi TB 260 mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Takeuchi TB 260 mini excavator?

The Takeuchi TB 260 mini excavator has a dredging depth of 3.895 meters and a maximum horizontal reach of 6.13 meters.

What is the tear-out force of the Takeuchi TB 260 mini excavator?

The Takeuchi TB 260 mini excavator has a tear-out force of 43.2 kN. No power rating data is provided in the available information.

What is the bucket capacity of the Takeuchi TB 260 mini excavator?

The Takeuchi TB 260 mini excavator has a bucket capacity of 0.168 cubic meters.

What operator safety and support features does the Takeuchi TB 260 have?

The Takeuchi TB 260 is equipped with a canopy for driver protection.
