TB 250-2 Takeuchi excavator specs & dimensions (2024 - 2026)

Weight: 5.12t – Transport length: 5.495m – Transport width: 1.84m – Transport height: 2.57m – Track width: 400mm – Driver protecti…

Weight: 5.12t – Transport length: 5.495m – Transport width: 1.84m – Transport height: 2.57m – Track width: 400mm – Driver protection: FD

Check out detailed specifications, information and technical data for Takeuchi TB 250-2 excavator manufactured between 2024 - 2026. Get more in-depth insight with Takeuchi TB 250-2 digger specifications. See information, like: Weight: 5.12t – Transport length: 5.495m – Transport width: 1.84m – Transport height: 2.57m – Track width: 400mm – Driver protection: FD and more.

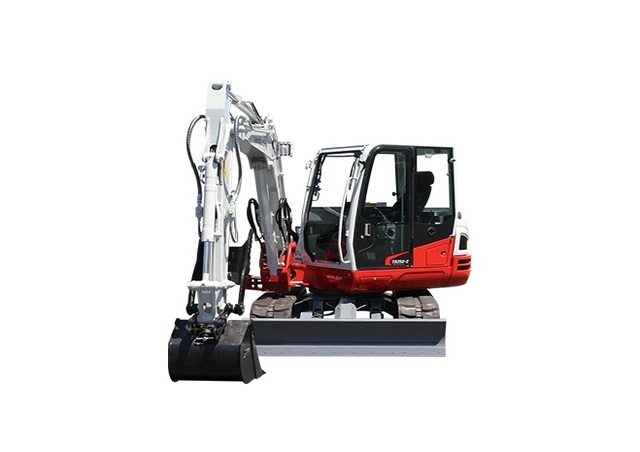

Mini Excavators Takeuchi TB 250-2

Technical specs - TB 250-2 Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.12 t
Transport length
5.495 m
Transport width
1.84 m
Transport height
2.57 m
Track width
400 mm
Driver protection
FD
Max. Reach horizontal
5.985 m
Dredging depth
3.78 m
Tear-out force
37.3 kN
Model series
TB
Engine manuf.
Yanmar
Engine type
4TNV88C
Engine power
29.1 kW
Displacement
2.189 l
Revolutions at max torque
2400 rpm
Max. torque
144.9 Nm
Emission level
EU V / EPA Tier 4 C

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Takeuchi TB 250-2 FAQ

When was the Takeuchi TB 250-2 manufactured?

The Takeuchi TB 250-2 was first produced in 2024.

How much does the Takeuchi TB 250-2 weigh?

The Takeuchi TB 250-2 weighs 5.12 tons.

What are the transport dimensions of the Takeuchi TB 250-2 mini excavator?

The Takeuchi TB 250-2 has a transport length of 5.495 meters, a transport width of 1.84 meters, and a transport height of 2.57 meters.

What is the track width of the Takeuchi TB 250-2 mini excavator?

The Takeuchi TB 250-2 mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Takeuchi TB 250-2?

The Takeuchi TB 250-2 has a dredging depth of 3.78 meters and a maximum horizontal reach of 5.985 meters.

What is the tear-out force of the Takeuchi TB 250-2 mini excavator?

The Takeuchi TB 250-2 mini excavator has a tear-out force of 37.3 kN.

What operator safety and support features does the Takeuchi TB 250-2 have?

The Takeuchi TB 250-2 provides operator protection with a canopy.

How much is a Takeuchi TB 250-2 Mini excavator (2024u20132025) worth?

The residual value of the Takeuchi TB 250-2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
