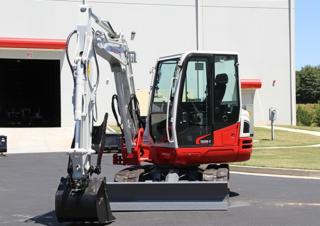

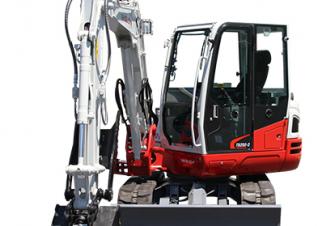

TB 250-2 Takeuchi excavator specs & dimensions (2019 - 2026)

Takeuchi TB 250-2 is a Mini Excavator manufactured since 2019. It has a weight of 5.12 tons and a track width of 400 mm. The trans…

Takeuchi TB 250-2 is a Mini Excavator manufactured since 2019. It has a weight of 5.12 tons and a track width of 400 mm. The transport dimensions are 5.46 meters in length, 1.84 meters in width, and 2.555 meters in height. The machine features a tear-out force of 37.3 kN, a dredging depth of 3.62 meters, and a maximum horizontal reach of 5.84 meters. The bucket capacity is 0.141 cubic meters, and it comes equipped with a blade.

TB 250-2

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TB 250-2 Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.12 t

Transport length: 5.46 m

Transport width: 1.84 m

Transport height: 2.555 m

Bucket capacity: 0.141 m³

Track width: 400 mm

Driver protection: FD/Kb

Max. Reach horizontal: 5.84 m

Dredging depth: 3.62 m

Tear-out force: 37.3 kN

Model series: TB

Engine manuf.: Yanmar

Engine type: 4TNV88C

Engine power: 29.1 kW

Displacement: 2.189 l

Revolutions at max torque: 1560 rpm

Max. torque: 144.9 Nm

Emission level: Tier 4/Stage V

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: No
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Takeuchi TB 250-2 FAQ

When was the Takeuchi TB 250-2 manufactured?

The Takeuchi TB 250-2 was first produced in 2019.

How much does the Takeuchi TB 250-2 weigh?

The Takeuchi TB 250-2 weighs 5.12 tons.

What are the transport dimensions of the Takeuchi TB 250-2 mini excavator?

The Takeuchi TB 250-2 has a transport length of 5.46 meters, a transport width of 1.84 meters, and a transport height of 2.56 meters.

What is the track width of the Takeuchi TB 250-2 mini excavator?

The Takeuchi TB 250-2 mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Takeuchi TB 250-2 mini excavator?

The Takeuchi TB 250-2 mini excavator has a dredging depth of 3.62 meters and a maximum horizontal reach of 5.84 meters.

What is the tear-out force of the Takeuchi TB 250-2 mini excavator?

The Takeuchi TB 250-2 mini excavator has a tear-out force of 37.3 kN.

What is the bucket capacity of the Takeuchi TB 250-2 mini excavator?

The Takeuchi TB 250-2 mini excavator has a bucket capacity of 0.141 cubic meters.

What operator safety and support features does the Takeuchi TB 250-2 have?

The Takeuchi TB 250-2 provides operator safety with both canopy and cabin protection.

How much is a Takeuchi TB 250-2 Mini excavator (2019u20132025) worth?

The residual value of the Takeuchi TB 250-2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Takeuchi TB 250-2 overview

Environment

established policy of continued improvement, specifications and features are subject to
- 2019 Takeuchi MFG. Co., Ltd. All rights reserved. According to our change without notice. Pictures may show options other than standard equipment.

Tyres / Tracks

Large Floor with Foot Rest Wraparound Counterweight Triple Flanged Track Rollers Hydraulic Joystick Controls

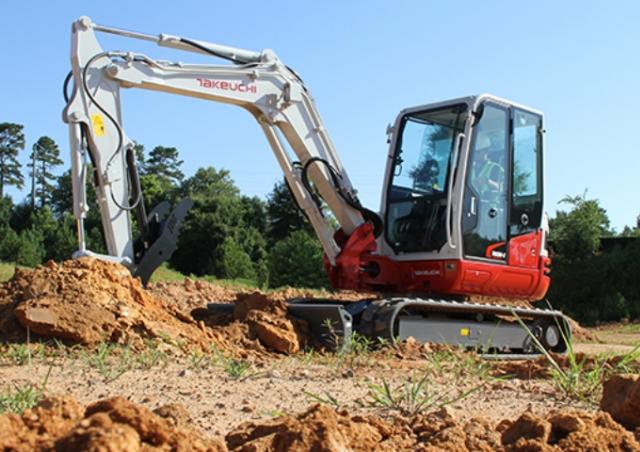

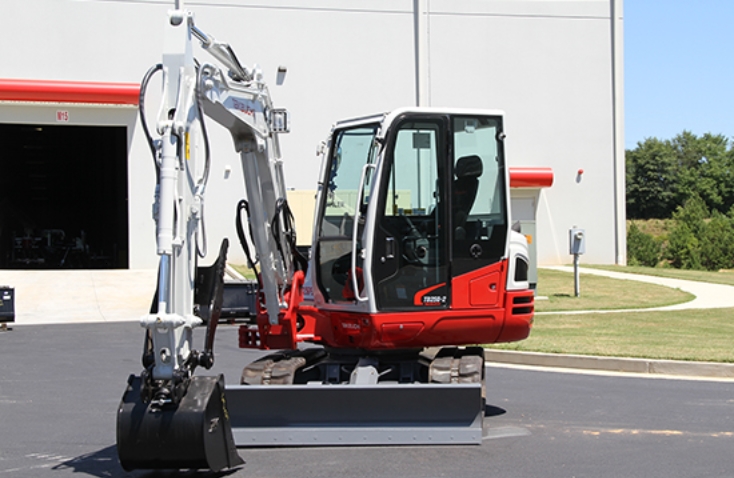

With outstanding performance and versatility, the TB250-2 is one of Takeuchi's most popular conventional rear swing excavators.

Dimensions and weight

OPERATING PERFORMANCE
Operating Weight - Cab	5	120 kg"
Canopy	4	970 kg"
Bucket Capacity (Heaped)	0.141 m³
Slew Speed	9.5 min-1
Travel Speed
1st	2.8 km/h
2nd	5.2 km/h
Gradeability	30°
Ground Pressure - Cab	30 kPa
Ground Pressure - Canopy	29 kPa
Max Bucket Breakout Force	37.3 kN
Max Arm Digging Force (1	600 mm Arm)"	24.8 kN
Max Arm Digging Force (1	760 mm Arm)"	23.4 kN
Traction Force	54.8 kN
Boom Swing Angle (Left / Right)	75° / 60°

MACHINE DIMENSIONS,"1,600 mm Arm	1,760 mm Arm"
A Maximum Reach,"5,980 mm	6,120 mm"
B Maximum Reach at Ground Level,"5,840 mm	5,985 mm"
C Maximum Digging Depth,"3,620 mm	3,780 mm"
D Maximum Vertical Digging Depth,"2,860 mm	2,985 mm"
E Maximum Height of Cutting Edge,"5,580 mm	5,655 mm"
F Maximum Dumping Height,"3,965 mm	4,045 mm"
G Front Swing Radius,"2,320 mm	2,330 mm"
H Front Swing Radius with Boom Offset,"1,840 mm	1,850 mm"
