TB 250 Takeuchi excavator specs & dimensions (2024 - 2026)

Weight: 4.965t – Transport length: 5.51m – Transport width: 1.84m – Transport height: 2.515m – Bucket capacity: 0.141m³ – Track wi…

Weight: 4.965t – Transport length: 5.51m – Transport width: 1.84m – Transport height: 2.515m – Bucket capacity: 0.141m³ – Track width: 400mm

Check out detailed specifications, information and technical data for Takeuchi TB 250 excavator manufactured between 2024 - 2026. Get more in-depth insight with Takeuchi TB 250 digger specifications. See information, like: Weight: 4.965t – Transport length: 5.51m – Transport width: 1.84m – Transport height: 2.515m – Bucket capacity: 0.141m³ – Track width: 400mm and more.

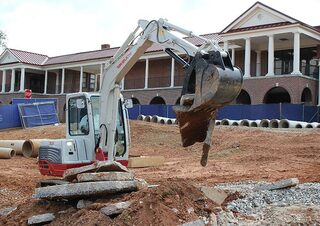

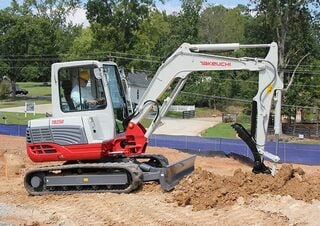

Mini Excavators Takeuchi TB 250
Mini Excavators Takeuchi TB 250
Mini Excavators Takeuchi TB 250
Mini Excavators Takeuchi TB 250
Mini Excavators Takeuchi TB 250
Mini Excavators Takeuchi TB 250

Technical specs - TB 250 Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.965 t
Transport length
5.51 m
Transport width
1.84 m
Transport height
2.515 m
Bucket capacity
0.141 m³
Track width
400 mm
Driver protection
FD/Kb
Max. Reach horizontal
5.85 m
Dredging depth
3.625 m
Tear-out force
37.2 kN
Model series
TB
Engine manuf.
Yanmar
Engine type
4TNV88
Engine power
29.5 kW
Displacement
2.19 l
Revolutions at max torque
2400 rpm
Max. torque
143.4 Nm
Emission level
EU III A/ EPA I Tier 4

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Takeuchi TB 250 FAQ

When was the Takeuchi TB 250 manufactured?

The Takeuchi TB 250 was first produced in 2024.

How much does the Takeuchi TB 250 weigh?

The Takeuchi TB 250 weighs 4.965 tons.

What are the transport dimensions of the Takeuchi TB 250 mini excavator?

The Takeuchi TB 250 has a transport length of 5.51 meters, a transport width of 1.84 meters, and a transport height of 2.515 meters.

What is the track width of the Takeuchi TB 250 mini excavator?

The Takeuchi TB 250 mini excavator has a track width of 400 mm.

What is the excavation performance of the Takeuchi TB 250 mini excavator?

The Takeuchi TB 250 mini excavator has a dredging depth of 3.625 meters and a maximum horizontal reach of 5.85 meters.

What is the tear-out force of the Takeuchi TB 250 mini excavator?

The Takeuchi TB 250 mini excavator has a tear-out force of 37.2 kN. No power rating data is provided for this model.

What is the bucket capacity of the Takeuchi TB 250 mini excavator?

The bucket capacity of the Takeuchi TB 250 mini excavator is 0.141 cubic meters.

What are the operator safety and support features of the Takeuchi TB 250?

The Takeuchi TB 250 has driver protection features including a canopy and a cabin.

How much is a Takeuchi TB 250 Mini excavator (2024u20132025) worth?
