TB 228 Takeuchi excavator specs & dimensions (2025 - 2026)

Weight: 2.77t – Transport length: 4.405m – Transport width: 1.45m – Transport height: 2.445m – Bucket capacity: 0.05m³ – Track wid…

Weight: 2.77t – Transport length: 4.405m – Transport width: 1.45m – Transport height: 2.445m – Bucket capacity: 0.05m³ – Track width: 300mm

Check out detailed specifications, information and technical data for Takeuchi TB 228 excavator manufactured between 2025 - 2026. Get more in-depth insight with Takeuchi TB 228 digger specifications. See information, like: Weight: 2.77t – Transport length: 4.405m – Transport width: 1.45m – Transport height: 2.445m – Bucket capacity: 0.05m³ – Track width: 300mm and more.

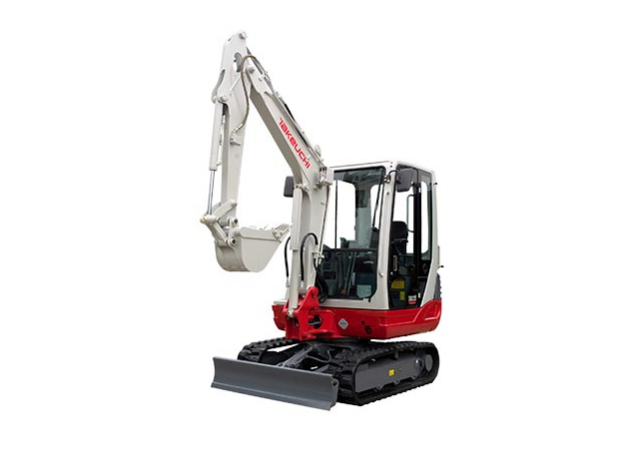

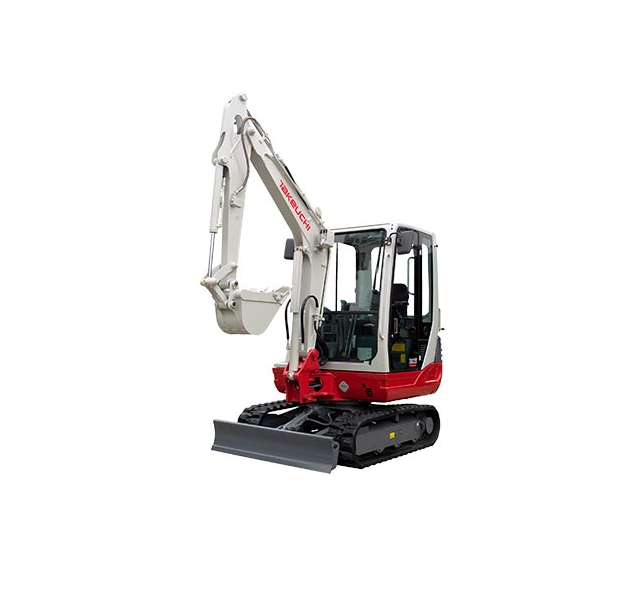

Mini Excavators Takeuchi TB 228

Technical specs - TB 228 Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.77 t
Transport length
4.405 m
Transport width
1.45 m
Transport height
2.445 m
Bucket capacity
0.05 m³
Track width
300 mm
Driver protection
FD
Max. Reach horizontal
4.57 m
Dredging depth
2.565 m
Model series
TB
Engine manuf.
Yanmar
Engine type
3TNV82A
Engine power
17.8 kW
Displacement
1.331 l
Revolutions at max torque
2400 rpm
Max. torque
85.3 Nm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, tear-out force, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Takeuchi TB 228 FAQ

When was the Takeuchi TB 228 manufactured?

The Takeuchi TB 228 was first produced in 2025.

How much does the Takeuchi TB 228 weigh?

The Takeuchi TB 228 weighs 2.77 tons.

What are the transport dimensions of the Takeuchi TB 228 mini excavator?

The Takeuchi TB 228 has a transport length of 4.405 meters, a transport width of 1.45 meters, and a transport height of 2.445 meters.

What is the track width of the Takeuchi TB 228 mini excavator's undercarriage?

The Takeuchi TB 228 mini excavator has a track width of 300 mm.

What is the excavation performance of the Takeuchi TB 228 mini excavator?

The Takeuchi TB 228 has a dredging depth of 2.565 meters and a maximum horizontal reach of 4.57 meters.

What is the bucket capacity of the Takeuchi TB 228 mini excavator?

The Takeuchi TB 228 mini excavator has a bucket capacity of 0.05 cubic meters.

What operator safety and support features does the Takeuchi TB 228 have?

The Takeuchi TB 228 is equipped with a canopy for driver protection.

How much is a Takeuchi TB 228 Mini excavator (2025u20132025) worth?

The residual value of the Takeuchi TB 228 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
