TB 228 Takeuchi excavator specs & dimensions (2008 - 2025)

Model rating
7,00 / 10

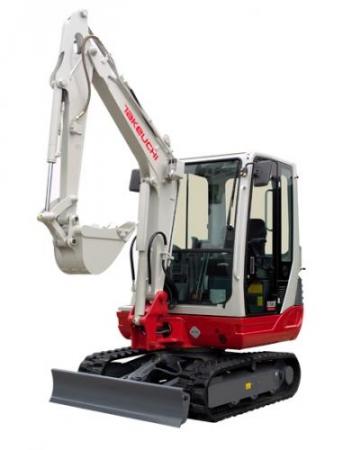

Takeuchi TB 228 is a mini excavator manufactured since 2008. It has a weight of 2.8 tons and a track width of 300 mm. The transpor…

Takeuchi TB 228 is a mini excavator manufactured since 2008. It has a weight of 2.8 tons and a track width of 300 mm. The transport dimensions are 4.46 meters in length, 1.45 meters in width, and 2.445 meters in height. The machine features a tear-out force of 21 kN, a dredging depth of 2.88 meters, and a maximum horizontal reach of 4.72 meters. The bucket capacity is 0.05 cubic meters. Special equipment includes air conditioning, a blade, and rubber tracks.

Mini Excavators Takeuchi TB 228

Technical specs - TB 228 Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.8 t
Transport length
4.46 m
Transport width
1.45 m
Transport height
2.445 m
Bucket capacity
0.05 m³
Track width
300 mm
Driver protection
Kb
Max. Reach horizontal
4.72 m
Dredging depth
2.88 m
Tear-out force
21 kN
Model series
TB
Engine manuf.
Yanmar
Engine type
3TNE82A
Engine power
18 kW
Displacement
1.33 l
Revolutions at max torque
2400 rpm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Takeuchi TB 228 FAQ

When was the Takeuchi TB 228 manufactured?

The Takeuchi TB 228 was manufactured from 2008 to 2025.

How much does the Takeuchi TB 228 weigh?

The Takeuchi TB 228 weighs 2.8 tons.

What are the transport dimensions of the Takeuchi TB 228 mini excavator?

The Takeuchi TB 228 has a transport length of 4.46 meters, a transport width of 1.45 meters, and a transport height of 2.45 meters.

What is the track width of the Takeuchi TB 228 mini excavator?

The Takeuchi TB 228 mini excavator has a track width of 300 mm.

What are the dredging depth and maximum horizontal reach of the Takeuchi TB 228 mini excavator?

The Takeuchi TB 228 mini excavator has a dredging depth of 2.88 meters and a maximum horizontal reach of 4.72 meters.

What is the tear-out force of the Takeuchi TB 228?

The Takeuchi TB 228 has a tear-out force of 21 kN.

What is the bucket capacity of the Takeuchi TB 228 mini excavator?

The Takeuchi TB 228 mini excavator has a bucket capacity of 0.05 cubic meters.

What operator safety and support features does the Takeuchi TB 228 have?

The Takeuchi TB 228 provides operator safety with a cabin for driver protection.

How much is a Takeuchi TB 228 Mini excavator (2008u20132025) worth?

The residual value of the Takeuchi TB 228 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
