TB 216 S Takeuchi excavator specs & dimensions (2013 - 2026)

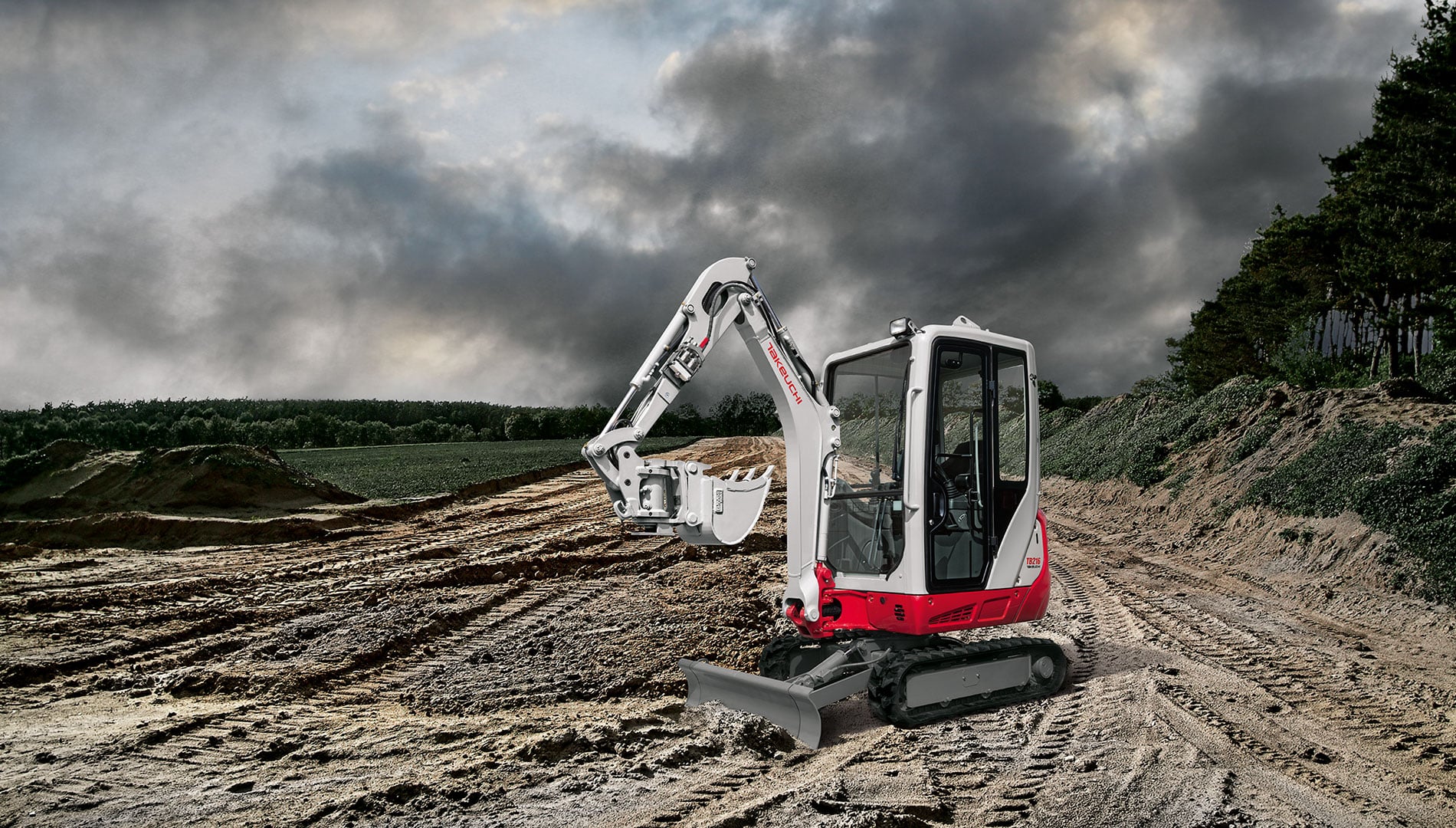

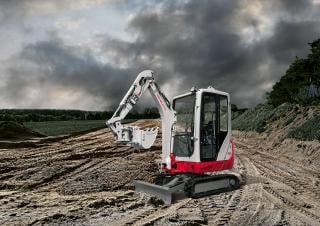

Takeuchi TB 216 S is a mini excavator manufactured since 2013. It has a weight of 1.7 tons, a track width of 230 mm, a transport w…

Takeuchi TB 216 S is a mini excavator manufactured since 2013. It has a weight of 1.7 tons, a track width of 230 mm, a transport width of 0.98 meters, and a transport height of 2.36 meters. The dredging depth is 2.39 meters, and the bucket capacity is 0.04 cubic meters. Special equipment includes a blade, rubber track, and track adjustment.

Mini Excavators Takeuchi TB 216 S

Technical specs - TB 216 S Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.7 t
Transport width
0.98 m
Transport height
2.36 m
Bucket capacity
0.04 m³
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
4.03 m
Dredging depth
2.39 m
Model series
TB
Engine manuf.
Yanmar
Engine type
3TNV70
Engine power
11.5 kW
Displacement
0.85 l
Revolutions at max torque
2400 rpm

More technical details, like: transport length, bucket capacity min., bucket capacity max., bucket width, standard tyres, tear-out force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Takeuchi TB 216 S FAQ

When was the Takeuchi TB 216 S manufactured?

The Takeuchi TB 216 S was first produced in 2013.

How much does the Takeuchi TB 216 S weigh?

The Takeuchi TB 216 S weighs 1.7 tons.

What are the transport dimensions of the Takeuchi TB 216 S mini excavator?

The Takeuchi TB 216 S has a transport width of 0.98 meters and a transport height of 2.36 meters.

What is the track width of the Takeuchi TB 216 S mini excavator?

The Takeuchi TB 216 S mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Takeuchi TB 216 S mini excavator?

The Takeuchi TB 216 S has a dredging depth of 2.39 meters and a maximum horizontal reach of 4.03 meters.

What is the bucket capacity of the Takeuchi TB 216 S mini excavator?

The Takeuchi TB 216 S mini excavator has a bucket capacity of 0.04 cubic meters.

What operator safety feature does the Takeuchi TB 216 S have?

The Takeuchi TB 216 S has a canopy for driver protection.

How much is a Takeuchi TB 216 S Mini excavator (2013u20132025) worth?

The residual value of the Takeuchi TB 216 S depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Takeuchi TB 216 S overview

Hydraulics

Two-Speed Travel
The TB216 has a wide range of features to facilitate any task. Standard equipment includes an improved multi-information display, two-speed travel, pilot operated joystick controls, high capacity cooling The boom is equipped with a top boom cylinder and the hydraulic installation is well protected inside the boom and arm.
side of the floor. An optional pattern change valve is
Auxiliary hydraulics and boom pivot are controlled conveniently positioned in the seat base with the foot pedals left and right. The TB216 is robust, reliable and productive. It offers exceptional value and boasts outstanding performance.

Environment

policy of continued improvement, specifications and features are subject to change without
▲ 2019 Takeuchi MFG. Co., Ltd. All Rights Reserved. According to our established notice. Pictures may show options other than standard equipment.

Dimensions and weight

OPERATING PERFORMANCESerial No. Serial No. 216000002 or 216100002 or later later
Operating Weight - Cab1865 kg N/A"
Operating Weight - Canopy1770 kg"
Bucket Capacity (Heaped)0.038m³
Slew Speed9.2 min-1
Travel Speed
1st2.2 km/h
2nd4.2 km/h
Gradeability15°
Ground Pressure - Cab31.0 kPa N/A
Ground Pressure - Canopy29.4 kPa
Maximum Bucket Breakout Force14 kN
Maximum Arm Digging Force (930 mm Arm)9.5 kN
Maximum Arm Digging Force (1030 mm Arm)"8.2 kN
Traction Force19.4 kN
Boom Swing Angle (Left/Right)80° / 50°
MACHINE DIMENSIONS930 mm Arm1130 mm Arm"
A,Maximum Reach,"3,900 mm4,090 mm"
B,Maximum Reach at Ground Level,"3,845 mm4,035 mm"
C,Maximum Digging Depth,"2,190 mm2,390 mm"
D,Maximum Vertical Digging Depth,"1,870 mm2,060 mm"
E,Maximum Height of Cutting Edge,"3,590 mm3,740 mm"
F,Maximum Dumping Height,"2,550 mm2,705 mm"
G,Front Swing Radius,"1,435 mm1,480 mm"
H,Front Swing Radius with Boom Offset,"1,120 mm1,155 mm"
JSlew Radius1075 mm"
K,Overall Length,"3,875 mm3,870 mm"
LOverall Height (Cab / Canopy)2360 mm / 2280"mm
MUpper Structure Overall Width (Cab / Canopy)1055 mm / 985"mm
NGround Clearance205 mm
OCrawler Base1155 mm"
PCrawler Overall Length1520 mm"
QCrawler Overall Width - Crawler Retracted980 mm
Q’Crawler Overall Width - Crawler Extended1300 mm"
RCrawler Shoe Width230 mm

Tables

HYDRAULIC SYSTEMSerial No. Serial No. 216000002 or 216100002 or later later
P1 P2"Variable Displacement Pump
Flow Rate16.8 L/min
Relief Pressure21.0 MPa
P3Gear Pump
Flow Rate10.8 L/min
Relief Pressure20.0 MPa
Service Port 1
Flow Rate33.6 L/min
Hydraulic Pressure21.0 MPa
Service Port 2
Flow Rate10.8 L/min
Hydraulic Pressure20.0 MPa
Service Port 3
Hydraulic Pressure20.0 MPa
SAFETY and HEALTH
Vibration Levels
Hand / Arm< 2.5 m/s² =
Body< 0.5 m/s² =
Noise Level
Sound Power LevelLwA 93 dB
Displacement854 ml 993 ml
Alternator12 V - 0.48 kW
Battery (IEC 60095-1)12 V - 45 A h .
FLUID CAPACITY
Engine Lubrication2.8 L
Cooling System3.8 L
Fuel Tank Capacity22.0 L
Hydraulic Reservoir Capacity16.0 L
Hydraulic System Capacity24.5 L
