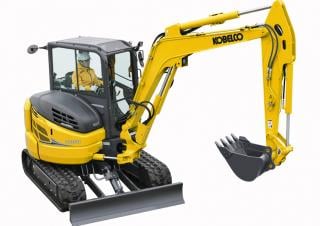

SK 55 SRX 7 Kobelco excavator specs & dimensions (2022 - 2026)

Kobelco SK 55 SRX 7 is a mini excavator manufactured since 2022, with a weight of 5.51 tons. It features a track width of 400 mm, …

Kobelco SK 55 SRX 7 is a mini excavator manufactured since 2022, with a weight of 5.51 tons. It features a track width of 400 mm, a transport length of 5.28 meters, a transport width of 1.96 meters, and a transport height of 2.56 meters. The machine has a tear-out force of 54.3 kN, a dredging depth of 3.89 meters, and a maximum horizontal reach of 5.85 meters. The bucket width is 0.6 meters with a capacity of 0.14 cubic meters. Special equipment includes air conditioning, a blade, and rubber tracks.

Mini Excavators Kobelco SK 55 SRX 7

Visit Kobelco live at

Technical specs - SK 55 SRX 7 Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.51 t
Transport length
5.28 m
Transport width
1.96 m
Transport height
2.56 m
Bucket capacity
0.14 m³
Bucket width
0.6 m
Track width
400 mm
Max. Reach horizontal
5.85 m
Dredging depth
3.89 m
Tear-out force
54.3 kN
Model series
SK
Engine manuf.
Yanmar
Engine type
4TNV88C-PYBD
Engine power
27.7 kW
Displacement
2.198 l
Revolutions at max torque
2400 rpm
Max. torque
136.8 Nm
No. of cylinders
4
Emission level
Tier 4 Final

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, driver protection, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kobelco SK 55 SRX 7 FAQ

When was the Kobelco SK 55 SRX 7 manufactured?

The Kobelco SK 55 SRX 7 was first produced in 2022.

How much does the Kobelco SK 55 SRX 7 weigh?

The Kobelco SK 55 SRX 7 weighs 5.51 tons.

What are the transport dimensions of the Kobelco SK 55 SRX 7 mini excavator?

The Kobelco SK 55 SRX 7 has a transport length of 5.28 meters, a transport width of 1.96 meters, and a transport height of 2.56 meters.

What is the track width of the Kobelco SK 55 SRX 7 mini excavator?

The Kobelco SK 55 SRX 7 mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Kobelco SK 55 SRX 7 mini excavator?

The Kobelco SK 55 SRX 7 has a dredging depth of 3.89 meters and a maximum horizontal reach of 5.85 meters.

What is the tear-out force of the Kobelco SK 55 SRX 7?

The Kobelco SK 55 SRX 7 has a tear-out force of 54.3 kN.

What are the bucket specifications of the Kobelco SK 55 SRX 7 mini excavator?

The Kobelco SK 55 SRX 7 has a bucket capacity of 0.14 cubic meters and a bucket width of 0.6 meters.

How much is a Kobelco SK 55 SRX 7 Mini excavator (2022u20132025) worth?

The residual value of the Kobelco SK 55 SRX 7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
