SK 55 SRX 6E Kobelco excavator specs & dimensions (2020 - 2021)

Kobelco SK 55 SRX 6E is a mini excavator manufactured from 2020 to 2021. It has a weight of 5.06 tons and a track width of 400 mm.…

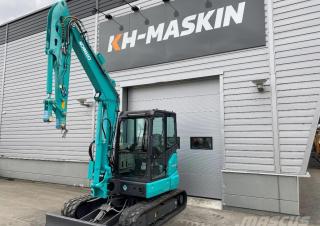

Kobelco SK 55 SRX 6E is a mini excavator manufactured from 2020 to 2021. It has a weight of 5.06 tons and a track width of 400 mm. The transport dimensions are 5.55 meters in length, 1.96 meters in width, and 2.53 meters in height. The machine features a tear-out force of 24.6 kN, a dredging depth of 4.12 meters, and a maximum horizontal reach of 6.46 meters. The bucket capacity is 0.16 cubic meters. Special equipment includes air conditioning, a blade, a hydraulic quick hitch, and rubber tracks.

Mini Excavators Kobelco SK 55 SRX 6E

Visit Kobelco live at

Technical specs - SK 55 SRX 6E Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.06 t
Transport length
5.55 m
Transport width
1.96 m
Transport height
2.53 m
Bucket capacity
0.16 m³
Track width
400 mm
Driver protection
KbR
Max. Reach horizontal
6.46 m
Dredging depth
4.12 m
Tear-out force
24.6 kN
Engine manuf.
Yanmar
Engine type
4TNV88-C-PYBV
Engine power
29.1 kW
Displacement
2.189 l
Revolutions at max torque
1560 rpm
Max. torque
133.3 Nm
No. of cylinders
4
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Kobelco SK 55 SRX 6E FAQ

When was the Kobelco SK 55 SRX 6E manufactured?

The Kobelco SK 55 SRX 6E was manufactured from 2020 to 2021.

How much does the Kobelco SK 55 SRX 6E weigh?

The Kobelco SK 55 SRX 6E weighs 5.06 tons.

What are the transport dimensions of the Kobelco SK 55 SRX 6E mini excavator?

The Kobelco SK 55 SRX 6E has a transport length of 5.55 meters, a transport width of 1.96 meters, and a transport height of 2.53 meters.

What is the track width of the Kobelco SK 55 SRX 6E's undercarriage?

The Kobelco SK 55 SRX 6E has a track width of 400 mm.

What are the excavation performance specifications of the Kobelco SK 55 SRX 6E?

The Kobelco SK 55 SRX 6E has a dredging depth of 4.12 meters and a maximum horizontal reach of 6.46 meters.

What power ratings are available for the Kobelco SK 55 SRX 6E mini excavator?

No power ratings are provided for the Kobelco SK 55 SRX 6E mini excavator in the available data.

What is the bucket capacity of the Kobelco SK 55 SRX 6E mini excavator?

The Kobelco SK 55 SRX 6E mini excavator has a bucket capacity of 0.16 cubic meters.

What operator safety and support features does the Kobelco SK 55 SRX 6E have?

The Kobelco SK 55 SRX 6E is equipped with a cabin that includes ROPS for driver protection.

How much is a Kobelco SK 55 SRX 6E Mini excavator (2020u20132021) worth?

The residual value of the Kobelco SK 55 SRX 6E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
