SK 25 SR 2 Kobelco excavator specs & dimensions (2003 - 2004)

Model rating
6,25 / 10

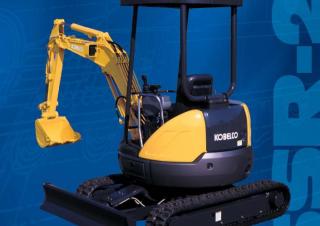

Kobelco SK 25 SR 2 is a mini excavator manufactured from 2003 to 2004. It has a weight of 2.53 tons and a track width of 250 mm. T…

Kobelco SK 25 SR 2 is a mini excavator manufactured from 2003 to 2004. It has a weight of 2.53 tons and a track width of 250 mm. The transport dimensions are 4.17 meters in length, 1.5 meters in width, and 2.4 meters in height. The bucket capacity ranges from a minimum of 0.0396 cubic meters to a maximum of 0.085 cubic meters. This model is equipped with a blade and rubber tracks.

Mini Excavators Kobelco SK 25 SR 2

Visit Kobelco live at

Technical specs - SK 25 SR 2 Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.53 t
Transport length
4.17 m
Transport width
1.5 m
Transport height
2.4 m
Bucket capacity min.
0.0396 m³
Bucket capacity max.
0.085 m³
Track width
250 mm
Driver protection
FD
Max. Reach horizontal
4.08 m
Dredging depth
2.59 m
Tear-out force
20.8 kN
Engine manuf.
Yanmar
Engine type
3TNE74N
Engine power
13.2 kW

More technical details, like: bucket capacity, bucket width, standard tyres, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kobelco SK 25 SR 2 FAQ

When was the Kobelco SK 25 SR 2 manufactured?

The Kobelco SK 25 SR 2 was manufactured from 2003 to 2004.

How much does the Kobelco SK 25 SR 2 weigh?

The Kobelco SK 25 SR 2 weighs 2.53 tons.

What are the transport dimensions of the Kobelco SK 25 SR 2 mini excavator?

The Kobelco SK 25 SR 2 has a transport length of 4.17 meters, a transport width of 1.5 meters, and a transport height of 2.4 meters.

What is the track width of the Kobelco SK 25 SR 2 mini excavator?

The Kobelco SK 25 SR 2 mini excavator has a track width of 250 mm.

What are the excavation performance specifications of the Kobelco SK 25 SR 2 mini excavator?

The Kobelco SK 25 SR 2 has a dredging depth of 2.59 meters and a maximum horizontal reach of 4.08 meters.

What power ratings are available for the Kobelco SK 25 SR 2 mini excavator?

There are no power ratings available for the Kobelco SK 25 SR 2 mini excavator in the provided data.

What are the bucket capacity specifications of the Kobelco SK 25 SR 2 mini excavator?

The Kobelco SK 25 SR 2 has a bucket capacity ranging from 0.04 to 0.09 cubic meters.

What driver protection feature does the Kobelco SK 25 SR 2 have?

The Kobelco SK 25 SR 2 has driver protection in the form of a canopy.

How much is a Kobelco SK 25 SR 2 Mini excavator (2003u20132004) worth?

The residual value of the Kobelco SK 25 SR 2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Kobelco SK 25 SR 2 overview

Dimensions and weight

ARM LENGTH3’9”(1.15 m)
AOverall length13’8”(4.17 m)
BOverall width4’11”(1.50 m)
COverall height (to top of canopy)7’10”(2.40 m)
DBasic machine length7’5”(2.27 m)
EGround clearance of rear end*1’7”(.48 m)
FCenter distance of tumblers4’11”(1.50 m)
GOverall length of crawler6’2”(1.88 m)
HTrack guage4’1”(1.25 m)
IWidth of crawler shoe (rubber)9.8”(.25 m)
JGround clearance of undercarriage9.4”(.24 m)
KTail swing radius2’5”(.75 m)
LTail swing overhang (not shown)0’0”(0 m)
ATTACHMENT3’9” 3’9”(1.15 m) (1.15 m)
aMax digging reach15’3”(4.64 m)
bMax digging reach at ground level14’11”(4.54 m)
cMax digging depth*8’5”(2.56 m)
dMax digging height*13’5”(4.08 m)
eMax dumping clearance*9’8”(2.94 m)
fMin dumping clearance*3’7”(1.09 m)
gMax vertical wall digging depth*5’8”(1.72 m)
hMin front swing radius6’5”(1.96 m)
iHeight at min. front swing radius10’4”(3.16 m)
jHorizontal digging distance - stroke6’8”(2.04 m)
kHorizontal digging distance - min5’0”(1.52 m)

Tables

A B C25SR-2Arm: 3’9”(1.15 m)Bucket: 2.83 ft3 (0.08 m3)101 lb (46 kg)
5.0’ (1.5 m)7.5’ (2.3 m)10’ (3.0 m)12.5’ (3.8 m)
CHCHCH
10’lb*960*960
(3.0 m)kg*430*430
7.5’lb*990*990
( 2.3 m)kg*450*450
5’,lb,"*3,070*3,070*1,5601,530*1,170",960,"*1,010",660
(1.5 m),kg,"*1,390*1,390",*710,690,*530,430,*450,300
2.5’,lb,,,"*2,1301,410*1,390",910,"*1,080",640
(0.8 m)kg*960630*630410*490290
Ground,lb,"*1,950*1,950*2,3401,340*1,510",870,"*1,100",620
Levelkg*880*880*1060"610*680390*500280
-2.5’,lb,"*3,3602,740*2,1901,340*1,460",860,,
(-0.8 m),kg,"*1,5201,240",*990,600,*660,390,,
–5’,lb,"*2,760*2,760*1,7201,360",,,,
(–1.5 m),kg,"*1,250*1,250",*780,610,,,,
