SK 28 SR 7 Kobelco excavator specs & dimensions (2023 - 2026)

Weight: 3.08t – Transport length: 4.51m – Transport width: 1.55m – Transport height: 2.55m – Bucket capacity: 0.11m³ – Track width…

Weight: 3.08t – Transport length: 4.51m – Transport width: 1.55m – Transport height: 2.55m – Bucket capacity: 0.11m³ – Track width: 300mm

Check out detailed specifications, information and technical data for Kobelco SK 28 SR 7 excavator manufactured between 2023 - 2026. Get more in-depth insight with Kobelco SK 28 SR 7 digger specifications. See information, like: Weight: 3.08t – Transport length: 4.51m – Transport width: 1.55m – Transport height: 2.55m – Bucket capacity: 0.11m³ – Track width: 300mm and more.

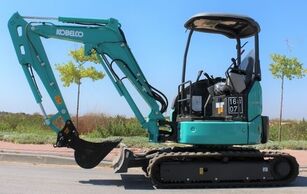

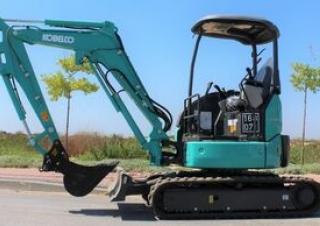

Mini Excavators Kobelco SK 28 SR 7

Visit Kobelco live at

Technical specs - SK 28 SR 7 Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.08 t
Transport length
4.51 m
Transport width
1.55 m
Transport height
2.55 m
Bucket capacity
0.11 m³
Track width
300 mm
Driver protection
Kb
Max. Reach horizontal
4.84 m
Dredging depth
2.59 m
Tear-out force
24.7 kN
Engine manuf.
Yanmar
Engine type
3TNV88
Engine power
18.9 kW
Displacement
1.642 l
Revolutions at max torque
1440 rpm
Max. torque
88 Nm
No. of cylinders
3
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Kobelco SK 28 SR 7 FAQ

When was the Kobelco SK28 SR 7 manufactured?

The Kobelco SK28 SR 7 was first produced in 2023.

How much does the Kobelco SK28 SR 7 weigh?

The Kobelco SK28 SR 7 weighs 3.08 tons.

What are the transport dimensions of the Kobelco SK28 SR 7 mini excavator?

The Kobelco SK28 SR 7 has a transport length of 4.51 meters, a width of 1.55 meters, and a height of 2.55 meters.

What is the track width of the Kobelco SK28 SR 7's undercarriage?

The Kobelco SK28 SR 7 has a track width of 300 mm.

What are the excavation performance specifications of the Kobelco SK28 SR 7 mini excavator?

The Kobelco SK28 SR 7 mini excavator has a dredging depth of 2.59 meters and a maximum horizontal reach of 4.84 meters.

What is the tear-out force of the Kobelco SK28 SR 7 mini excavator?

The Kobelco SK28 SR 7 has a tear-out force of 16.6 kN.

What is the bucket capacity of the Kobelco SK28 SR 7 mini excavator?

The Kobelco SK28 SR 7 mini excavator has a bucket capacity of 0.11 cubic meters.

What operator safety and support features does the Kobelco SK28 SR 7 have?

The Kobelco SK28 SR 7 provides operator safety through a protective cabin.

How much is a Kobelco SK28 SR 7 Mini excavator (2023u20132025) worth?

The residual value of the Kobelco SK28 SR 7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
