SK 10 SR 3 Kobelco excavator specs & dimensions (2015 - 2017)

Kobelco SK 10 SR 3 is a mini excavator manufactured from 2015 to 2017, with a weight of 1.14 t. It features a track width of 180 m…

Kobelco SK 10 SR 3 is a mini excavator manufactured from 2015 to 2017, with a weight of 1.14 t. It features a track width of 180 mm, a transport length of 3.04 m, a transport width of 0.83 m, and a transport height of 1.42 m. The machine has a tear-out force of 5.6 kN, a dredging depth of 1.95 m, and a maximum horizontal reach of 3.35 m. The bucket capacity is a minimum of 0.028 m³. Special equipment includes a blade, rubber track, and track adjustment.

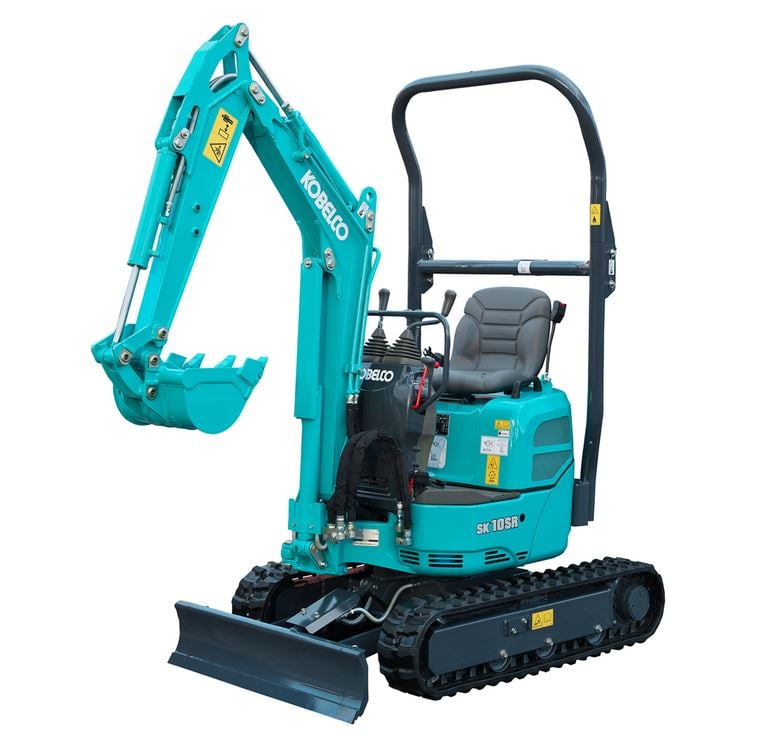

Mini Excavators Kobelco SK 10 SR 3

Visit Kobelco live at

Technical specs - SK 10 SR 3 Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.14 t
Transport length
3.04 m
Transport width
0.83 m
Transport height
1.42 m
Bucket capacity min.
0.028 m³
Track width
180 mm
Driver protection
Ü
Max. Reach horizontal
3.35 m
Dredging depth
1.95 m
Tear-out force
5.6 kN
Engine manuf.
Yanmar
Engine type
3TNV70
Engine power
9.5 kW
Displacement
0.854 l
Revolutions at max torque
1500 rpm
Max. torque
50.5 Nm
No. of cylinders
3
Cylinder bore x stroke
70 x 74 mm
Emission level
3A

More technical details, like: bucket capacity, bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kobelco SK 10 SR 3 FAQ

When was the Kobelco SK 10 SR 3 manufactured?

The Kobelco SK 10 SR 3 was manufactured from 2015 to 2017.

How much does the Kobelco SK 10 SR 3 weigh?

The Kobelco SK 10 SR 3 weighs 1.14 tons.

What are the transport dimensions of the Kobelco SK 10 SR 3 mini excavator?

The Kobelco SK 10 SR 3 has a transport length of 3.04 meters, a transport width of 0.83 meters, and a transport height of 1.42 meters.

What is the track width of the Kobelco SK 10 SR 3 mini excavator?

The Kobelco SK 10 SR 3 mini excavator has a track width of 180 mm.

What are the excavation performance specifications of the Kobelco SK 10 SR 3 mini excavator?

The Kobelco SK 10 SR 3 mini excavator has a dredging depth of 1.95 meters and a maximum horizontal reach of 3.35 meters.

What is the tear-out force of the Kobelco SK 10 SR 3 mini excavator?

The Kobelco SK 10 SR 3 mini excavator has a tear-out force of 5.6 kN.

What is the minimum bucket capacity of the Kobelco SK 10 SR 3 mini excavator?

The minimum bucket capacity of the Kobelco SK 10 SR 3 mini excavator is 0.03 cubic meters.

What operator safety features does the Kobelco SK 10 SR 3 have?

The Kobelco SK 10 SR 3 is equipped with a roll-over bar for driver protection.

How much is a Kobelco SK 10 SR 3 Mini excavator (2015u20132017) worth?

The residual value of the Kobelco SK 10 SR 3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Kobelco SK 10 SR 3 overview

Kobelco SK 10 SR 3 features overview

The combination of side-ditch digging function and short tail radius makes it easy to dig next to walls with a compact operating footprint.
Final overhang: 150mm (roller bar overhang) Compact upper body without front overhang

Dimensions and weight

Drawbar Pulling Force kN8.3Unnamed: 0Unnamed: 1Unnamed: 2Unnamed: 3
Bucket Digging Force kN13.7d
Arm Crowding Force kN5.6
WEIGHT
Machine Mass kg1145"
Ground Pressure kPa25.3
fShoe TypeRubberi
ENGINE
ModelYanmar 3TNV70-WBVB
TypeWater-cooled 4-cycle 3-cylinder"g
Power Output NET (ISO 9249) kW/min-1(rpm)9.2/2000"c
Max. Torque NET (ISO 9249) N•m/min-1(rpm)50.1/1500"
Displacement L0.854
Fuel Tank L12
HYDRAULIC SYSTEM
PumpTwo variable displacement pumpsUni
Max. Discharge Flow L/min2 x 11MODELSK10SR
Relief Valve Setting MPa20.6a- Max. digging reach3350"
Hydraulic Oil Tank (system) L7.4 (14.3)b- Max. digging reach at ground level3270"
DOZER BLADEc- Max. digging depth1950"
Width x Height mm830/1000 x 210"d- Max. digging height3150"
Working Ranges (height/depth) mm210/230e- Max. dumping clearance2370"
SIDE DIGGING MECHANISMf- Min. dumping clearance730
TypeBoom swingg- Max. vertical wall digging depth1650"

Tables

Unnamed: 0Unnamed: 12.0 m kg——.1*185*185.1*190*185.2*185.3*185.42.55 m
BRating over side or 360 degrees1.5 m kg——*205205*2051551601252.80 m
1.0 m kg*365380*2652001801451451152.85 m
2.90 mA: Reach from swing centerline to arm top0.5 m kg355305230195170145130110
SK10SRBucket: without Shoe: 180 mm
A1.5 m2.0 m2.5 mAt Max. ReachRadius
B
2.0 mkg——*185*185*190*185*185*1852.55 m
1.5 mkg——*205205*2051551601252.80 m
1.0 mkg*365380*2652001801451451152.85 m
0.5 mkg3553052301951701451301102.90 m
G. L.kg3352702301851751351401152.80 m
-0.5 mkg3302602151751651401551252.70 m
Unit: mm
MODELSK10SR
a- Max. digging reach3350"
b- Max. digging reach at ground level3270"
c- Max. digging depth1950"
d- Max. digging height3150"
e- Max. dumping clearance2370"
f- Min. dumping clearance730
g- Max. vertical wall digging depth1650"
h- Min. swing radius1330 (1080)"
i- Dozer blade (height/depth)210/230
MODELSK10SR
TypeSK10SR-3
PERFORMANCE
Bucket Capacitym30.028
Travel Speedkm/h2.1
Swing Speedmin-1{rpm}10.0
Gradeability%(degree)47 (30)
Drawbar Pulling ForcekN8.3
Bucket Digging ForcekN13.7
Arm Crowding ForcekN5.6
WEIGHT
Machine Masskg1145"
Ground PressurekPa25.3
Shoe TypeRubber
ENGINE
