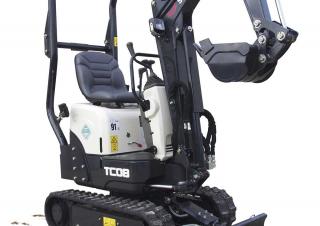

TC 08 Schaeff excavator specs & dimensions (2017 - 2020)

Schaeff TC 08 is a Mini Excavator manufactured from 2017 to 2020, with a weight of 1.03 t and a track width of 180 mm. It has a tr…

Schaeff TC 08 is a Mini Excavator manufactured from 2017 to 2020, with a weight of 1.03 t and a track width of 180 mm. It has a transport length of 2.6 m, a transport width of 0.73 m, and a transport height of 1.55 m. The machine features a tear-out force of 5.9 kN, a dredging depth of 1.5 m, and a maximum horizontal reach of 2.73 m. The bucket width is 0.3 m, with a bucket capacity ranging from 0.01 m³ to 0.08 m³. Special equipment includes a blade, rubber track, and track adjustment.

Mini Excavators Schaeff TC 08

Technical specs - TC 08 Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.03 t
Transport length
2.6 m
Transport width
0.73 m
Transport height
1.55 m
Bucket capacity min.
0.01 m³
Bucket capacity max.
0.08 m³
Bucket width
0.3 m
Track width
180 mm
Driver protection
Ü
Max. Reach horizontal
2.73 m
Dredging depth
1.5 m
Tear-out force
5.9 kN
Engine manuf.
Yanmar
Engine type
2TE67L-BV3
Engine power
7.7 kW
Displacement
0.507 l
Revolutions at max torque
2000 rpm
Max. torque
31.5/2000 Nm
No. of cylinders
2
Emission level
Tier2

More technical details, like: bucket capacity, standard tyres, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Schaeff TC 08 FAQ

When was the Schaeff TC 08 manufactured?

The Schaeff TC 08 was manufactured from 2017 to 2020.

How much does the Schaeff TC 08 weigh?

The Schaeff TC 08 weighs 1.03 tons.

What are the transport dimensions of the Schaeff TC 08 mini excavator?

The Schaeff TC 08 has a transport length of 2.6 meters, a transport width of 0.73 meters, and a transport height of 1.55 meters.

What is the track width of the Schaeff TC 08 mini excavator's undercarriage?

The Schaeff TC 08 mini excavator has a track width of 180 mm.

What are the excavation performance specifications of the Schaeff TC 08 mini excavator?

The Schaeff TC 08 mini excavator has a dredging depth of 1.5 meters and a maximum horizontal reach of 2.73 meters.

What power rating information is available for the Schaeff TC 08 mini excavator?

There is no power rating information available for the Schaeff TC 08 mini excavator in the provided data.

What are the bucket specifications of the Schaeff TC 08 mini excavator?

The Schaeff TC 08 mini excavator has a bucket width of 0.3 meters, with a bucket capacity ranging from 0.01 to 0.08 cubic meters.

What operator safety and support features does the Schaeff TC 08 have?

The Schaeff TC 08 is equipped with a roll-over bar for driver protection.

How much is a Schaeff TC 08 Mini excavator (2017u20132020) worth?

The residual value of the Schaeff TC 08 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Schaeff TC 08 overview

Dimensions and weight

Bucket hinge heightLoad radius from centre of ring gear
Dipperstick 670 mmMin1.5 m2.0 mMax
URUEURUEURUEURUEURUEURUEURUEURUE
2.0 m 1.5 m––––––––––––220*220*120160
––––––––––––190190120160
––––270*270*160220220*220*100140220*220*90120
––––240*240*16020019019010014015015090130
1.0 m490*490*200270350*350*160200260*260*100150230*230*80110
34034019028025025015021017017010014013013080110
-0.5 m590*590*180240470*470*150200300*300*100130240*240*80110
31031017023025025014020017017010017013013070110
0.0 m630*630*180250480*480*160200320*320*100130240*240*80110
3103101602402302301401901701709014012012080110
-0.5 m––––430*430*140200380*380*100130260*260*100130
––––2502501402001701709013016016090130
-1.0 m––––––––––––230*230*170230*
––––––––––––230*230*150210*
Width (outside edge of crawler chains)680 - 840 mm
Width rubber tracks180 mm
Total length (undercarriage)1220 mm
Transport weight (with 2 support members foldable)"960 kg
Operating weight (with 2 support members foldable) acc. to ISO 6016"1035 kg
Total length (travel position)2030 mm
Total length (trailer transport position)2600 mm
Total height (travel position)2200 mm
Total height (trailer transport position)1550 mm
Total width680 / 840 mm
Uppercarriage tailswing725 mm
Uppercarriage frontswing980 mm
Working envelope 180° / 360°1705 / 1960 mm
Rear overhang305 mm
Ground clearance130 mm
Bucket digging force (ISO 6015)9 955 N
Stick digging force (ISO 6015)5 885 N
Ground pressure (rubber crawlers)0.28 daN/cm2
HYDRAULIC SYSTEM
Pump capacity2 x 9.8 l/min
Working pressure185 bar
Working hydraulics: Dual fixed displacement pump for swinging and travel drive. Simultaneous indepen- dent control of all movements.
Control circuit for work attachments (single or dual-action):
Pump capacity19.5 ~17.5 l/min

Tables

Hydrostatic travel drive fully enclosed."
Travel speed forward and reverse"0-1.8 km/h
Gradeability30 deg. max
Width x height680 - 840 x 180 mm
Dozer cut below ground210 mm
Dozer lift above ground180 mm
Combustion4-stroke swirl chamber injection"
Displacement507 cm3
Power rating acc. to DIN 6270B at 2000 min-17.7 kW (10.5 hp)
Torque max. @ 2000 rpm31.5 Nm
Cooling systemWater
ELECTRICAL SYSTEM
